Module Size:
192mm*96mm
Max Power:
20W
Module Weight:
0.4kg
Optimal Viewing Distance:
5m~50m
Cabinet Size:
768mm*768mm
Module Resolution:
32dots(W)*16dots(H)
Module Thickness:
2.7cm
Brightness:
7000CD/M2
Control Mode:
Synchronization with PC
Warrary:
2 Years
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
350W / m²
Scanning Mode:
1/8 Scan
Display Type:
LED Video Display
Application:
Advertising
Certification:
FCC
Pixel Pitch:
6mm
Pixel Density:
27777dots/M2
Product Description

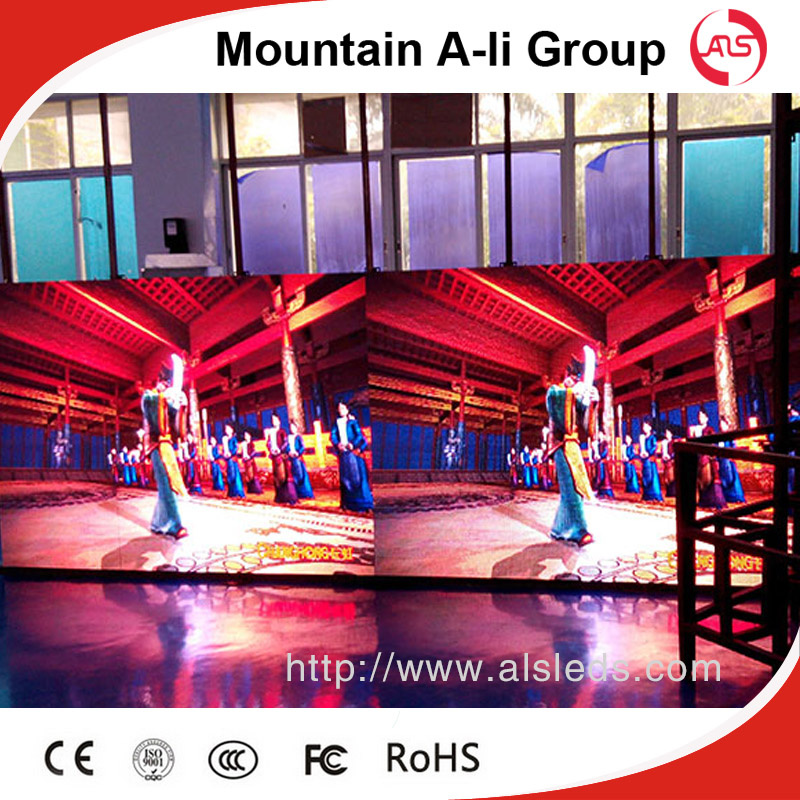

The Technical Parameters of Outdoor p6 led screen Dip 3 in 1
Item
Parameter
Product model

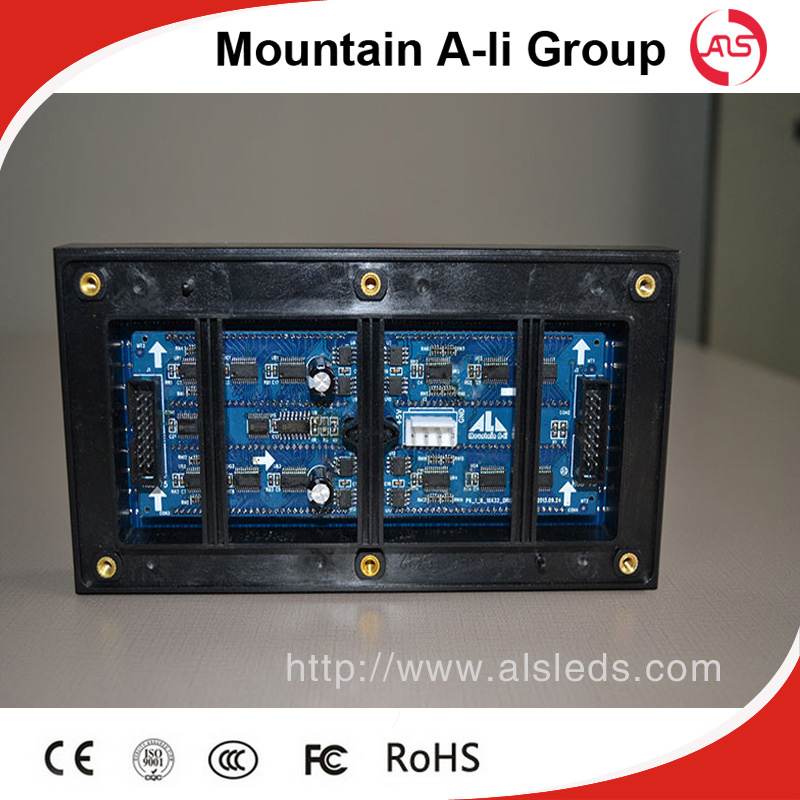

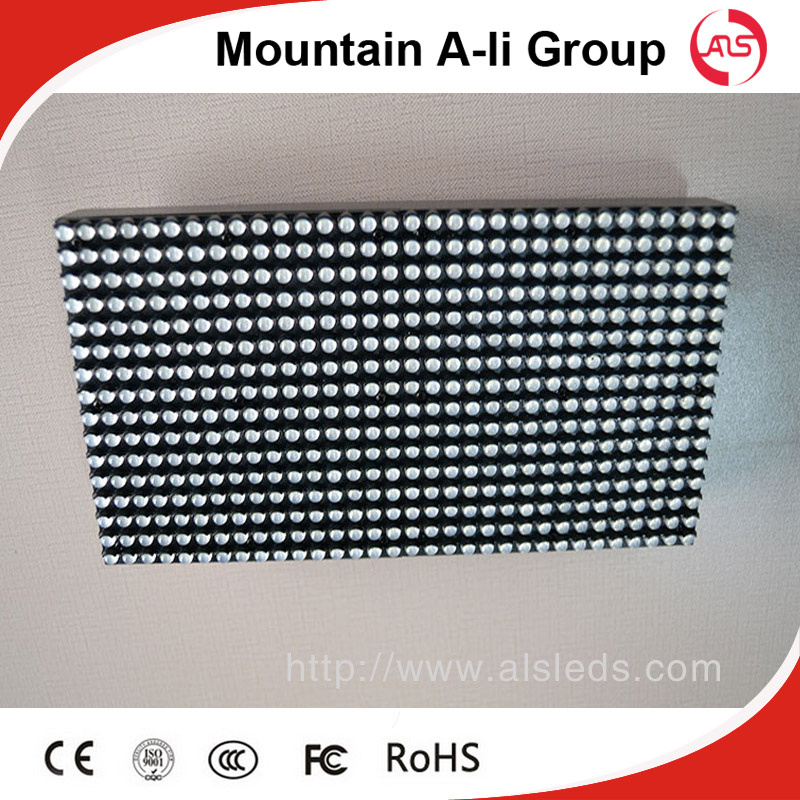

P6 Full Color Led Module
Module size
192mm*96mm
Pixel pitch
6mm
Pixel density
27777dots/m2
Pixel configuration
1R1G1B 3 in 1
Module resolution
32dots(W)*16dots(H)
Maximum power consumption
20W
Module thickness
2.7cm
Module weight
0.4kg
Driving method
Constant current driving
Scan mode
1/8 scan
Interface type
HUB75B
Brightness
≥7000cd/m2
The specifications of cabinet
Cabinet size
768mm x 768mm
Module quantity
32pcs
Power supply
5V/40A 5V/60A
Cabinet resolution
128*128dots
Optimal viewing distance
5m~50m
Optimal viewing angle
160°(W) 120°(H)
Temperature
Storage:-35ºC~+85ºC Working:-20ºC~+50ºC
System operating humility
10%-95%
The specifications of power supply
Operating voltage
AC220V±10%
Average power consumption
350W/H
Maximum power consumption
≤600W/
Current
≤20mA(single LED)
The specifications of control system
Computer
Pentium4 or above
Operating system
WIN98/2000/NT/XP
Control model
Synchronization with PC
The specifications of the main technical parameters
Driving device
Constant current driving
Refresh rate
≥600Hz
Grey scale
RGB each 256 grade, can display 16.7M colors)
MTBF
≥9000hours
Power switch
Automatic switch
Display mode
800*600/1024*768/1280*900
