| Prod Model: |
P6 outdoor |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
P6 Outdoor Advertising LED Display |
| Cabinet Size: |
960*960mm (Can Be Customized) |
| Cabinet Weight: |
55kg/Sqm |
| Brightness: |
>6000CD/Sqm |
| Refresh Rate: |
>2000Hz/S |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
300W / m² |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Pixel Pitch: |
6mm |
| Pixel Density: |
27777 Dots/Sqm |
Product Description

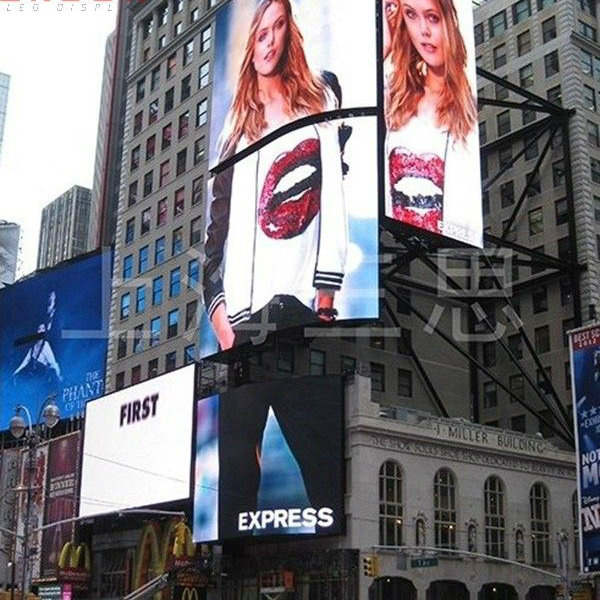

P6 outdoor Advertising LED Display for Shopping Mall
Description:
As the price is decreasing, high definition outdoor LED screen is becoming more and more popular in the market .P6 resolution is 27777 pixels per square meters , can show very clear commercial commercial advertisement. It helps you win more opportunities to get clients to advertise their goods on your LED screen when they see information on it is so attractive .
Features:
Highest definition , 27777 pixels /m2 . Definition is more than twice as P10
SMD3535 LED can ensure wide viewing angle , 140 degree vertically and horizontally .
Our LED display has very good color uniformity ,audiences feel comfortable to see it .
IP65 rating , waterproof and dustproof
High color output , 16 bits
We have many designs for the panel ,iron cabinet ,aluminum cabinet and die-casting aluminum cabinet
Application:
Shopping mall , Parking Area ,Airport , Square etc.
Specifications:
Model | P6 SMD3535 outdoor LED advertising display |
| Pixel pitch | 6mm |
| Pixel density | 27777 dots /sqm |
| Module size(W*H) | 192 mm(width)*192 mm(height) |
| Module pixels(W*H) | 32 dots *32 dots |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1/8 scan |
| LED lamp type | Water-proof SMD2727 |
| Cabinet size(W*H*D) | 960mm*960mm or customized |
| Color scale | 65,536 degree |
| View angle(H/V) | 140/140 degree |
| Brightness (White balance) | about 6000cd/sqm. |
| Power consumption(one cabinet) | Max:1000W/sqm. Average:300W/sqm. |
| Inputting Voltage | 90-264 VAC, 47-63 HZ |
| Net weight | 50Kg/sqm (iron cabinet), 40Kg/sqm (Aluminum cabinet) |
| Operating temperature | -30°C----+60°C |
| Operating humidity | 10%-95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.5mm Juncture |
| Frame frequency | 25-60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km , multi mode fiber: 500m |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
| Protection grade | IP65 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
