Panel Size:
384mm*192mm
Cabinet Size:
768mm*768mm
Brightness:
1300CD
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Pitch:
6mm
Pixel Configuration:
1R,1G,1B
Pixel Density:
27,777 dots / m²
Scanning Mode:
1/16 Scan
System Operating Platform:
WIN2000
Display Type:
LED Video Display
Application:
Advertising
Certification:
CCC
IP Rating:
31
Product Description
P6 indoor full color led display 1. High refresh for P6 Advertising Led Display Screen 2. High resolution for Indoor P6 Led Display Screen 3. Competitive price and Top quality for P6 Led Display Screen 4. easily to install and disinstall for Elnor indoor full color led display screen 5. CE,ROHS,CCC, SGS,ISO9001
Specification
Technical Prameters
PROJECT
P6 indoor full color LED display board
Pixel pitch
6mm
Pixel density
27777 Pixels/sqm
Module size(W*H)
384 W(mm)
192 H(mm)
Module pixels(W*H)
64Pixels(W)
32 Pixels(H)
Pixel configuration
1Red 1Green 1Blue
Drive mode
constant current driving 1/8 scan
LED lamp type
SMD3528
Cabinet size(W*H*D)
768 W(mm)
768 H(mm)
Cabinet resolution
128Pixels(W)
128 Pixels(H)
Color scale
65,536 degree
View angle(H/V)
140/120 degree
Brightness (White balance)
≥1500cd/sqm.
Power consumption(one cabinet)
Max:1000W/sqm. Average:350W/sqm.
Operating Voltage
AC100V±10% or 220V ±10%; 50---60HZ
Net weight
39 Kg/M 2 for Iron cabinet
Operating temperature
-20°C----+50°C (Customized power supply:-45°C---+60°C)
Operating humidity
10%_95%RH
Life time
≥100,000hours
MTBF
5,000 hours
Whole Display Flatness
≤0.3mm Juncture
Frame frequency
>60 Hz/s
Refresh rate
≥1200Hz /s
Control distance
100m (without repeater), single mode fiber:20km, multi mode fiber: 500m
Power
110V/220V±15% 50--60Hz
LED control system
LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable

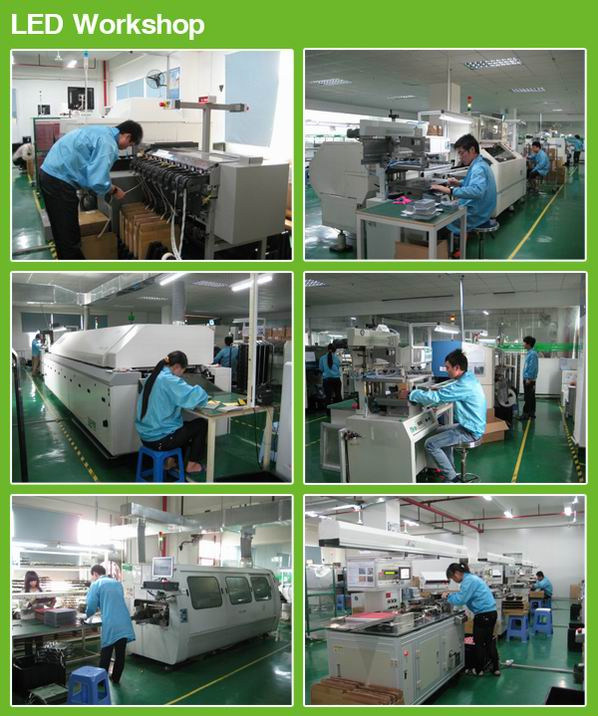

Quanzhou Jiacai Electronics Co., Ltd is a hi-tech company which is located in Fujian Quanzhou. Our factory is founded in 2006, coving an area of 175000 squar meters, with 35PCS producton lines for out door DIP modules, 6PCS production lines for indoor SMD products and more than 1600 skilled workers
Our RD team is composed by experienced experts, specialists and engineers, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients.
Our main products include indoor LED display, outdoor LED display, LED module, LED panel, rental and creative LED Solutions for various applications including sport, advertisement, concert, shopping mall, stadium, exhibition or any other indoor and outdoor events. All our products have passed CE, FCC and RoHS certificates. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 1 years warranty
