Pixel Resolution:
32dots(W)*16dots(H)
Package Mode:
SMD3528
Thermal Discharge:
Fan2PCS
Thickness:
85mm
Relative Humidity:
10%-95%
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Pitch:
6mm
Pixel Configuration:
1R,1G,1B
Pixel Density:
27,777 dots / m²
Scanning Mode:
1/4 Scan
System Operating Platform:
WIN XP
Display Type:
LED Video Display
Application:
Bank
Certification:
FCC, EMC, ISO9001: 2008
IP Rating:
IP65
Product Description
Our products: We specialize in producing and developing all kinds of led displays. As a reliable LED Display manufacturer and exporter in China, we supply Indoor led displays, Outdoor led displays, semi-outdoor led displays.Please kindly tell me which kind of the item you prefer to and provide me more information. It will help us to give you a good price. Product Features and advantages: .Energy saving design, good cooling system, high-definition, high cost, outstanding reliability and complete function by the majority of new and old customers favorite
.Ultra-high refresh rate,support the camera recorder, to ensure a clear picture quality
.Quick editing of assembly, disassembly system, saving unloading time
Remarks 1.Payment term: 30% T/T in advance and balance before delivery. 2.Delivery time: Within 15 working days after 30% advance payment. 3.Free training: You can send your engineers who have knowledge of electronics and information to our factory and we provide free technical training, which contains training operation and maintenance of the LED display at our factory. We also offer the instruction manual, software, test report, drawing steel structure and so on. 4.Installation: We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day;or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control. 5.Service after sales: If you have any questions about our product, you can inform us by mail or call, and we will reply you in 24 hours when we get you E-mail or call, and offer you a good solution for your problem.
Parameter

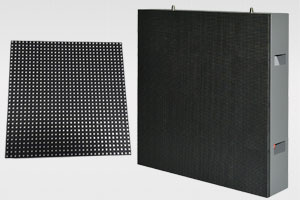

The specifications of modules
Items
Parameter
Model Number
ALS-P6-4S
ALS-P6-8S
Module size
192mm*96mm
Pixel pitch
6mm
Pixel density
27777dots/m2
Pixel configuration
1R1G1B
Module resolution
32dots(W)*16dots
Module maximum power consumption
15W
12W
Module Thickness
14.85mm(Without magnetic column)
27.15mm(magnetic column)
Module Weight
0.154kg
Driving method
Constant Drive
Scanning method
1/4scan
1/8scan
Interface
HUB75-A
Brightness
≥3000cd/m2
≥2200cd/m2
The specifications of cabinets
Cabinet size
576mm*576mm
Module quantity
18
Power supply
5V/40A *2pcs
Cabinet resolution
96mm*96mm
Optimal viewing distance
6M~40M
Optimal viewing angle
160°(W) 120°(H)
RHWorking temperature
(Work :-20°C~+50°C)
System operating humility
10%-95%
The specifications of power supplier
Operating Voltage
AC220V±10%
Average power consumption
270W/m2
220W/m2
Maximum power consumption
≤810W/m2
≤3650W/m2
Electric current
≤20mA(single LED)
The specifications of control card
Control Panels
Pentium4 or above
Operating system
WIN98/2000/NT/XP
Control model
Synchronization
The specifications of the main technical parameters
Driving device
Constant Current Driver IC
Refresh rate
≥400HZ
Grey scale
RGB level of each color(RGB)/16.7M colors
MTBF
≥9000hours
Power switch
Automatic Switch
Display Mode
800*600/1024*768

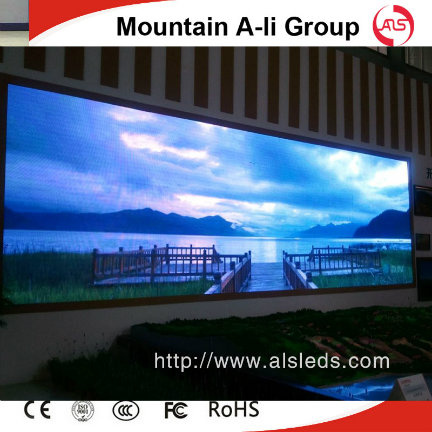

Project Picture
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
