| Prod Model: |
P6 SMD Indoor Display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package Mode: |
SMD3528 |
| Best Viewing Distance: |
6m-40m |
| Delivery: |
10-15 Working Days After Received Payment |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
6mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
27,777 dots / m² |
| Scanning Mode: |
1/8 Scan |
| System Operating Platform: |
WIN XP |
| Display Type: |
LED Video Display |
| Application: |
Stage Performance |
| Certification: |
FCC |
Product Description
Ultra-High-Definition Disply.
Ultra-High Refresh Rate.
P6 Indoor Full Color LED Display Screen Technical Parameters| Item | Parameter |
| Model | P6 indoor full color LED module |
| Module size | 192mm * 96mm |
| Pixel pitch | 6mm |
| Pixel density | 27777dots/m² |
| Pixel configuration | 1R1G1B |
| Module resolution | 32dots(W) * 16dots(H) |
| Max power consumption | 15W |
| Module thickness | 14.85mm |
| Module weight | 0.154KG |
| Driving method | Constant current driving |
| Scan method | 1/8 scan |
| Interface way | HUB75-A |
| Brightness | ≥3000cd/m² |
| Cabinet size | 576mm * 576mm |
| Power supply mode | 5V/40A*2pcs |
| Thermal discharge | Fan 2pcs |
| Optimal viewing distance | 6M - 40M |
| Optimal viewing angle | 160º(W) 120º(H) |
| Environment temperature | -20º ~ +50º |
| Relative humidity | 10% - 95% |
| Operating voltage | AC220V ± 10% |
| Average power | 270W/H |
| Max power consumption | ≤810W/m² |
| Control mode | Synchronization |
| Driving device | IC constant current driving |
| Refresh rate | ≥400HZ |
| Gray/Color | RGB each 256 grade,can display 16.7M color |
| MTBF | ≥9000hours |
| Power switch | Automatic switch |
Product Features.
Low energy consumption,long lifespan, less maintenance performance
No color difference,concentrating well, good viewing angle
Better waterproof, better radiation, better dust proof, good quality modules, under the same conditions,using two more yeares then SMD
High brightness, high refresh,the biggest advantage of a comprehensive reflection of outdoor HD LED display

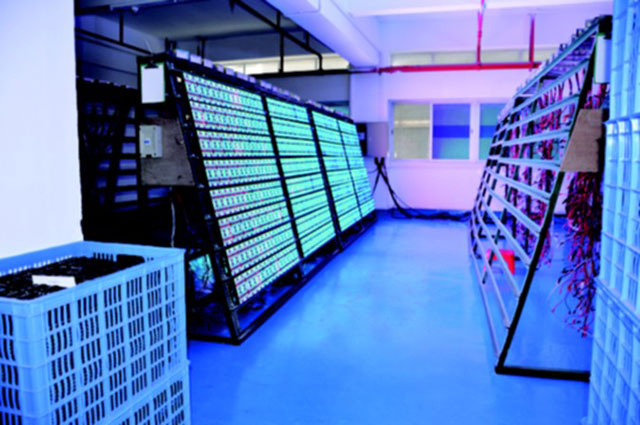

Simply installation, easy to maintain, easy to use.Module aging test.
Screen aging test.
