Cabinet Size:
500mm*500*60mm
Tube Chip Color:
Full Color
IP Rating:
IP65
Application:
Advertising
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
220W / m²
Display Type:
LED Wall
Pixel Pitch:
6.25mm
Scanning Mode:
1/10 Scan
Pixel Density:
25600 DOT /M2
Product Description

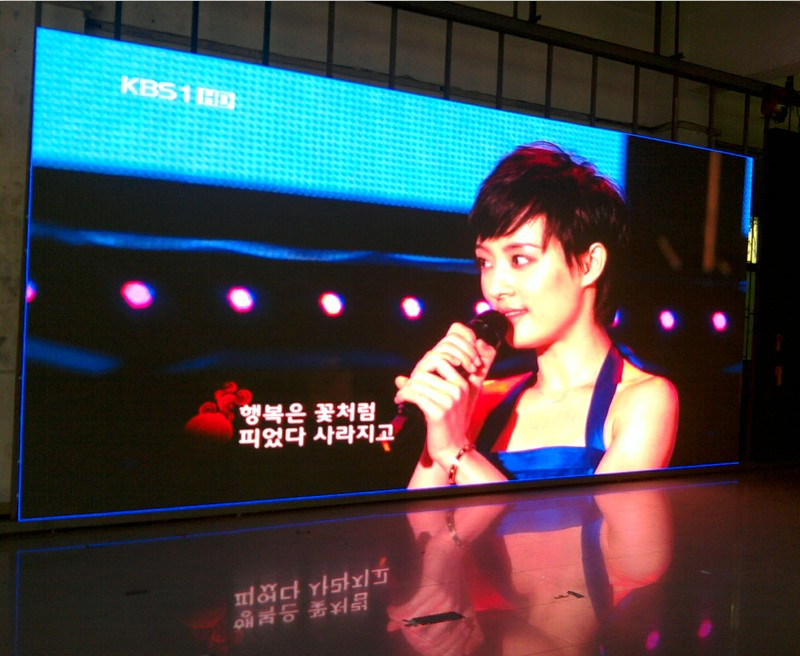

P6.25 outdoor stage flexible LED display, can achieve many shapes for stage design--flat, concave, convex, wave shape etc. Cabinet size is 500*500mm or 500*1000mm. It can show clear video and images. Can work as main screen or side screen in stages.
Features:
1. Only 16KG for 500*1000mm LED panel
2. Can be used both outdoors and indoors

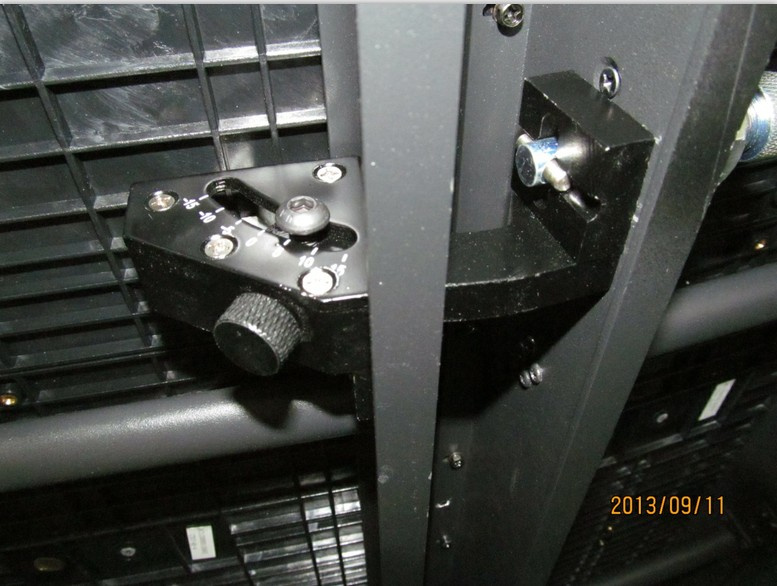

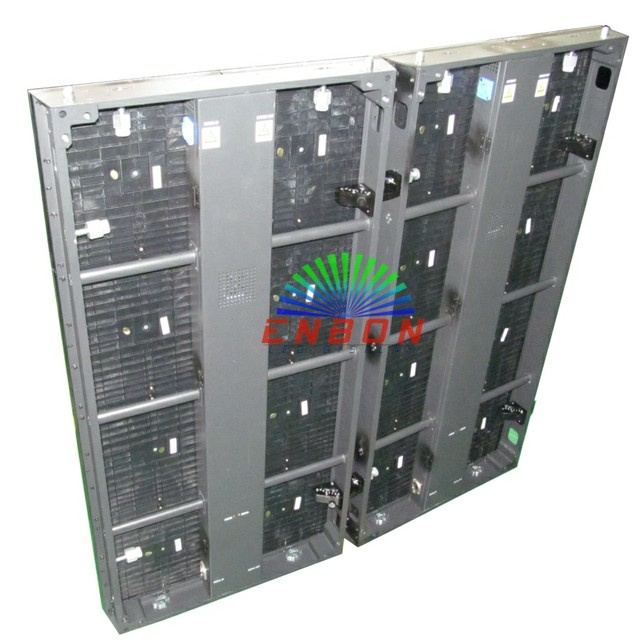

3. Slim aluminum cabinet with fast locks and signal, power connectors, very easy to install and dismantle.
4. Ultra-thin, just 60mm thickness;
ENBON P6.25 LED display is a very succesful products due to that it is versatile, light weight and competitive price. We are pushing the sales of this item. It is one of the most popular products for stages, concerts, touring...
Send an inquiry now, you will GET A NICE SURPRISE!
Don't miss such opportunity! !
Technical Prameters
PROJECT
P6.25 outdoor flexible LED stage screen
Pixel pitch
6.25mm
Pixel density
25600 Pixels/sqm
Module size(W*H)
250mmW*250mmH
Module pixels(W*H)
40 pixelsW*40 pixelsH
Pixel configuration
1Red 1Green 1Blue
Drive mode
constant current driving 1/10 scan
LED lamp type
SMD3535
Panel size(W*H*D)
500mmW*1000mmH
Panel resolution
80 pixelsW*160 pixelsH
Color scale
65,536 degree
View angle(H/V)
140/120 degree
Brightness (White balance)
≥5500cd/sqm.
Power consumption(one cabinet)
Max:750W/sqm. Average:300W/sqm.
Operating Voltage
AC100V±10% or 220V ±10%; 50---60HZ
Net weight
16Kg/Cabinet
Operating temperature
-20°C----+50°C (Customized power supply:-45°C---+60°C)
Operating humidity
10%_95%RH
Life time
≥100,000hours
MTBF
5,000 hours
Whole Display Flatness
≤1mm Juncture
Frame frequency
>60 Hz/s
Refresh rate
≥1000Hz /s
Control distance
100m (without repeater), single mode fiber:20km, multi mode fiber: 500m
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
