Pixel Configuration:
SMD 3528 Black
Module Size:
160mm X 160mm
Cabinet Size:
640mm X 640mm X 130mm
Module Resolution:
32X32
Cabinet Resolution:
128X128
Brightness:
2200 CD/Sq.M
Grey Processing:
14 Bit
Contrast:
2000:1
Refresh Rate:
>800 Hz
Working Voltage:
AC 85-265V
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Pitch:
5mm
Pixel Configuration:
1R,1G,1B
Pixel Density:
40,000 dots / m²
Scanning Mode:
1/8 Scan
System Operating Platform:
WIN XP
Display Type:
LED Video Display
Application:
Shopping Guide
IP Rating:
IP43
Certification:
FCC
Product Description

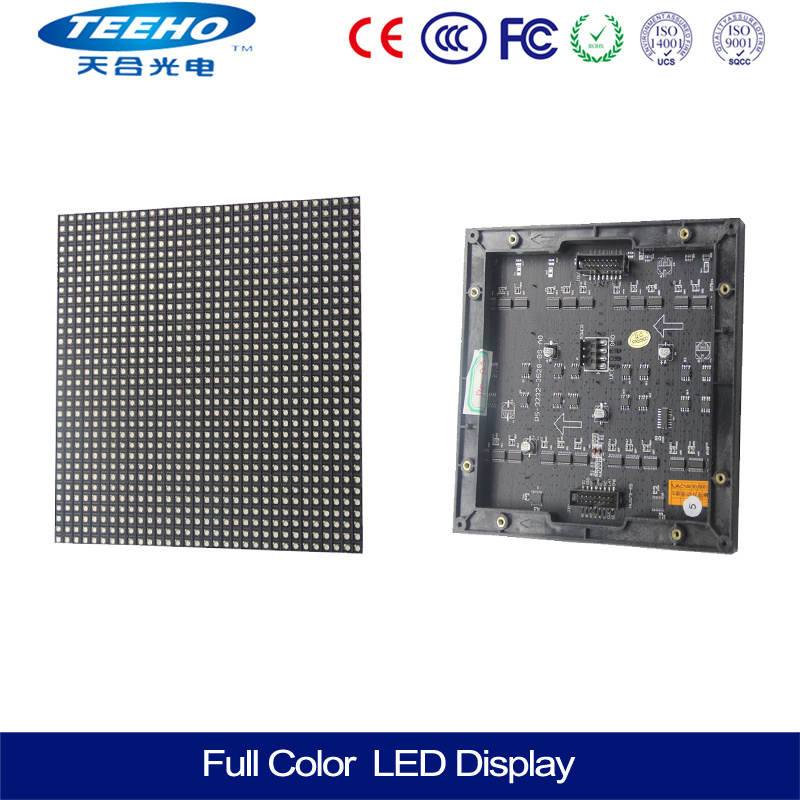

High Definition Indoor P5 LED Display
Applications:
Shopping Malls Vocal Concerts Huge Office Theater and Arts Exhibition and Shows
Specitication:
P5 LED Panel Specification
NO:
Product Name
Specification
1
Pixel Pitch
5mm
2
Pixel Configuration
1R1G1B/SMD3528
3
Density
40,000 pixel/m2
4
Moduel Size(L×W)mm
160mm×160mm
5
Cabinet Size(L×W×H)mm
640mm×640mm×130mm
6
Module Resolution
32×32
7
Cabinet Resolution
128×128
8
Driving Method
1/8 Scan
9
Driving IC
MBI5024
10
Brightness
2200cd/
11
Contrast
2000:1
12
Brightness Adjustment
Auto and Manual
13
Power Consumption
Max Power:<1000W
14
Average power: <400W
15
Cabinet Weight
<32kg/m2
16
Color Temperature
3200K-9300K
17
Horizontal Viewing Angle
120º
18
Vertical Viewing Angle
120º
19
Signal Processing
10 or 14bit
20
Grey Processing
1024×1024×1024 16834×16834×16834
21
Control Distance
Cable100m,Multimode500m,Single mode 2km
22
Frame Frequency
65 Hz
23
Refresh Rate
>800Hz
24
Control Mode
Synchronous/Asynchronous
25
The Opposite Calibration Curve
With Eight Optional Gamma Calibration Curve
26
Users can choose the recommended curve or adjust it based on actual situation
27
MTBF
>50000 hours
28
Life Span
100,000 Hours
29
Operating Temperature
Working : -20 - 65 ºC
30
Storage : -40 - 85 ºC
31
Environment Temperature
-30ºC to 60ºC; humidity Rh10% to 95%
32
Remote Control
Can realize remote control and send alarm signal to operators in case of failure logging (Be customized)
33
Self-checking Technique
Self-inspection, communication test, power test, temperature monitoring (Be customized)
34
Operating System Platform
WindowsNT,Windows2000,WindowsXP,Windows7
35
Power Supply
AC 85-264V
36
Protection
waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)
