Prod Model: |
ALS-P5 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model No: |

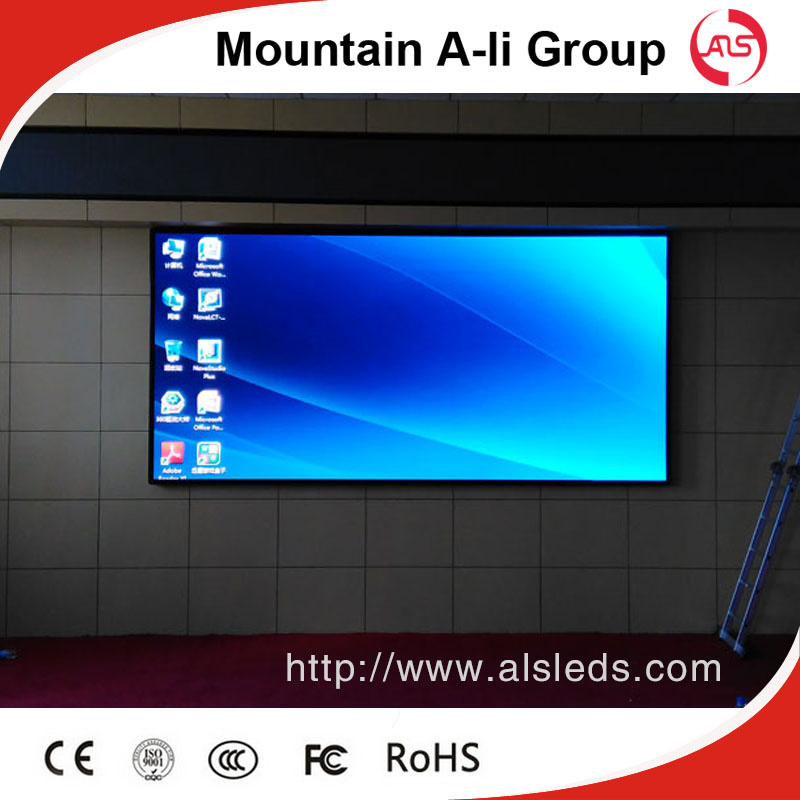

P5 Indoor Full Color LED Screen |
Module Size: |
320mm*160mm |
Brightness: |
2800CD/M2 |
Max Power Consumpion: |
25W |
Best Viewing Distance: |
5m ~ 30m |
Cabinet Size: |
640mmx640mm |
Refresh: |
2200Hz |
Package Mode: |
SMD3528 |
Module Weight: |
0.21kg |
Module Thickness: |
14.27mm |
Tube Chip Color: |
Full Color |
Display Function: |
Video Display |
Pixel Pitch: |
5mm |
Pixel Configuration: |
1R,1G,1B |
Pixel Density: |
40,000 dots / m² |
Scanning Mode: |
1/16 Scan |
Display Type: |
LED Video Display |
Application: |
Shopping Guide |
Certification: |
FCC,EMC,Ios9001 |
System Operating Platform: |
Win98/2000/Nt/XP |
IP Rating: |
IP31 |
Product Description
Main Features:
1.color spots or picture shade will be removed through the adjustment of brightness and color by each independent pixel
2, adopted with self developed steel structure and special kits will be kept in good flatness and smoothness
3, strict water proof testing by Ip65
4, according to environmental changes the brightness can be adjusted automatically for energy saving
5, special PVC kits are adopted to protect from corrosion according to coastal weather
6, according to environmental changes the brightness can be adjusted automatically for energy saving
7, auto power on/off, work unattended
Module Specification
Model Number | P5mm |
Module size | 320mm*160mm |
Pixel pitch | 5mm |
Pixels Density | 40000 /m2 |
Pixel configuration | 1R1G1B |
Package mode | SMD3528 |
Pixel resolution | 64dots(W)*32dots(H) |
Scan mode | 1/16scan/ 1/8scan |
Port type | HUB75-A |
Brightness | ≥1500cd/m2/≥2800cd/m2 |
Cabinet size | 640mm*640mm |
Power supply | 5V/40A*2 pcs |
Pixel per cabinet | 128mm*128mm |
Best viewing distance | 5M ~ 30M |
Best viewing distance | 160°(W) 120°(H) |
Temperature | -40 degree~ +70 degree |
Relative humidity | 10%-95% |
Screen thickness | 85mm |
Working voltage | AC220V/110V±10% |
Average Power | 180W/ m2 |
Max.Power consumption | ≤500W/ m2 |
Refresh frequency | ≥2200HZ |
Grey scale/colo | 256levels of each color(RGB)/16.7M colors |
MTBF | ≥9000hours |
1.Our Service 1)Your inquiry related to our products or price will be replied in 24hrs
2)OEM&ODM,any your customized lightings we can help you to design and put into product
3)Distributoership are offered for your unique design and some our current models
4)Protection of your sales area,ideas of design and all your private information
5)Top Quality+Reasonable Price+Responsible After Service=Successful & Win
2.Trade Terms
1.Payment:T/T,30% deposits before production,70% balance to be paid before delivery
2.Shipping freight are quoted under your requests
3.Shipping port:ShenZhen,Mainland China
4.MOQ:1pc
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
