Brightness:
1,500nit
Viewing Angle:
140/140
Panel Size:
512X512mm
Resolution Per Panel:
128X128
Panel Weight:
18kg
Panel Material:
Epoxy Paint Coated Cold Rolled Steel
Tube Chip Color:
Full Color
IP Rating:
IP65
Display Function:
Video Display
Display Type:
LED Video Display
Application:
Advertising
Certification:
ETL
Pixel Pitch:
4mm
Pixel Configuration:
3in1 SMD
Product Description

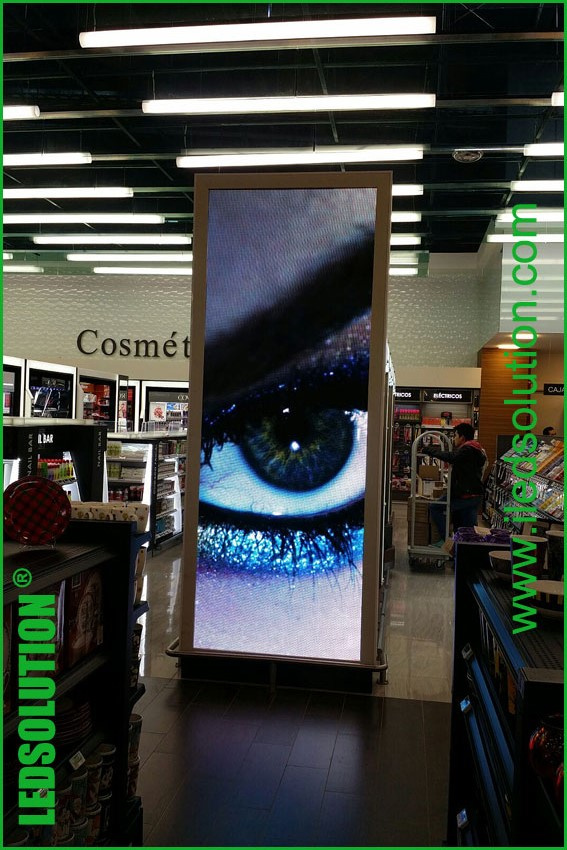

Front Access/service LED Display/Screen, Acesso frontal LED, EL acceso frontal LED display
The front access LED display has two types: 1) Cabinet Front Service This cabinet design suitable for both indoor and outdoor aplication only one cabinet virtical for the display.
2) Module Front Service
Features of the front access LED display: * application for intallation site has no back maintenance space. * zero distance from cabinet installation structure to the architecure wall.
LEDSolution LED Display:
Parameter
Unit
Value
Pitch
mm
4
Brightness
nits
1,500
Color temperature
deg. K
6,500
Viewing angle -Horizontal (50% brightness)
deg.
140(-70 ~ +70)
Viewing angle -Vertical (50% brightness)
deg.
140(-70 ~ +70)
Panel weight
kg
18
Panel width
mm
512
Panel height
mm
512
Panel depth
mm
150
Panel area
sq. m.
0.262
Panel material
Epoxy paint coated Cold rolled steel
Service access
Module front service
Operating temperature range
deg. C
-30 to +60
Humidity operating
RH
10% ~ 90%
Pixel type and configuration
R/G/B
3in1 SMD
Resolution per panel
128x128
Dot per panel
16,384
Dot per sq. meter
62,500
LED per sq. meter
62,500
Recommended minimum viewing distance
m
4
Recommended best viewing distance
m
4~16
Colors
281 trillion
Grey scale (linear)
Levels
65,536 levels per color
Brightness control
Levels
100
Contrast ratio
1,000:1
Processing depth
bit
16
Video frame rate
Hertz
60
Display refresh rate
Hertz
180~3,000
Input voltage (nominal)
VAC
110 to 240
Input power frequency
Hertz
50 to 60
Input power (max)
Watts / panel
300
Input power (typical)
Watts / panel
120
Lifetime (50% brightness)
Hours
≥100,000
Red wavelength (dominant)
nm
620~625
Green wavelength (dominant)
nm
520~525
Blue wavelength (dominant)
nm
470~475
Multimedia data format
DVI,MPG,AVI,WMV,RM etc.
Data interconnection
UTP Cat 5/Optical Fiber
Mounting system
Fixed with4pcs M10 bolts
