North America,South America,Eastern Europe,Mid East,Eastern Asia,Western Europe
Cabinet Size:
512*512mm
Display Type:
LED Video Display
Tube Chip Color:
Full Color
Display Function:
Video Display
Scanning Mode:
1/16 Scan
Application:
Advertising
Pixel Configuration:
1R,1G,1B
Pixel Pitch:
4mm
IP Rating:
IP43
Certification:
RoHS
System Operating Platform:
WIN XP
Pixel Density:
62500
Product Description

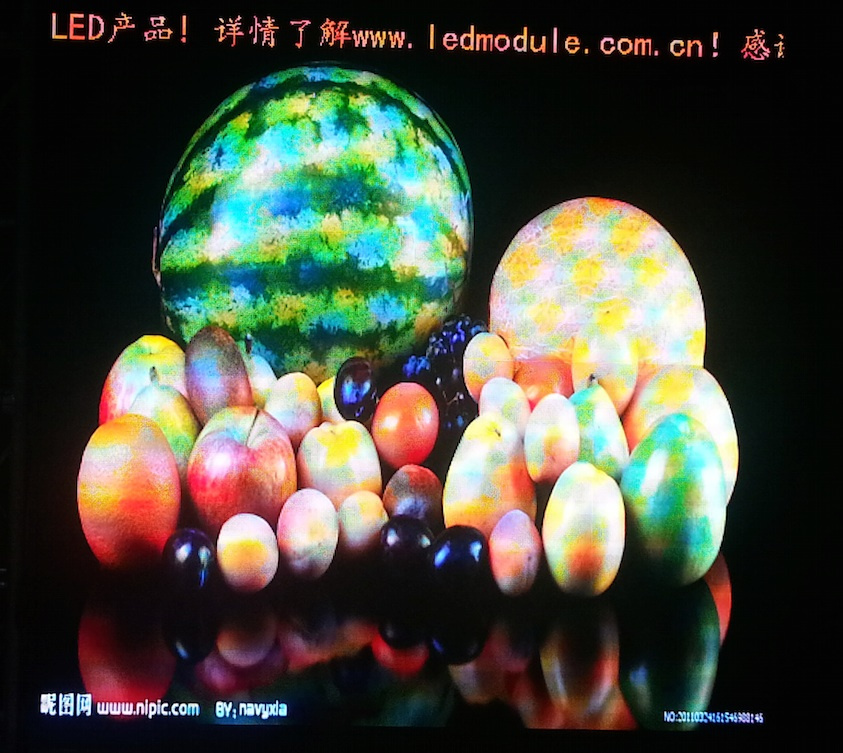

LED Display Modules Indoor, Indoor Full Color Display usually used in exhibtion, shows, meeting ect
1. Our indoor Full Color Display Include P3.75, P4. P4.8, P5, P6, P7.62 and P10
2. Our P3.75, P4, P4.8 P5, P6 LED display consist of bigger modules, one module one cabinet
3. Each cabinet is 480x480mm, 4kg/PCS, extremly light weight, suitable for rental
4. Bigger modules with best color uniformity and white balance, high refresh rate
5. Nick is for you saving every penny, "wholesale price with best quality ".
Indoor P4 RGB Display Parameter
To get best white balance, color ratio is designed to be R: G: B/3: 6: 1.
Pixel
Item
Parameter
Real Pixel pitch
4mm
Pixel composition
1 red, 1 green and 1 blue LED
LED tube
LED tube
Wavelength
Luminance
Red tube core
620-630nm
100-160 mcd
Pure green tube core
520-525nm
200-320 mcd
Pure blue tube core
465-470nm
50-80 mcd
Module
Module resolution
32 x32 =1024pixels
Module size
128MM x128MM
Cabinet
Cabinet size
768MM x768MM x 100MM
Cabinet resolution
Real pixel: 36864pixels
Cabinet materials
Cold rolled steel (mixed Iron & steel)
Screen
Physical Resolution /m2
62500pixels/m2
Brightness
MAX: 3000cd/M2
Brightness adjustment
256 level automatically
Scanning method
1/16 scan
Drive methods
Constant current drive
Best Viewing angle
Horizontal: 120 degrees, vertical: 90 degrees
Grey scale
16384 levels
Color processing
14bit
Display colors
4.4trillion
Contrast ratio
2000:1
Frame rate
> 60 frames/sec
Refresh rate
300-3000HZ(no flickers while camcorder recording)
Control method
Synchronized with computer monitor
Lifetime
> 100,000 hours
Defects rate
≤0.0001
Operating voltage
AC220V±15% 47~64HZ
Screen power consumption
Max:1050w/M2; Average: 350w/M2
Color temperature
6500K±500
Control distance.
100 m (no repeating) by net line; Optical fiber: 500m- 10km
IP level
IP33 both in the front and back
Operating temperature
_20ºC~+60ºC
Operating ambient humidity
10%_95%RH
What is Nick meaning?
Nick name from the RED LED inventor Nick Holonyak Jr, he is not only one research scholar, but also one moral sense scientist, cultivate many electronics talents, promote and facilitate LED industry development, as one beneficiary of this invention and responsible enterprise, Nick Optoelectronics company will continue following the LED way to push forward LED application industry development, let more and more family using energy saving LED lighting, keep the green earth!
Why you choose Nick,
Shenzhen Nick Optoelectronic Technology Co., Ltd established in August 2008 year, consist of one experienced professionals and strong executive team, among our core technicians average LED trade research and production experience more than 15years, speciality and quality is our development foundation, we are the first factory to put forward wholesale LED materials to the world, "Nick for you saving every penny! " is our company motto, high cost performance is our product target, we give more profit shares to distributors and end users, to implement our win-win value, we welcome tailor made LED products, we can design and produce according to customers' Requirements, at the same time, after long time cooperation and good reputation, Nick with many suppliers together formed one excellent and mature supply chain, fully practice resource sharing, complementary advantage, efficient operation spirit among modern enterprises.
Nick Products oriented LED Display and LED Display Modules, LED Display wholesale, one color/two color/RGB color LED Display modules wholesale, Message LED signs wholesale, LED Controller wholesale etc, with high power efficiency, long life, stability, energy saving, splendid, colorful, environment friendly, widely application features and high cost performance, are more and more popular with Customers both domestic and overseas market.

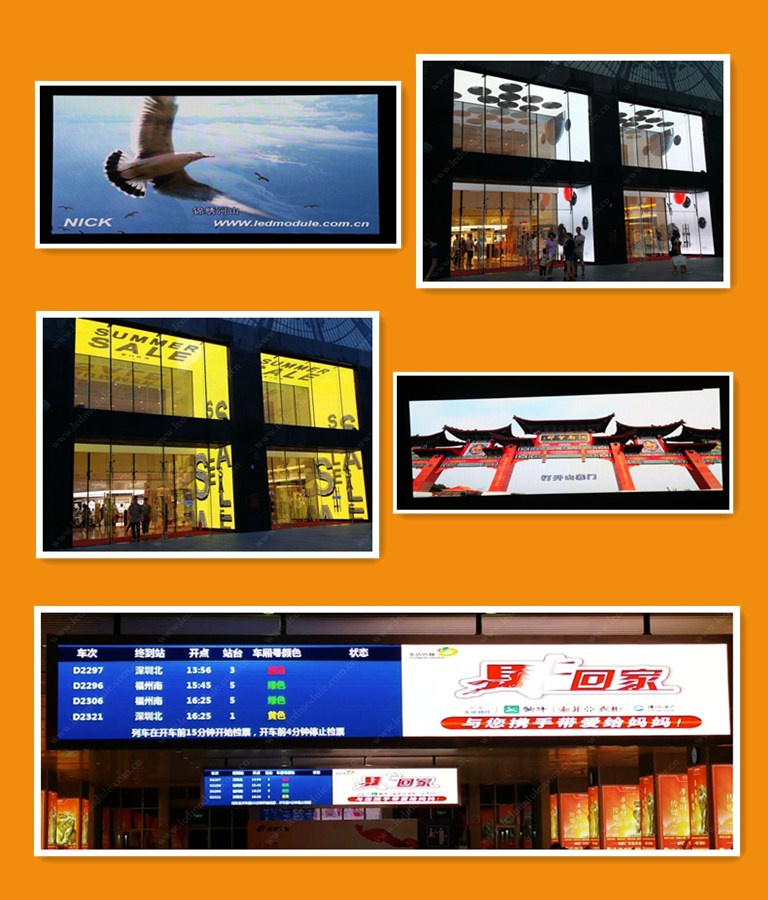

Nick LED Products can be used indoor and outdoor, advertising and daily life, family party and big events celebration different occasions for different themes, now our products has been exported to different countries, such as Korea, Indonesia, Malaysia, Thailand, Japan, Jordan, Iran, Lebanon, Kuwait, Morocco, Israel, Belgian, Finland, France, Portugal, Poland, Romania, Spain, USA, Venezuela, Brazil, Bolivia, Argentina, Nigeria, South America, Australia, Polynesia etc.
ISO9001, ISO14000, TS16949 international quality control system
Nick target is to offer high cost performance LED products to customers, so during material purchasing stage, product-making stage, product finished stage, all is to be controlled under
IQC, IPQC, FQC respectively, we strictly follow ISO9001, ISO14000, TS16949 international management rules to guide production, and tested by special tools such as low-high temperature transmit instrument, integrating sphere instrument, LED spectrophotocolormeter instrument, all have to be tested and aging 48hours in high temperature, after products finished, also have to be aging 48hours again in high temperature, most our products have CE, RoHS, FCC Certificates,
Strong and fast after service
Fast, efficient, convenient is Nick after service team target, from online communication or telephone to provide solution fast within one day, our after service line is open 24hoursx7days, at the same time, our experienced technical experts will provide strong support to customers,
As one responsible enterprise, Nick consistently stick to benefit people with green energy, welcome you to enjoy this warm with us together!
