LED Style:
SMD2121
Module Size:
250X250mm
Cabinet Size:
500X500mm
Cabinet Material:
Die-Casting Aluminum
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Configuration:
1R,1G,1B
Display Type:
LED Video Display
Application:
Shopping Guide
IP Rating:
IP43
Certification:
FCC
Pixel Pitch:
4.81mm
Pixel Density:
43264dots/Sq.M
Scanning Mode:
1/13
System Operating Platform:
XP,Windows 7/8,Nt
Product Description

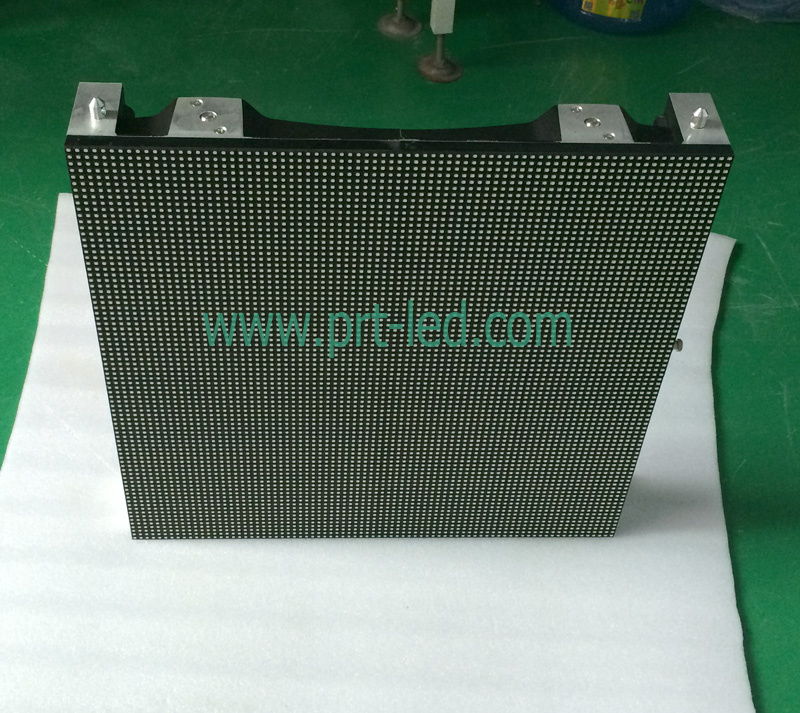

P4.81 Full Color LED Digital Display for indoor rental with size of 500x500mm die-casting aluminum cabinets,also can do 500x1000mm, high resolution and competitive price
1.Made with Die-casting Aluminum material, ensure light weight and durable
2.Rental design,easy and quick to install and dismantle with any tools

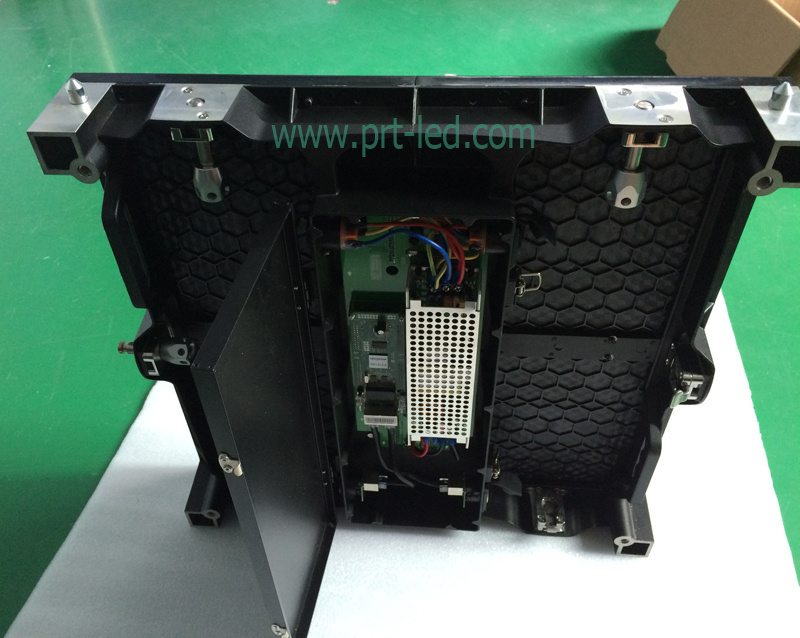

3.Back installation for drivers,benefical to maintenance

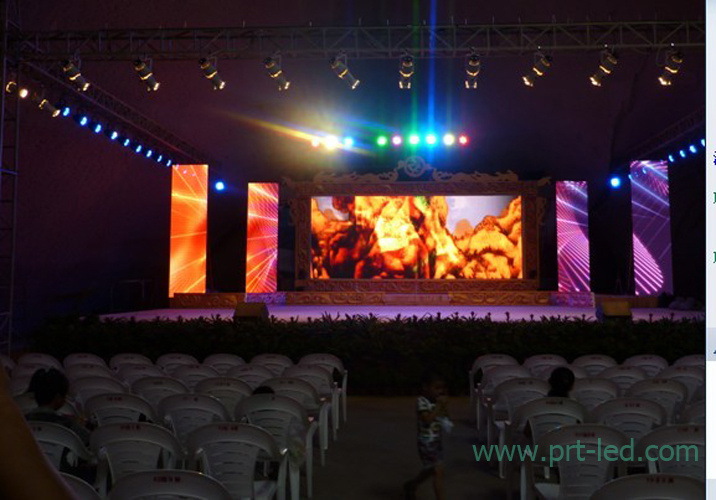

7.Widely used for banquet,concert,exhibition,show,conference,advertising rental
6. The configuration design is available for P3.91,P4.81, P5.68, P5.95,P6.25 and P8.928
P4.81 Full Color LED Display Main Parameters
Visual Characteristics
Unit
Value
Pixel Pitch
mm
4.81
Pixel Density
Dots/sq.m
43264
Pixel Configuration
SMD2121
Cabinet Resolution
dots
104×208
Refresh Rate
Hz
≥1920
View Angle(H/V)
°
140/140
Brightness
nits
≥1500
Gray Scale
Bit
16
IP Rating
43
Power Consumption(Max/Avg)
W/sq.m
600/200
Input Voltage(AC)
V
110~240
Modular Characteristics
Cabinet Size(W×H×D)
mm
500×500×80
Cabinet Material
Die-casting Aluminum
Cabinet Weight
Kg
8
Module Size(W×H)
mm
250×250
Environment
Operation Temperature
ºC
-20~+50
Operating Humidity
10%~90%
Driving Mode
1/13 Scan
Control Distance
Cat 5E <100m,Single mode fiber<10Km
