Module Size:
240mm X 240mm
Cabinet Size:
480mm X 480mm X 130mm
Module Resolution:
64X64
Cabinet Resolution:
128X128
Brightness:
1500 CD/Sq.M
Grey Processing:
14 Bit
Contrast:
2000:1
Refresh Rate:
>3200 Hz
Working Voltage:
AC 85-265V
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Configuration:
1R,1G,1B
Scanning Mode:
1/16 Scan
System Operating Platform:
WIN XP
Display Type:
LED Video Display
Application:
Shopping Guide
IP Rating:
IP43
Certification:
ETL
Pixel Pitch:
3.75 mm
Pixel Density:
71111 Dots/M&Sup2
Product Description

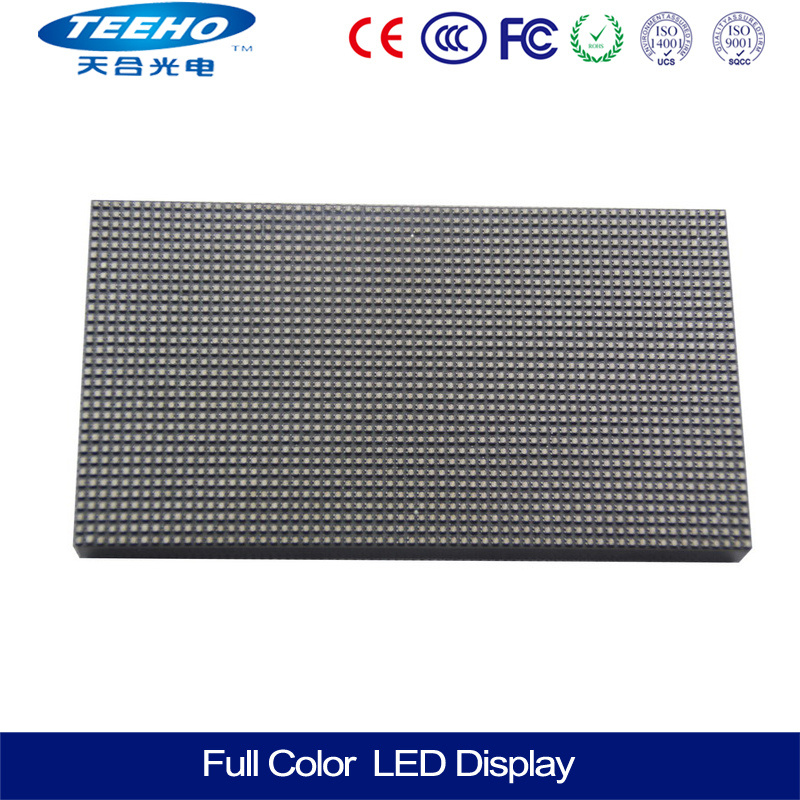

TEEHO OPTOELECTRIC P3S Full Color Indoor LED Display
Application
Stage & Rental Stadium Project Municipal Project Advertising & Media Meeting & Exhibition Commercial Property Broadcast & TV Project
Product Specification
1
Pixel Pitch
3.75mm
2
Pixel Configuration
1R1G1B/SMD2121 Black
3
Density
71,111 pixel/m2
4
Module Size(L×W)mm
240mm×240mm
5
Cabinet Size(L×W×H)mm
480mm×480mm×130mm
6
Module Resolution
64×64
7
Cabinet Resolution
128×128
8
Driving Method
1/16 Scan
9
Driving IC
MBI 5124
10
Brightness
1500CD/m2
11
Contrast
2000:1
12
Brightness Adjustment
Auto and Manual
13
Power Consumption
Max Power:<1000W
Average power: <400W
14
Cabinet Weight
<32kg/m2
15
Color Temperature
3200K-9300K
16
Horizontal Viewing Angle
120º
17
Vertical Viewing Angle
120º
18
Grey Processing
14bit
19
Control Distance
Cable100m,Multimode500m,Single mode 2km
20
Frame Frequency
65 Hz
21
Refresh Rate
>3200Hz
22
Working Voltage
AC85-265V
23
Control Mode
Synchronous/Asynchronous
24
The Opposite Calibration Curve
With Eight Optional Gamma Calibration Curve
Users can choose the recommended curve or adjust it based on actual situation
25
MTBF(Mean Time Between Failures)
>50000 hours
26
Life Span
100,000 Hours
27
Operating Temperature
Working : -20 - 65 ºC
Storage : -40 - 85 ºC
28
Environment Temperature
-30ºC to 60ºC; humidity Rh10% to 95%
29
Remote Control
Can realize remote control and send alarm signal to operators in case of failure logging (Be customized)
30
Self-checking Technique
Self-inspection, communication test, power test, temperature monitoring (customized)
31
Operating System Platform
Windows NT,Windows2000,Windows XP,Windows7
32
Protection
Waterproof, dustproof, high temperature prevention, anticorrosion, smoulderproof, anti-static, shockproof, lightning proof, smoke alarm and temperature alarm. (customized)
33
Descriptions
1.This product is wide applied to advertising media, government projects 2.Protection Level:IP43 3.Designs of cabinet sizes are based on installation sites/screen sizes 4.The parameters above are actual tests.
34
Warranty
24 months
