Production Time:
12 Days
Display Type:
LED Video Display
Tube Chip Color:
Full Color
Display Function:
Video Display
Scanning Mode:
1/16 Scan
Certification:
ETL
Pixel Configuration:
1R,1G,1B
Application:
Shopping Guide
IP Rating:
IP43
Pixel Pitch:
P3
Pixel Density:
11110
System Operating Platform:
W XP, W7, W8
Product Description

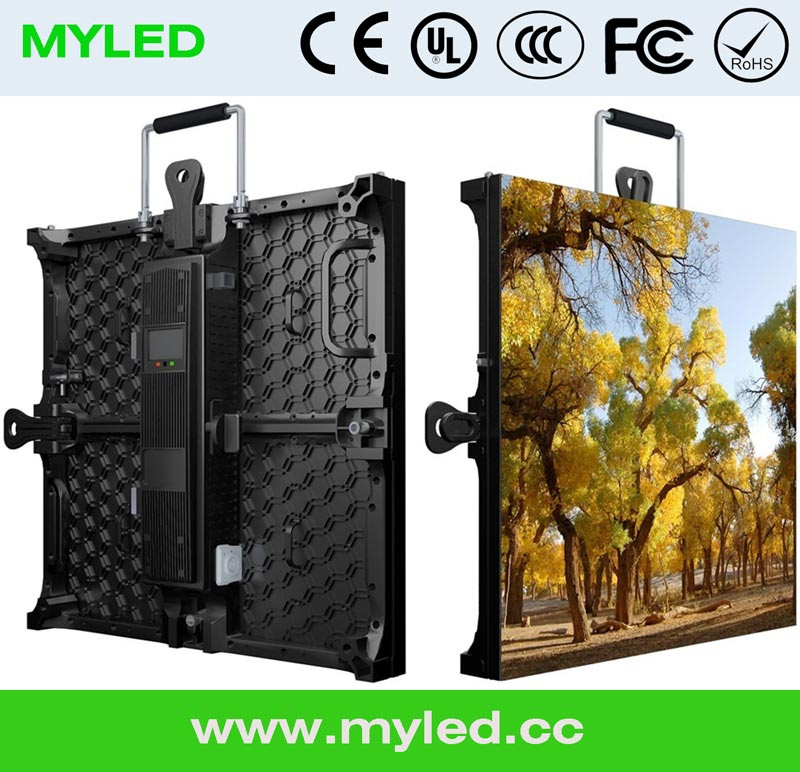

Module features: 1,Easy:Modular design, easy assembly and maintenance. 2,module size:250*250mm ,Smooth surface, module gap small ,High precision Cabinet features: Light:Cabinet size: 500*500*92mm, Weight: 8.5kg/pc. Thin:Die-cast aluminum design, high precision, thickness only 92mm. Fast:Fast locks, Easy to assemble and disassemble. Compatibility:Available pixel pitch for P3, P4, P5, P6. Low:Excellent cooling design, no fans or air-conditioners needed noiseless, low power consumption, cost-effective.
Module Parameter
Item
Specification Parameter
Pixel Pitch,Resolution rate,size
3 mm,84*84Dots,250*250*15mm ,0.8kg
Pixel color, Pixel LED
1R1G1B, SMD2020
Working voltage,Module Power
DC5V,35W
Driving IC,Driving way
MBI5153,1/28
HUB
QP500X500ZL-HUB35-Q1404
Cabinet Parameter
Material,Cabinet Weight(kg/Cabinet)
Cast aluminum,8.5kg/Cabinet
Resolution rate,size,Module quantity
168*168Dots,500*500*92mm,2*2
Density
112896Dots/
White balance ,Color temperature
800-1200 CD/,6500-8000K
view angel,Non-Flatness,Module interval
H:120°;V:120°,<0.2mm,<0.1mm
Maximal power/,Average power/
650W/,215W/
Frame frequency,Refresh frequency,Gray grade
60Hz,≥1920Hz,13bit
Control system,System supports
Novastar / Linsn /,Windows XP,WIN 7,
Working temperature,Protection grade
-10ºC - +40ºC,Front/Back:IP31/IP31

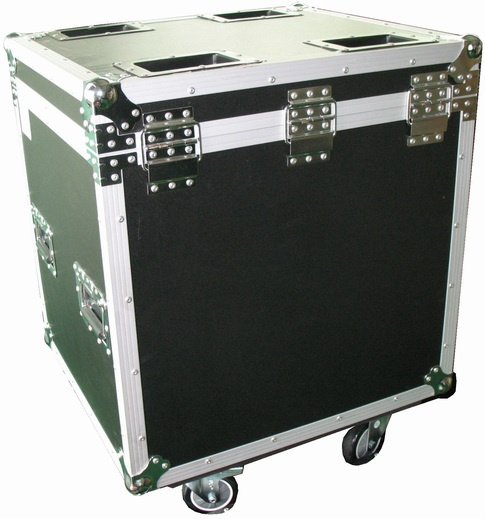

Packing case
Located in Baoan District, Shenzhen Myled Optech is an professional LED display manufacturer which is dedicated to LED display R&D; Production, sales, marketing and one stop solution for customers mainland and international. Myled provides consulting, installation, training and sales services for customers. We always regard customers as the company life line.
Shenzhen Myled Optech focus on indoor and outdoor full color LED display, LED curtain display, mesh, indoor and outdoor single and bicolor LED display manufacturing. We have established business relationship with customers in South America, Euro, and Asia etc. And win a good reputation among customers all over the world. And we provide full solution for Government, Telecom, Hotel, airport, bus station, stadium, and cinema and financial center, etc. Over the past years, we have finished some important LED display project for South American and China Mainland.
Quality is the most important theme for Myled and welcome to contact, and visit our company.
