Pixel Configuration:
SMD 2121 Black
Module Size:
160mm X 160mm
Cabinet Size:
640mm X 640mm
Module Resolution:
64X64
Cabinet Resolution:
256X256
Brightness:
1000 CD/Sq.M
Contrast:
2000:1
Grey Processing:
16 Bit
Refresh Rate:
>3800 Hz
Working Voltage:
AC 85-265V
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Configuration:
1R,1G,1B
System Operating Platform:
WIN XP
Display Type:
LED Video Display
Application:
Shopping Guide
IP Rating:
IP43
Certification:
FCC
Pixel Pitch:
2.5mm
Pixel Density:
160000 Dots/M&Sup2
Scanning Mode:
1/32 Scan
Product Description

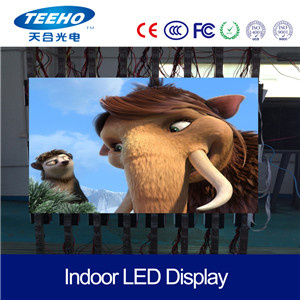

P2 High Defination Full Color Indoor LED Display
Applications:
Shopping Malls Music Venues and Concerts Big office Theater and Arts TV Shows Car Shows
Specitication:
P2.5 LED Panel Specification
NO:
Product Name
Specification
1
Pixel Pitch
2.5mm
2
Pixel Configuration
1R1G1B/SMD2121 Black lamp
3
Density
160,000 pixel/m2
4
Moduel Size(L×W)mm
160mm×160mm
5
Cabinet Size(L×W×H)mm
6400mm×640mm×130mm
6
Module Resolution
64×64
7
Cabinet Resolution
256×256
8
Driving Method
1/32 Scan
9
Driving IC
MBI5153
10
Brightness
1000cd/
11
Contrast
2000:1
12
Brightness Adjustment
Auto and Manual
13
Power Consumption
Max Power:<780W
14
Average power: <350W
15
Module Weight
0.15kg
16
Color Temperature
9500K-11500K
17
Horizontal Viewing Angle
120º
18
Vertical Viewing Angle
120º
19
Signal Processing
16 bit
20
Grey Processing
1024×1024×1024 16834×16834×16834
21
Control Distance
cable100m,Multimode500m,Single mode 2km
22
Frame Frequency
65 Hz
23
Refresh Rate
>3800Hz
24
Control Mode
Synchronous/Asynchronous
25
The Opposite Calibration Curve
With Eight Optional Gamma Calibration Curve
26
Users can choose the recommended curve or adjust it based on actual situation
27
MTBF
>50000 hours
28
Life Span
100,000 Hours
29
Operating Temperature
Working : -20 - 65 ºC
30
Storage : -40 - 85 ºC
31
Environment Temperature
-30ºC to 60ºC; humidity Rh10% to 95%
32
Remote Control
Can realize remote control and send alarm signal to operators in case of logging failure (Be customized)
33
Self-checking Technique
Self-inspection, communication test, power test, temperature monitoring (Be customized)
34
Operating System Platform
WindowsNT,Windows2000,WindowsXP,Windows7
35
Power Supply
AC 85-265V
36
Protection
waterproof, dustproof, high temperature pervention, anticorrosion, smoulderproof, anti-static, shockproof, lightningproof, smoke alarm and temperature alarm. (Be customized)
