South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Module Size:
240X120mm
Brightness:
>1000CD/M2
Cabinet Size:
480X480mm
Working Voltage:
220VAC
Optimal Viewing Distance:
2-10m
Optimal Viewing Angle:
160°(W) 120°(H)
Control Mode:
Synchronization with PC
Cabinet Resolution:
192X192dots
Lifespan:
100, 000hpurs
Warranty:
2 Years
Tube Chip Color:
Full Color
Display Function:
Video Display
Pixel Configuration:
1R,1G,1B
System Operating Platform:
WIN98
Display Type:
LED Video Display
Application:
Advertising
Certification:
FCC, EMC, ISO9001
Pixel Pitch:
2.5mm
Pixel Density:
160,000dots/M2
Scanning Mode:
1/24 Scan
IP Rating:
IP31
Product Description

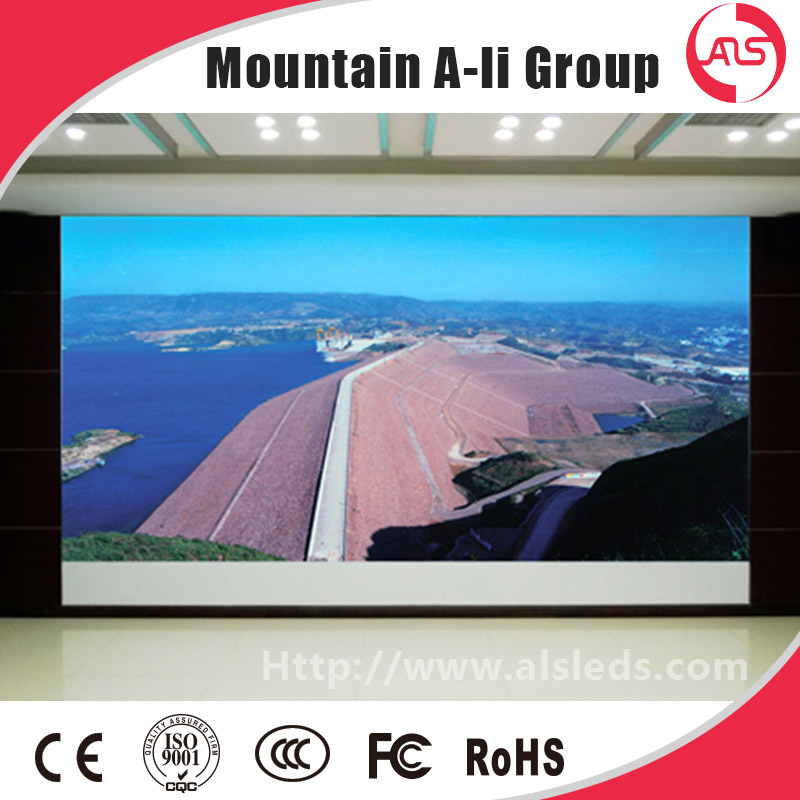

P2.5mm Energy Saving Video Indoor LED Display
1.What are the advantages of our LED display?
1). Low energy consumption,high brightness (brightness can be customized).
2). Less maintenance performance,long lifespan.
3). No color difference,large viewing angle (Horizontal 160°, Vertical 120°).
4). Optimal design,high-precision seamless,accurate to 0.1mm gap.
5). Ultra high refresh rate,can support video shooting,clear picture quality assurance.
6). Quick and easy assembly,removing system,short loading time.
7). Wide range of application( can be used in many application, such as public locations, commercial advertisement, bank gyms dance clubs, traffic facilities and so on).
2.Why choose our LED display?
1).Experience advantage: more than 10 years manufacturing experience, powerful factory!
3).Quality advantage: superior LED led lamp from our own factory, serious QC control system,best material(passed ISO 9001,CE,RoHS,IP65 waterproof certification...).
4).Service advantage: after service dept& Tech Dept. 1-3 years guarantee period.
Our Product List
Item No.:
Description
Dimension
Brightness
INDOOR
1
SMD indoor p3mm
192mm*96mm
2000cd/m2
2
SMD indoor p4mm
256mm*128mm
2000cd/m2
3
SMD indoor p5mm
320mm*160mm
2500cd/m2
4
SMD indoor p6mm
192mm*192mm
3000cd/m2
5
SMD indoor p7.62mm
244mm*244mm
2000cd/m2
6
SMD indoor p10mm
320mm*160mm
3000cd/m2
OUTDOOR
7
DIP 3in1 outdoor P6
192*96mm
7500cd/m2
8
DIP 3in1 outdoor P7
224*112mm
7500cd/m2
9
DIP 3in1 outdoor P8
256*128mm
8000cd/m2
10
SMD 3in1 outdoor P6
192mm*192mm
6000cd/m2
11
SMD 3in1 outdoor P8
256mm*128mm
6500cd/m2
12
DIP 3in1 outdoor P10 round screen
320*40mm
8500cd/md
13
outdoor DIP p10mm
160mm*160mm
8500cd/m2
14
outdoor DIP p12mm
192mm*192mm
7500cd/m2
15
outdoor DIP p13.33mm
320mm*160mm
5500cd/m2
16
outdoor DIP p16mm
256mm*256mm
7500cd/m2
17
outdoor DIP p20mm
320mm*320mm
7000cd/m2
Technical Information
The specifications of p2.5 modules
Items
Parameter
Product Model
P2.5 Indoor Full Color LED Module
Module size
160mm*160mm
Pixel pitch
2.5mm
Pixel density
160000dots/m2
Pixel configuration
smd 1R1G1B 3in1
Module resolution
64dots(W)*64dots(H)
Module maximum power consumption
20W
Module Thickness
2.8CM
Module Weight
0.21kg
Driving method
Constant Current Driving
Scanning method
1/24scan
Interface
HUB75E
Brightness
≥1000cd/m2
The specifications of cabinets
Cabinet size
480mm*480mm
Module quantity
9pcs
Power supply
5V/60A
Cabinet resolution
192*192dots
Optimal viewing distance
2M~10M
Optimal viewing angle
160°(W) 120°(H)
RHWorking temperature
(Work :-10°C~+50°C)
System operating humility
20%-90%
The specifications of power supplier
Operating Voltage
AC220V±10%
Average power consumption
200W/H
Maximum power consumption
≤300W/m2
Electric current
≤20mA(single LED)
The specifications of control card
Control Panels
Pentium4 or above
Operating system
WIN98/2000/NT/XP
Control model
Synchronization or asynchronization
The specifications of the main technical parameters
Driving device
Constant Current Driving
Refresh rate
≥400HZ
Grey scale
RGB Each 256, can display 16.7M colors)
MTBF
≥9000hours
Power switch
Automatic Switch
Display Mode
800*600/1024*768
3.Our service
1). Your inquiry related to our products or price will be replied in 24hrs
2). OEM&ODM, any your customized lightings we can help you to design and put into product
3). Distributorship are offered for your unique design and some our current models
4). Protection of your sales area, ideas of design and all your private information
5). Top quality+Reasonable price+Responsible After Service=Successful & Win
4.Trade Terms
1). Package: Anti-shaking wooden package, Air flight case or Carton package
2). Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3). Shipping freight are quoted under your requests
Our experienced sales engineer will provide professional display solutions according to your requirement.
Send your Inquiry Details in the Below, Click "Send" Now!
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
