LED Module Size:
256mm*256mm
Cabinets Size:
1024mm*1024mm
Brightniess:
8000mcd/Square Meter
Warranty:
2 Years
Module Resolution:
16 Dots*16 Dots
Best View Distance:
16-120m
LED Modules Max Power:
35W
Modules Thickness:
33cm
LED Modules Weight:
1kg
Control Card:
Linsn
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Pitch:
16mm
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
600W / m²
Pixel Density:
6944 dot / m²
Scanning Mode:
Static Scan
Display Type:
LED Video Display
Application:
Advertising
Certification:
FCC /IP65
Product Description
Product Description
P16 Outdoor Full Color LED Advertising Display 1. full color outdoor LED display/led display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the speciality of dampproof, windproof, sunproof, staticproof, antifreezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.
(LED stage display ,LED Outdoor video wall , Wedding LED display,The stage LED electronic screen,LED large screen full color display,advertising led display,outdoor led display,indoor led display)
2. P16 Outdoor Full Color LED Advertising Display Features Of The Product: 1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment. 2) Having good lightening accordance and no mosaic. 3) Using virtual pixels, better viewing effect for both text & graphic and video. 4) Having larger viewing angle: Horizontal angle 160 degree / elevation angle 120 degree. Getting vivid effect within any position of the viewing range. 5) Any LED in each pixel can be respectively repaired, which reduce the cost of the display maitenance. 6) Good heat emission capability 7) Environmental-friendly.
3. P16 Outdoor Full Color LED Advertising Display Description: 1). Model No.: P6mm ,P7mm,P8mm ,P10m, P16mm(DIP LED) 2). Display Color: 256*256*256 3). LED Chips: Nichia, Cotco, CREE, AXT, Taiwan 4). Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue. 5). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on. 6). Package: Flight box, wooden box package 7). Guarantee:2 year with parts
Product Model
P16 Full Color Led Module
Module size
256mm*256mm
Pixel pitch
16mm
Pixel density
3906dots/m2
Pixel configuration
1R1G1B
Module resolution
16dots(W)*16dots
Module maximum power consumption
35W
Module Thickness
33CM
Cabinet size
1024mm*1024mm
Module Weight
1kg
Driving method
Constant Current Driving
Scanning method
Static Scanning
Interface
HU40
Brightness
8000cd/m2
Power supply
5V/40A 5V/60A
Cabinet resolution
64*64dots
Optimal viewing distance
10M~120M
Optimal viewing angle
160°(W) 120°(H)
Average power consumption
350W/H
Maximum power consumption
800W/m2
Driving device
Constant Current Driving
Refresh rate
600HZ
Grey scale
RGB Each 256, can display 16.7M colors)
MTBF
9000hours
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect

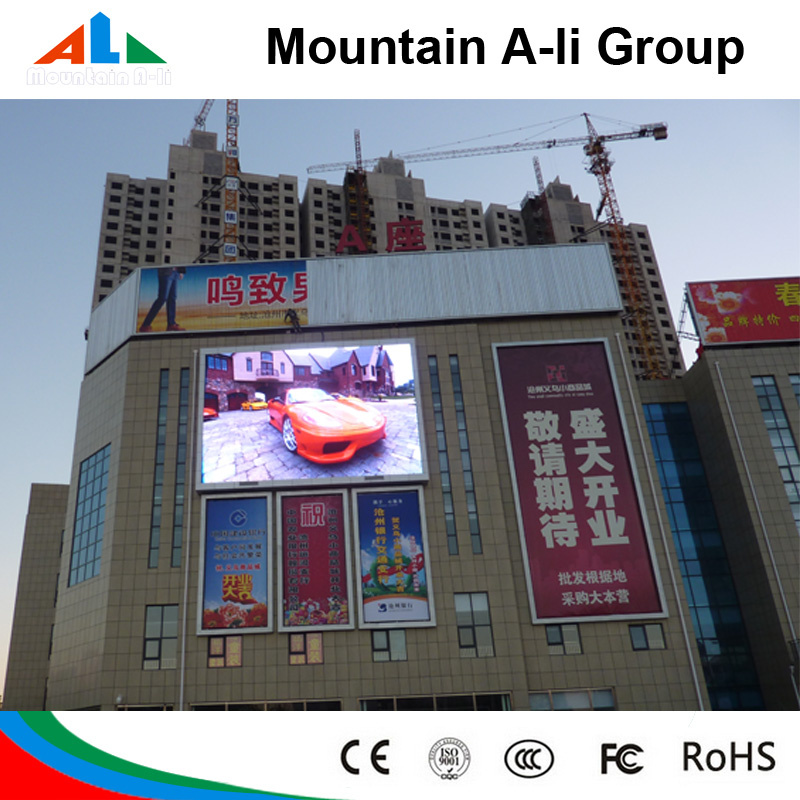

Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
