| Prod Model: |
P16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cabinet Size Is Custom Made: |
1024X768mm, 768X768mm, 1024X1024mm |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Pixel Pitch: |
16mm |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Certification: |
CCC |
| Pixel Density: |
3906 |
| Average Power Consumption: |
390 |
Product Description
Outdoor LED display - this is the most prestigious, efficient, forward-looking and high-tech kind of advertising that used successfully in outdoor advertising all over the world. The advantage of LED displays is that you have a possibility to show a wide range of advertising media: Video, slides, animation, text, etc. This allows you to maximize audience reach and significantly increase sales of the advertised product. You will never reach such results with traditional marketing materials.
Key features
Viewing angle(H/V) 120/60 deg.;
High brightness and high contrast
IP rating(Front/Rear) IP65/IP54;
Operating temperature: -20+50C;
Low Power consumption.
Graphics and color effects, text and images;
Videos and slide shows advertising;
Online videos, sporting events, satellite and internet TV;
Timely information about the date, time, traffic and weather;
Exchange rates and emergency situations.
|

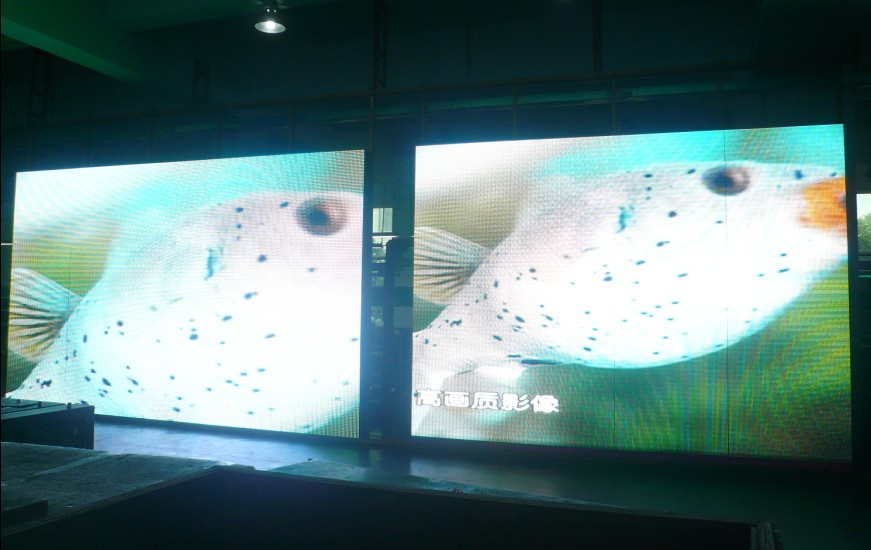

P16 outdoor full-color high-contrast LED display |
|
Item |
Details |
Parameters |
|
Pixel |
Physical |
16mm |
|
Pixel Configuration |
1R1G1B |
|
Module |
Module resolution |
16*16 pixels |
|
Module Size |
256*256mm |
|
Cabinet |
Physical resolution |
64*64 pixels |
|
Cabinet Size |
1024*1024mm HxW |
|
Physical density |
4096 pixels/cabinet |
|
Module quantity |
16pcs=4(h)*4(w) |
|
Material |
steel |
|
Weight |
55 kg Approx |
|
Power supply(5V60A) Quantity |
4 pcs |
|
Average power consumption |
410W |
|
Max power consumption |
1220W |
Electricity
parameter |
Brightness |
9000 nits |
|
Brightness adjusted |
100 grade by software or by Auto-optic induced |
|
Color processing |
8 bits |
|
Display color |
16 millions |
|
Color temperature(k) |
7200k |
|
Physical density |
3906 pixels/per square meter |
|
Whole display flatness |
≤ 1.2mm Juncture |
|
Best view distance |
9-65m |
|
Best viewing angle |
H≥100° V≥50° |
|
Storage temperature |
40 degree -5 degree |
|
Working temperature |
20 degree -50 degree |
|
Driving Method |
Constant driving current Scan: static |
|
Refresh frequency |
up to 300Hz |
|
Frame rate |
75Hz |
|
Humidity(RH) |
10%-90% |
|
Protection grade |
Front IP65, Rear IP54 if not specified |
|
Working voltage |
DC 5V |
|
Power supply |
AC 110V ±10% / 220V ±10% |
|
Average power consumption |
400W/M2 |
|
Max power consumption |
1200W/M2 |
|
MTBF |
8,000 hours |
|
Screen lifetime |
100,000 hours |
Control
System |
Control System |
Linsn |
|
Signal Interface |
DVI |
|
Communication distance |
CAT5cable:≤100m Fiber Cable:≥500m |
|
Signal transfer mode |
dot to dot synchronized with computer monitor |
