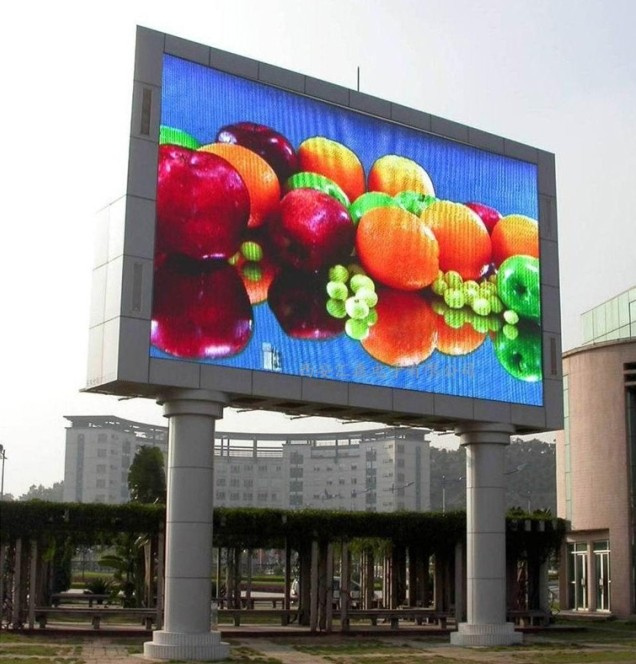

P12 Full Color Outdoor LED Display

Name: P12 Full Color Outdoor LED Display
Brand: yourledlight.com
SKU: 686205202
Availability: InStock
Rating: 4.8 (91 reviews)

Price:	US $ 600-1000/Square Meter
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Square Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Guilin Hivision Technology Co., Ltd.

Showroom Product Company Profile

Prod Model:	P12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cabinet:	Standard Cabinet
Special Cabinet Size:	Is Customized
Warranty:	Two Years
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Configuration:	1R, 1G, 1B
Pixel Pitch:	12mm
Display Function:	Video Display
Scanning Mode:	Static Scan
Certification:	ETL
Pixel Density:	6944 dot / m²
Average Power Consumption:	350W / m²

Product Description

Outdoor Full Color LED Display (P12 advertising LED Display Screen)/LED sign/LED wall
Full color outdoor LED display/LED display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the special of dampproof, windproof, sunproof, static proof, anti-freezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.

(LED stage display, LED Outdoor video wall, Wedding LED display, The stage LED electronic screen, LED large screen full color display, advertising LED display, outdoor LED display, indoor LED display)

P12 outdoor full-color LED display
Item	Details	Parameters
Pixel	Physical	12mm
Pixel	Pixel Configuration	1R1G1B
Module	Module resolution	16*16 pixels
Module	Module Size	192*192mm
Cabinet	Physical resolution	80*80 pixels
	Cabinet Size	960*960mm
	Physical density	6400 pixels/cabinet
	Module quantity	25pcs=5(w)*5(h)
	Material	steel
	Weight	50KGS
	Power supply(5V40A) Quantity	5 pcs
	Average power consumption	320w
	Max power consumption	960w
Electricity parameter	Brightness	≥6,000
	Brightness adjusted	100 grade by software or by Auto-optic induced
	Color processing	16 bits
	Display color	281 trillions
	Color temperature(k)	7,200k
	Physical density	6944 pixels/ per square meter
	Whole display flatness	≤ 1.2mm
	Best view distance	8-60m
	Best viewing angle	H≥120 degree V≥50 degree
	Storage temperature	40 degree -60 degree
	Working temperature	20 degree-60 degree
	Driving Method	Constant driving current Scan: 1/4
	Refresh frequency	up to 3000Hz
	Frame rate	25-75Hz
	Humidity(RH)	10%-90%
	Protection grade	Front IP65, Rear IP54 if not specified
	Working voltage	DC 5V
	Power supply	AC 110V ±10% / 220V ±10%
	Average power consumption	400W
	Max power consumption	1000W
	MTBF	10,000 hours
	Screen lifetime	100,000 hours
Control System	Control System	Linsn
	Signal Interface	DVI
	Communication distance	CAT5cable:≤100m Fiber Cable:≥500m
	Signal transfer mode	dot to dot synchronized with computer monitor

About Hivision

Guilin Hivision Technology Co., Ltd. Was founded in 1994, starting as a spin-off of a Bank Database System with LED display project at Computer Science department of Guilin Electronic Engineering University. Through the years, Hivision has grown from a small startup to a full-fledge LED sign and light manufacturer.

Hivision is an ISO9001 certified LED manufacturer with extensive in-house R&D capabilities.

Why choose Hivisi?

In-house LED package ability

We complete the entire LED manufacturing process in-house. Our fully automated LED production process includes from die and wire bonding to package, populating, wave soldering and so on.

Three-step QC process with 1st class inspection equipments

Our strict QC process involves 3-step:

1. Incoming Quality Assurance -BOM

2. Inspection Process Quality Control -Producing

3. Final Quality Assurance - Finished product

Throughout these process, we conduct brightness, white balance, vibration and turning-in tests starting with modules, then panels and completed displays. Once finished, we perform high-pressure water resistance assessments to conform to IP65 standards.

Lastly, we assemble the LED cabinets for video aging and on-site simulations, as well as aesthetic inspections on cabinets and internal components. And prior to shipment, all spare parts are evaluated one last time.

Backed by heavy investment and a strong R&D team composed of 20 professionals with average ten years' experience covering software, firmware, hardware, and mechanical engineering, we are able to provide to you customized need.

Aftersales service

When you receive your shipment, you will find an array of materials to assist you with installation and operation. Documentation and user manuals, as well as software will provide you with all the information that you need to get your LED displays up and running.

Technical support

Free training for operation, maintenance and trouble shooting before the shipment in factory

Life-long free Technical support through Skype and Teamviewer (remote operating your computer).

We strive to understand, inspire and enable our customers and partners to turn their large image dreams into results with known outcomes. We are keeping the aim to add value, through our industry leading competence, with a complete range of high impact screens for permanent installations as well as the rental and staging markets. If you are looking for a reliable partner to realize your project, Hivisi is the right man for the job.
