Cabinet Size:
960 X 960 X 150mm
Cabinet Resolution:
96 X 96 Pixels
Net Weight:
55kg/Cabinet
Brightness:
7000 CD/Sqm (Nits)
Power Input:
AC110V / AC220V, + - 10%
Package:
Plywood Case
Warranty:
2 Years
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Pitch:
10mm
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
300W / m²
Pixel Density:
10000 dot / m²
Scanning Mode:
1/4 Scan
Display Type:
LED Video Display
Certification:
FCC
Application:
Advertising, Promotion, Propaganda
Product Description

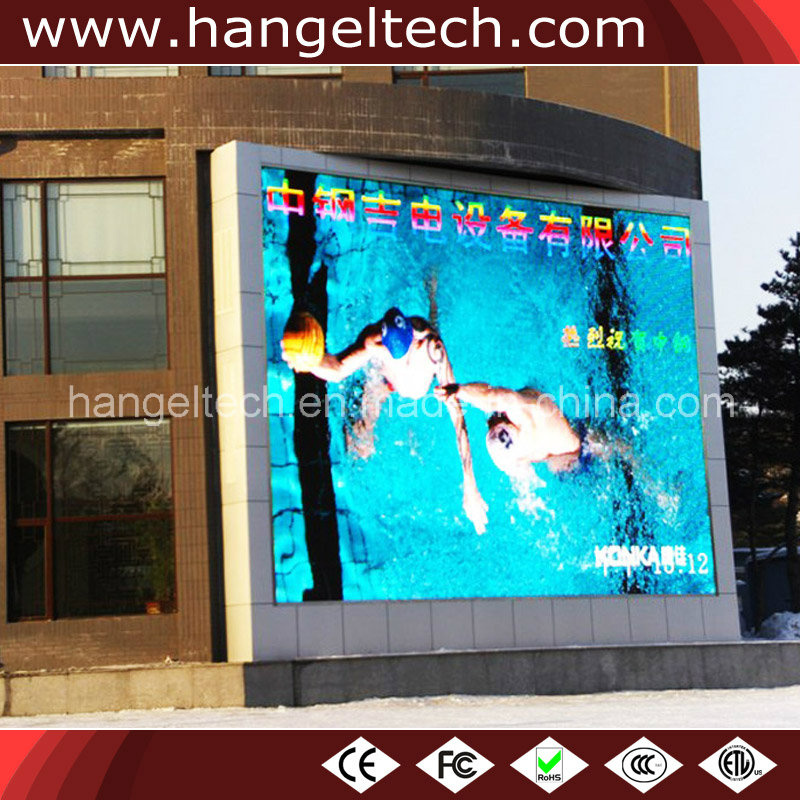

P10mm Outdoor Full Color LED Display Screen, the best selling model
> P10 outdoor full color LED display panel, LED video billobard; > The best selling series. The standard close cabinet i s the best selling series in the market; > Standard steel close cabinet, strong, firm and flat. With the special designed rain channel, the cabinet is more strong, and no distortion during the shipping and installing ; > IP65, water proof and dust proof, UV-proof mask, pure black to improve the contrast rate; > Smooth and vivid image. The display is of 10-bit colors, with 65536 gray scale to play natural and vivid image. > Many mature controlling solutions are optional. 3G, 4G, WIFI, group cloud controlling are available. Camera, cable TV, the 2nd development docking with other devices and optional. There is always a solution suitable for situation needing; > Top-Brand Components make sure the reliable quality, MW power supply, MBI driving IC, etc. > All the PCB is covered by conformal coating. It is water proof & insulated in some extent and helpful for heat dissipation; > The display is firm and flat, IP65 water proof, seamless join, suitable for naked installation. Saving the decoration cost;
Application,
> Outdoor Advertising - playing kinds of appointed ads, promotional information, etc. No matter it is video, flash, picture or text messages; > Government & Enterprise Project - playing image promo, local cultures, landscape, etc. > Culture & Tourism - playing information of landscape, interesting places, historic sites, local stories, culture, interesting manners and customs; > Sport Matches - live broadcasting kinds of matches, events, posting the scores, etc. > Image Propaganda - playing image promo, concerning ads, etc.; > Commercial Real Estate - using as large outdoor digital billboard to play kinds of advertisement;
Specifications,
LED Specs
LED Chip Brand
Red, Green, Blue: Epistar;
Wave Length (nm)
R: 625nm; G: 525nm; B: 470nm
Pixel Configuration
1R 1G 1B
Module & Cabinet Specs
Pixel Pitch
10 mm
Pixel Density
10,000 Pixel/sqm
Module Dimensions (W x H)
160mmX160mm
Physics Pixel / Module
16 x 16 = 256
Module Frame
Separated Lamp Board and Driving Board
Cabinet Dimensions ( W x H xT)
960mm X 960mm X 150mm
Physics Pixel / Cabinet
96 x 96 = 9216
Module QTY / cabinet
36 pcs of module
Cabinet Weight
55 kg/pc
Cabinet Material
Steel Cabinet
Cabinet Frame
Standard close cabinet with back door
Tech. Parameters
Brightness
7000 cd/m2
Best Viewing Distance
6 meters
Power Consumption
MAX 1000 W/sqm; Average 300 W/sqm;
Drive Mode
1/4 scan, constant current driving
Refresh Rate
>600 HZ
Frame Rate
60HZ
Display Flatness
±0.5mm
Maintenance
Back access, replace the module or other components
Led Life Span
100,000 hours
Supply Voltage
AC110V / 220V, 10% more or less
Operating Temperature
-20 Celsius ~ +50 Celsius
Operating Humidity
10%-90%
Storage Temperature
-40 Celsius ~ +60 Celsius
Viewing Angle
Horizontal:120°; Vertical: 65°
Grey Scale
Red, green, blue each 16k
Display Colors
4096 Billion
IP Rating
IP65 water proof, dust proof
Aging Time in Factory
More than 72 hours constantly
Control
System Supported
win XP, win7, win8, win8.1, win10
Control Mode
Real Time Control (Synchronous)
Display Capability
Flash, Video, Graphic, Text
Signal Supported
RGB, VGA, DVI, etc.
Warranty
2 years
Concerning Models
HTF-OD6-S
HTF-OD8-S
HTF-OD12-S
HTF-OD16-S
HTF-OD20-S
Pictures,

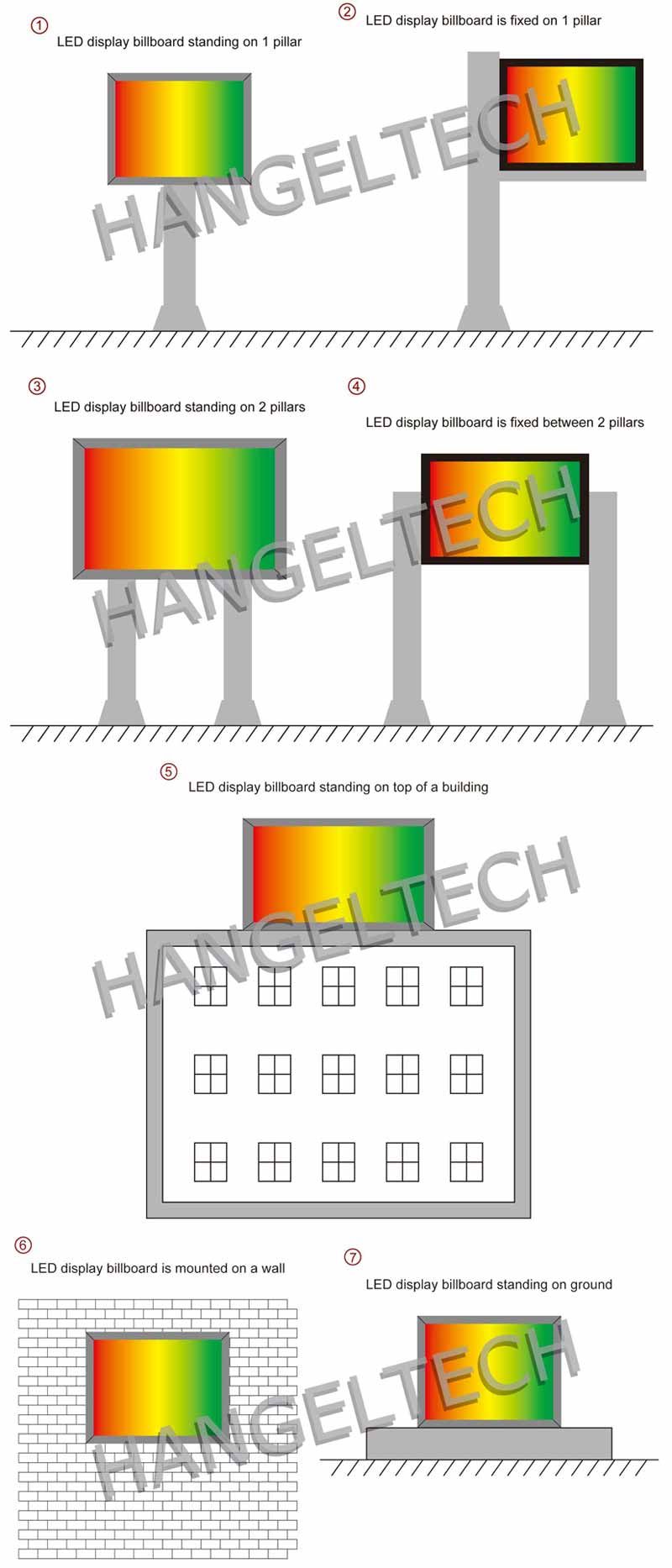

Installation,
