P10 Module Size:
160mm*160mm
Cabiet Size:
960mm*960mm
Module Weight:
0.6kg
Certificates:
CE/RoHS/ISO /FCC
Pixel Configuration:
1r1g1b
Waterproof:
IP65
Lifespan:
100,000hours
Delivery Time:
7-10 Working Days
Warranty:
2 Years
Other:
Accept OEM
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Pitch:
10mm
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
350W / m²
Pixel Density:
10000 dot / m²
Scanning Mode:
1/4 Scan
Display Type:
LED Video Display
Application:
Advertising
Certification:
FCC,ISO9001,EMC,IP65
Product Description
P10 P8 Outdoor LED Display for Advertising display 2years warranty .delivery time :7-10 working days .

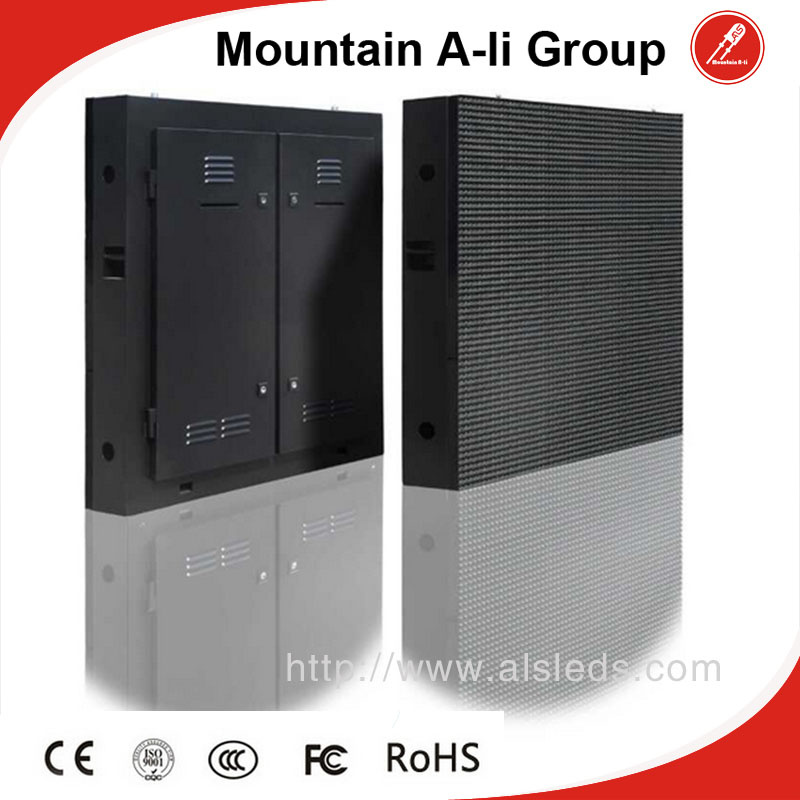

P10 P8 Outdoor LED Display for Advertising display
Unit Module
Item
parameter
Model
P10 FULL Color Led Module
Module size
160mm*160mm
Pixel Pitch
10mm
Pixel Density
10000dots/m2
Pixel Configuration
1R1G1B
Module Resolution
16dots(W)*16dots(H)
Max power
20w
Module Thickness
25cm
Module Weight
0.5kg
Driving Method
Constant Current Driving
Scan Method
1/4 scan
Interface Way
HUB75
Brightness
≥7500cd/m2
Unit Module
Cabinet Size
960mmx960mm
Cabinet Composing
36pcs
Power supply Mode
5V/40A 5V/60A
Cabinet Resolution
96*96dots
Optimal Viewing Distance
10M-50M
Optimal Viewing angle
160°(W)120°(H)
Enviroment Temperature
Storage :-35ºC-+85ºC work :-20ºC-+50ºC
Power
Relative Humidity
10%-95%
Operating Voltage
AC220V±10%
Average power
350W/H
Max power Consumption
≤700W/m2
Current
≤20mA (Single LED )
Control system
Computer
Pentium4 or above P4 or above
Operate system
WIN98/2000/NT/XP
Control Mode
Synchronization with PC
Main technical parameter
Driving Device
IC Constant current driving
Refresh Rate
≥600HZ
Gray/Color
RGB each 256 grade, can display 16.7M clolor
MTBF
≥9000hours
Power Switch
Automatic Switch
Display Mode
800*600/1024*768/1024*900

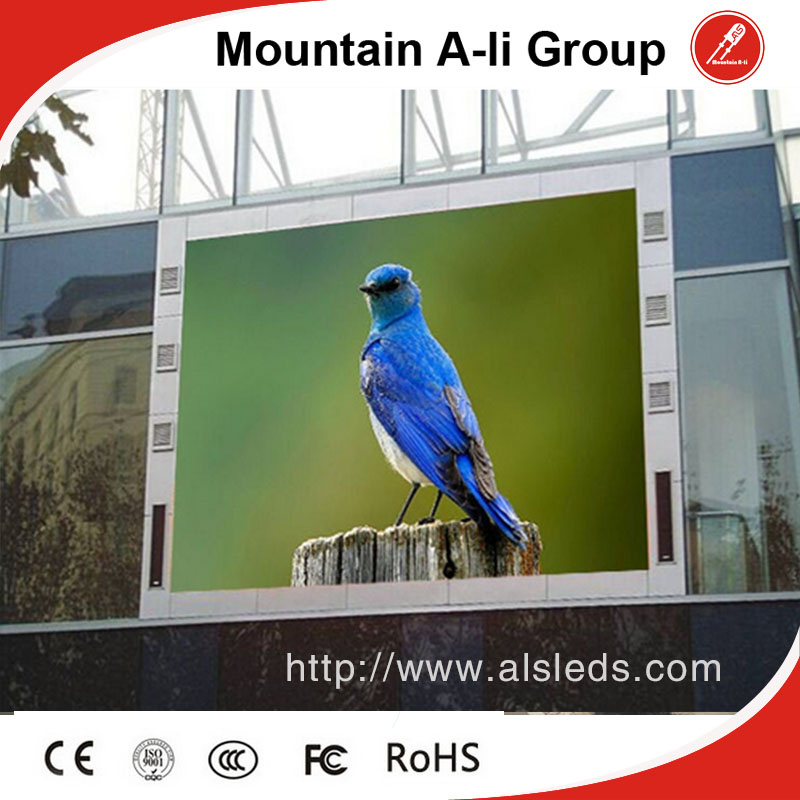

HD Outdoor P10 P8 Color LED Display Panel for Advertising
Certificates :

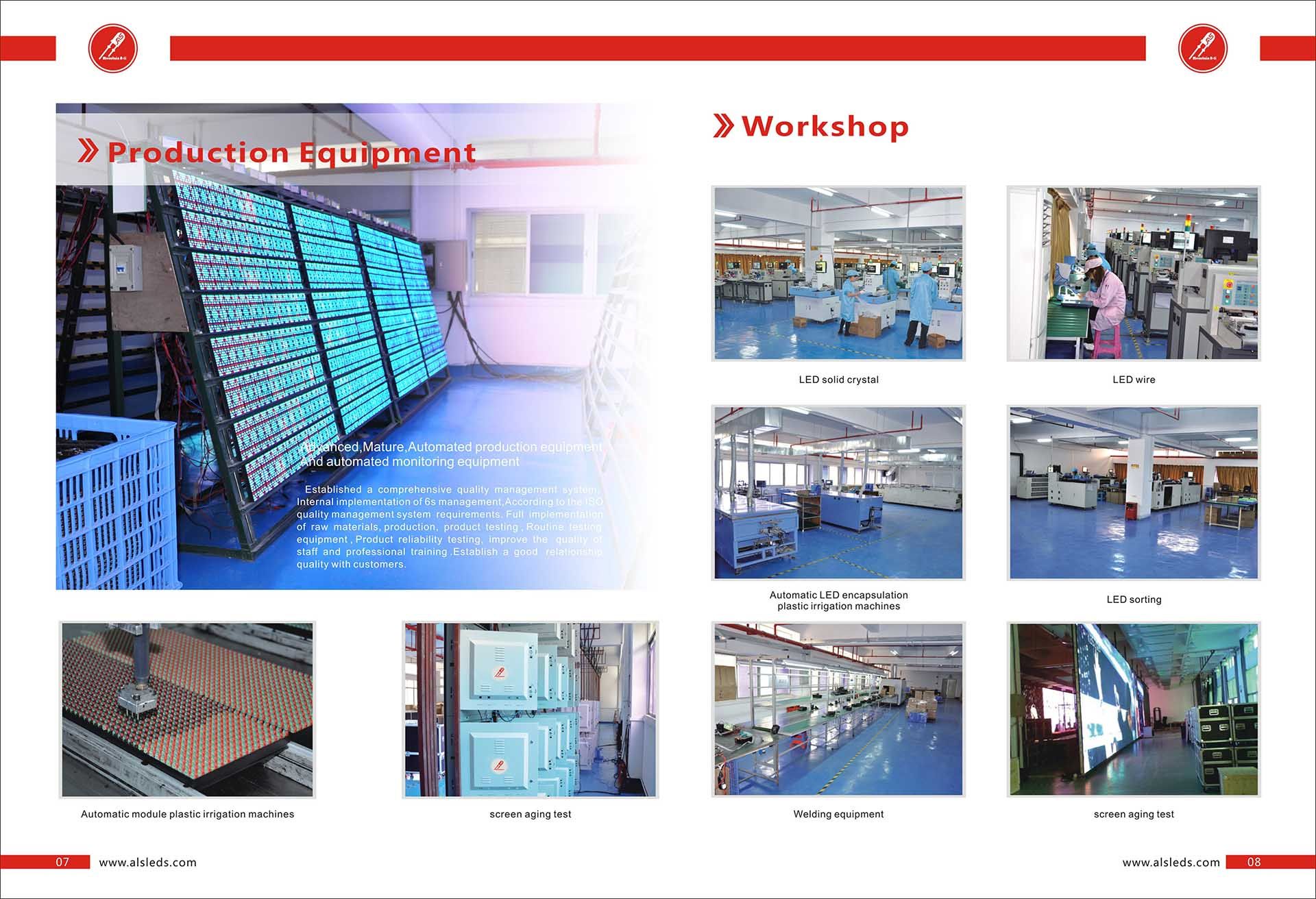

Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
