North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display Type:
LED Video Display
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Certification:
CCC
Pixel Pitch:
10mm
Display Function:
Video Display
Application:
Stage Performance
Scanning Mode:
1/4 Scan
Pixel Density:
10000 dot / m²
Average Power Consumption:
350W / m²
Product Description

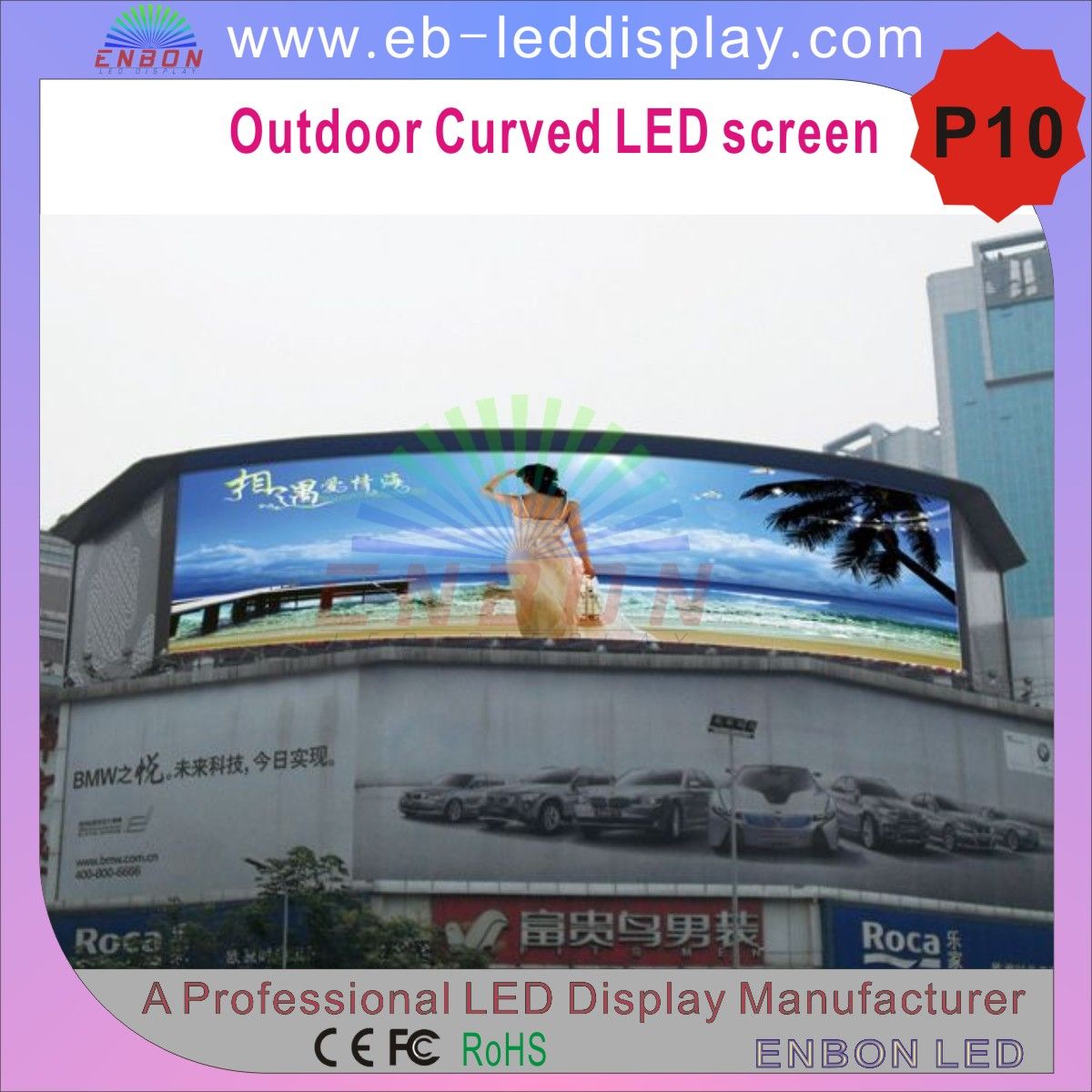

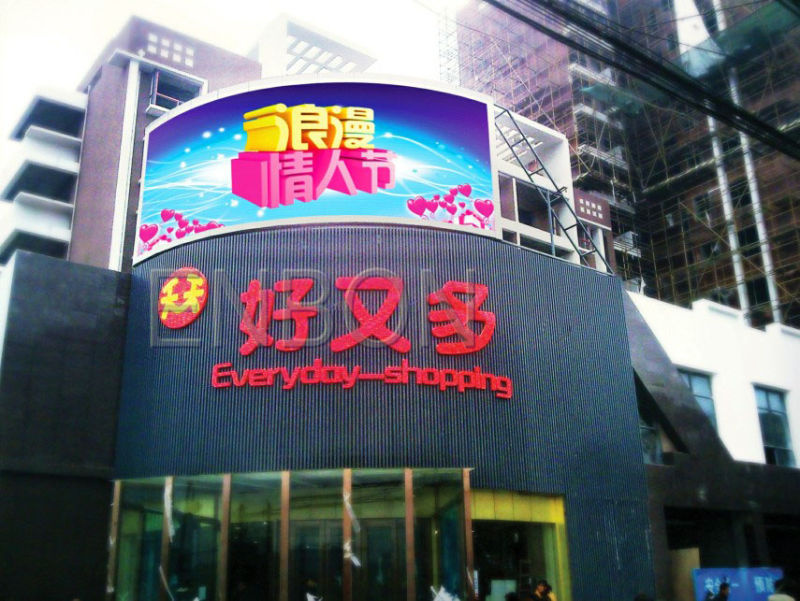

P10 Outdoor RGB Digital LED Advertising Display
Product Description

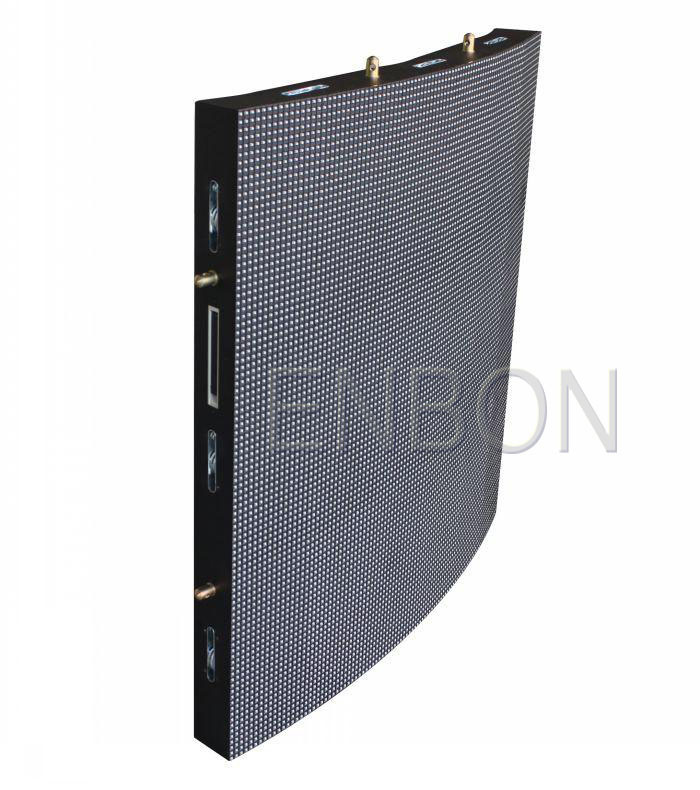

P10 Outdoor RGB Digital LED Advertising Display, Irregular shape,can be arced, Circle, cylindrical. The radian of LED sign degree can be designed according to the radian of construction. A graceful curve makes your screen very unique and beautiful! IT CAN BE FLAT TOO
ENBON curve LED Display features:
1. Radian is elegant, no big gap between adjacent cabinets;
2. The radian degree can be designed according to the radian of construction
3. Concave design and convex design are both available
4. Front maintenance is possible
5. IP65 waterproof standard for outdoor screen.
6. High brightness, High refresh rate and quality is very stable
7. Material of cabinet can be coated iron or aluminum
8. Competitive prices
9.SMD 3535 or DIP346 LED both avaibla
P10 LED display is our COMPETITIVE PRODUCTS.Both the price and the quality are very good.We also have many other products,please go to the "Home" page.
We respond in 1 day,welcome to enquire!
Technical Prameters
PROJECT
P10 Outdoor RGB Digital LED Advertising Display
Pixel pitch
10mm
Pixel density
10000 Pixels/sqm
Module size(W*H)
160 (mm)W*160 (mm)H
Module pixels(W*H)
16 Pixels(W)*16 Pixels(H)
Pixel configuration
1Red 1Green 1Blue
Drive mode
constant current driving 1/4 scan
LED lamp type
Epistar DIP346
Cabinet size(W*H*D)
800 (mm)W*800 (mm)H ( Optional )
Cabinet resolution
80 Pixels(W)*80 Pixels(H)
Color scale
65,536 degree
View angle(H/V)
110/70 degree
Brightness (White balance)
≥7500cd/sqm.
Power consumption(one cabinet)
Max:750W/sqm. Average:250W/sqm.
Operating Voltage
AC100V±10% or 220V ±10%; 50---60HZ
Net weight
55 Kg/sqm
Operating temperature
-20°C----+50°C (Customized power supply:-45°C---+60°C)
Operating humidity
10%_95%RH
Life time
≥100,000hours
MTBF
5,000 hours
Whole Display Flatness
≤0.1mm Juncture
Frame frequency
>60 Hz/s
Refresh rate
≥2000Hz /s
Control distance
100m (without repeater), single mode fiber:20km, multi mode fiber: 500m
Power
110V/220V±15% 50--60Hz
LED control system
LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
