North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:320mm*320mm:
Cabiet Size:960mm*960mm/1280mm*960mm
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Pitch:
20mm
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
350W / m²
Pixel Density:
10000 dot / m²
Scanning Mode:
Static Scan
Display Type:
LED Video Display
Application:
Advertising
Certification:
FCC,ISO9001
Product Description
The specifications of modules
Items:
Parameter
Product Model:
p20 full color module
Module size:
320mm*320mm
Pixel pitch:
p20 mm
Pixel density:
2500dots/m2
Pixel configuration:
RGB
Module resolution:
16dots(W)*16dots(H)
Module maximum power: consumption:
20W
Module Thickness:
25CM
Module Weight:
0.8kg
Driving method:
Constant Current Driving
Scanning method:
Static Scaning
Interface:
HUB75
Brightness:
≥7000cd/m2
The specifications of cabinets
Cabinet size:
1280mm*960mm
Module quantity:
12
Power supply:
5V/40A 5V/60A
Cabinet resolution:
64*48dots
Optimal viewing distance:
15M~80M
Optimal viewing angle:
160°(W) 120°(H)
RHWorking temperature:
Work :-20ºC~+50ºC
System operating humility:
10%-95%
The specifications of power supplier
Operating Voltage:
AC220V±10%
Average power consumption:
100W/H
Maximum power consumption:
≤550W/
Electric current:
≤20mA(single LED)
The specifications of control card
Control Panels :
Pentium4 or above
Operating system:
WIN98/2000/NT/XP
Control model:
Synchronization control
The specifications of the main technical parameters
Driving device:
IC Constant Current Driving
Refresh rate:
≥600HZ
Grey scale:
RGB Each 256, can display 16.7M colors)
MTBF:
≥9000hours
Power switch:
Automatic Switch
Display Mode:
800*600/1024*768/1280*900

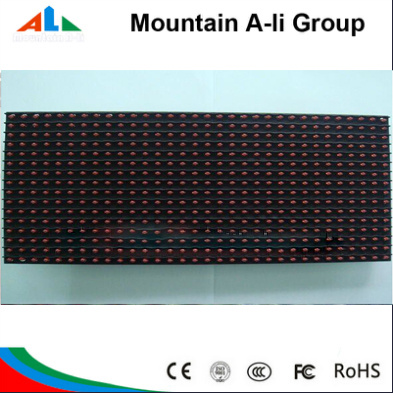

P20mm Outdoor LED display Full color Waterproof
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
