| Prod Model: |
P10 Outdoor Advertising LED Display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
FC,Is9001 |
Product Description
P10 Outdoor Full Color LED Screen1.Stable capability for outdoor P10 digital led screen
2.High brightness for P10 outdoor digital led display screen
3.Good after-sales for P10 led display screen
4.True color reproduction for P10 advertising led display
5.Ultimate system reliabilit for P10 outdoor digital led display screen price
6.CE, RoHS, ISO9001 certification
7.10years experience
8.Simple cabinet, easy to assemble, fast-set up
Our service 1. Your inquiry related to our products or price will be replied in 24hrs2. OEM&ODM, any your customized lightings we can help you to design and put into product3. Distributorship are offered for your unique design and some our current models4. Protection of your sales area, ideas of design and all your private information5. Top quality+Reasonable price+Responsible After Service=Successful & Win6. Chipshow can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display. Additional Info
1.Trademark:Mountain A-Li
2. Packing:Woodencase and Flight Case
3.Standard:According to cabinet size and module quantity need
4.Origin:China Dongguang Shenzhen
5.HS Code:8531200000
6.Production Capacity:2000 Square Meters/Month
Parameter| The specifications of modules |
|
|
| Items | Parameter |
|

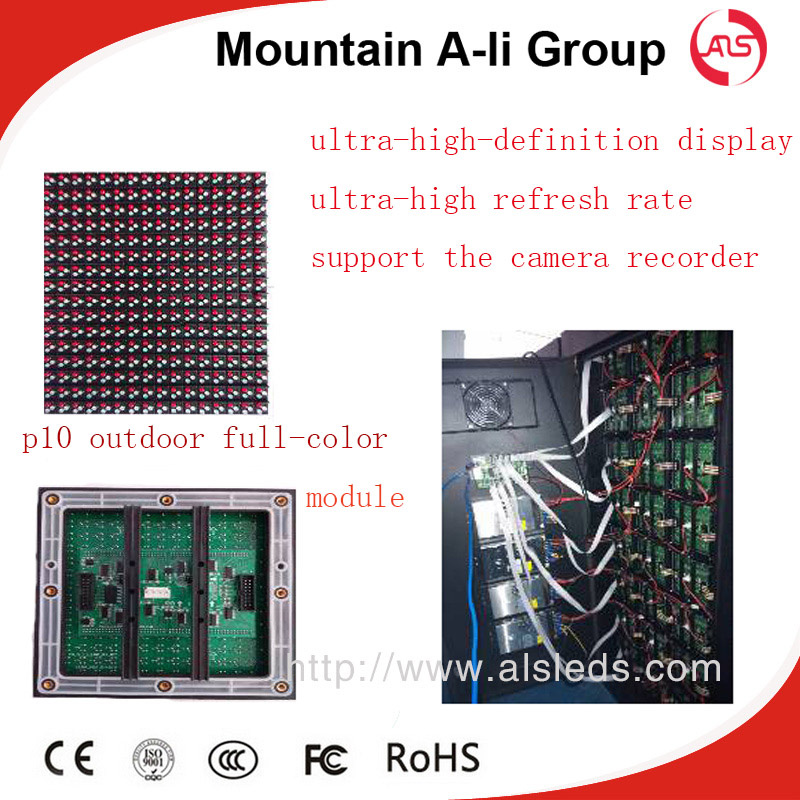

| Product Model | p10 Outdoor Full Color LED Module |
|
| Module size | 160mm*160mm |
|
| Pixel pitch | 10mm |
|
| Pixel density | 10000dots/m2 |
|
| Pixel configuration | 1R1G1B |
|
| Module resolution | 16dots(W)*16dots |
|
| Module maximum power consumption | 20W |
|
| Module Thickness | 25CM |
|
| Module Weight | 0.5kg |
|
| Driving method | Constant Current Driving |
|
| Scanning method | 1/4scan |
|
| Interface | HUB75 |
|
| Brightness | ≥7500cd/m2 |
|

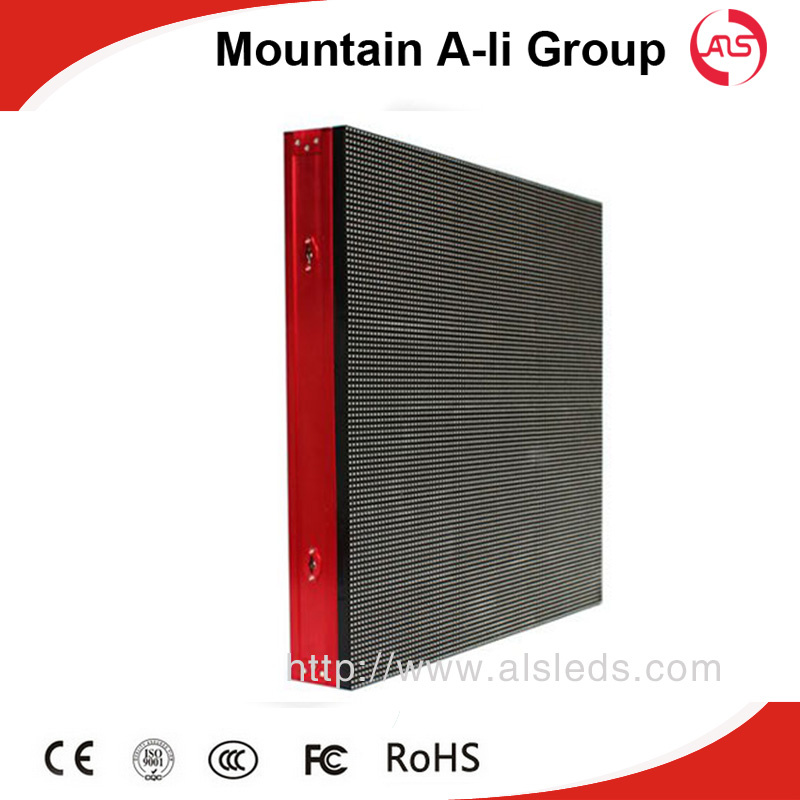

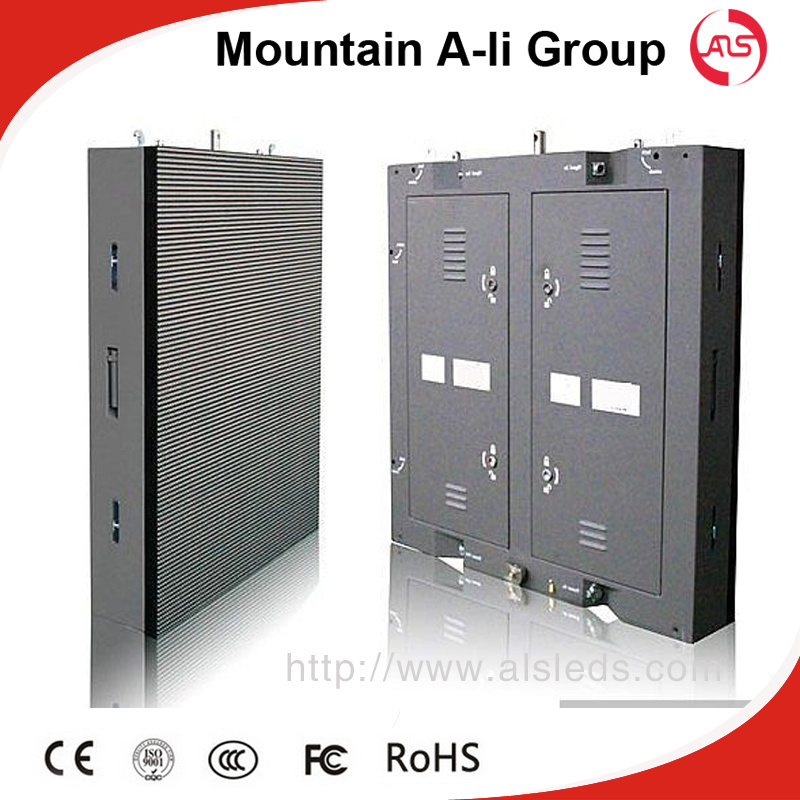

| The specifications of cabinets |
|
|
| Cabinet size | 960mm*960mm |
|
| Module quantity | 36pcs |
|
| Power supply | 5V/40A 5V/60A |
|
| Cabinet resolution | 96*96dots |
|
| Optimal viewing distance | 10M~50M |
|
| Optimal viewing angle | 160°(W) 120°(H) |
|
| RHWorking temperature | (Work :-20°C~+60°C) |
|
| System operating humility | 10%-95% |
|
| The specifications of power supplier |
|
|
| Operating Voltage | AC220V±10% |
|
| Average power consumption | 350W/H |
|
| Maximum power consumption | ≤700W/m2 |
|
| Electric current | ≤20mA(single LED) |
|
| The specifications of control card |
|
| Control Panels | Pentium4 or above |
|
| Operating system | WIN98/2000/NT/XP |
|
| Control model | Synchronization with PC |
|
| The specifications of the main technical parameters |
|
|
| Driving device | Constant Current Driving |
|
| Refresh rate | ≥600HZ |
|
| Grey scale | RGB Each 256, can display 16.7M colors) |
|
| MTBF | ≥9000hours |
|
| Power switch | Automatic Switch |
|
| Display Mode | 800*600/1024*768/1280*900 |
|
