Module Size:
160mm * 160mm
Module Resolution:
16dots(W) * 16dots(H)
Max Power Consumption:
20W
Driving Method:
Constant Current Driving
Optimal Viewing Distance:
10m - 50m
Optimal Viewing Angle:
160o(W) 120o(H)
Relative Humidity:
10% - 95%
Operating System:
Win98/2000/Nt/XP
Control Mode:
Synchronization with PC
Refresh Rate:
≥600Hz
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Pitch:
10mm
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
350W / m²
Pixel Density:
10000 dot / m²
Scanning Mode:
1/4 Scan
Display Type:
LED Video Display
Application:
Advertising
Certification:
FCC,EMC, IP65
Product Description
Product features: 1) Ultra-high- definition display, high-precision seamless 2) The new structure designed to meet the lifting, stacking requirement, to meet the requirements for indoor and outdoor 3)Ultra-high refresh rate, support the camera recordor , to ensure a clear picture quality 4) Quick editing of assembly, disassembly system, saving unloading time
Product Description

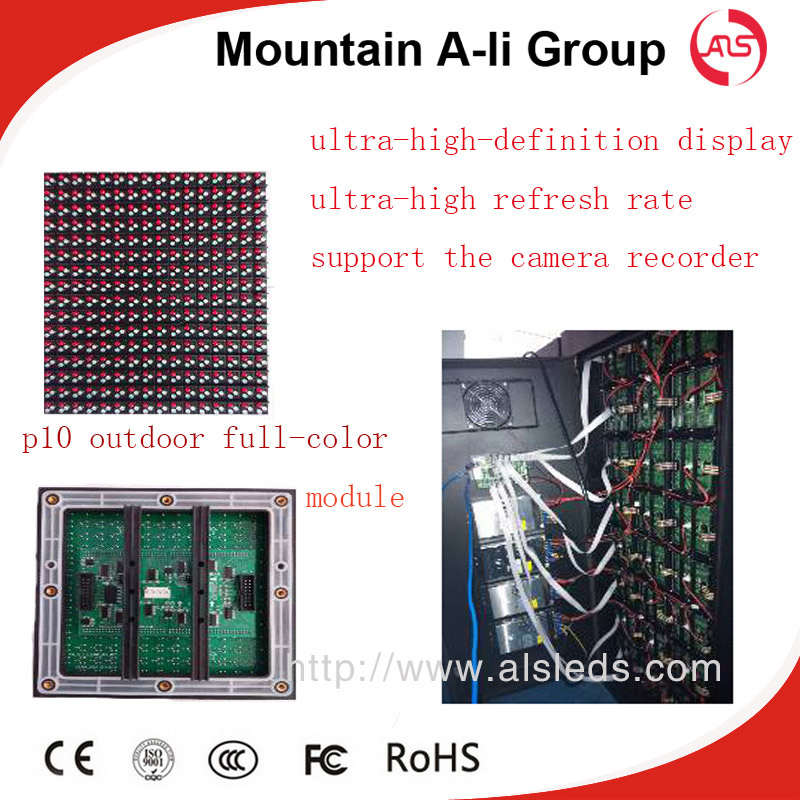

P10 Outdoor Full Color Module Technical Parameters
Item
Parameter
Model
P10 full color LED module
Module size
160mm * 160mm
Pixel pitch
10mm
Pixel density
10000dots/m²
Pixel configuration
1R1G1B
Module resolution
16dots(W) * 16dots(H)
Max power consumption
20W
Module thickness
25mm
Module weight
0.5KG
Driving method
Constant current driving
Scan method
1/4 scan
Interface way
HUB75
Brightness
≥7500cd/m²
Cabinet size
960mm * 960mm
Quantity of module
36pcs
Power supply mode
5V/40A 5V/60A
Cabinet resolution
96*96dots
Optimal viewing distance
10M - 50M
Optimal viewing angle
160º(W) 120º(H)
Environment temperature
-20º ~ +50º
Relative humidity
10% - 95%
Operating voltage
AC220V ± 10%
Average power
350W/H
Max power consumption
≤700W/m²
Current
≤20MA(single LED)
Control mode
Synchronization with PC
Driving device
IC constant current driving
Refresh rate
≥600HZ
Gray/Color
RGB each 256 grade,can display 16.7M color
MTBF
≥9000hours
Power switch
Automatic switch

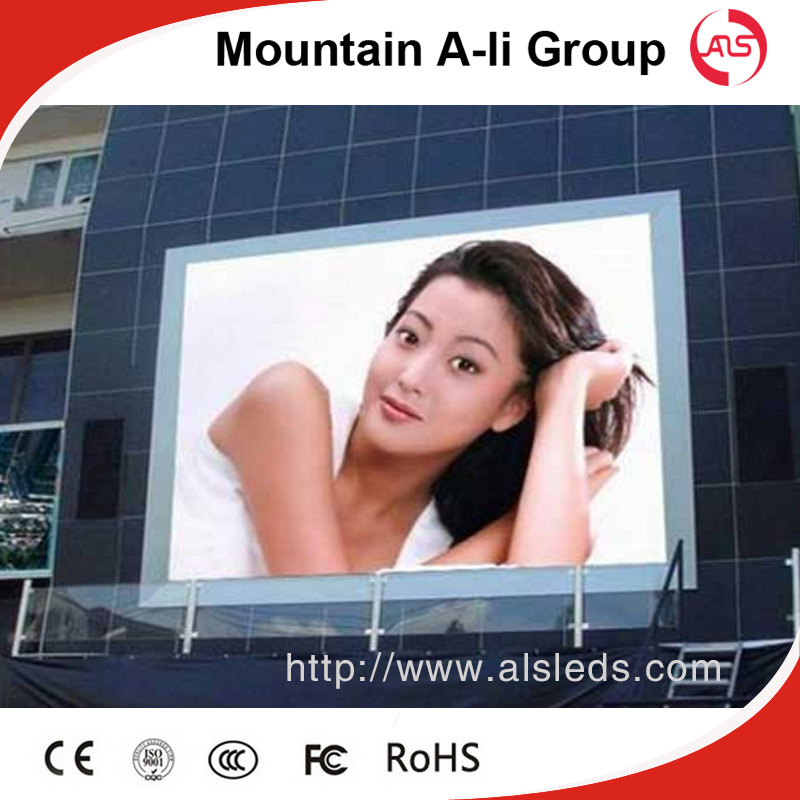

Application: 1) Large hall, sports arena, banking, telecommunications, 2) Government agencies, terminal, pier, railway stations, 3) The stock market and othertrading marketm medical systems, 4) Electric power,galleries, and other publicity, adverting, information dissemination, the guide places, and so on.
product certificates: product picture:
