P10 High Quality Full Color LED Billboard / Outdoor Advertising LED Display

Product Description

Product Features

1. Ultra HD display,high-precision seamless,
2. accurate to 0.1mm gap
3. New design,meet the requirement of lifting, stacking,
4. meet the requirement of indoor&outdoor
5. Ultra-high refresh rate,can support video shooting,
6. clear picture quality assurance
7. Quick and easy assembly,removing System,save loading time

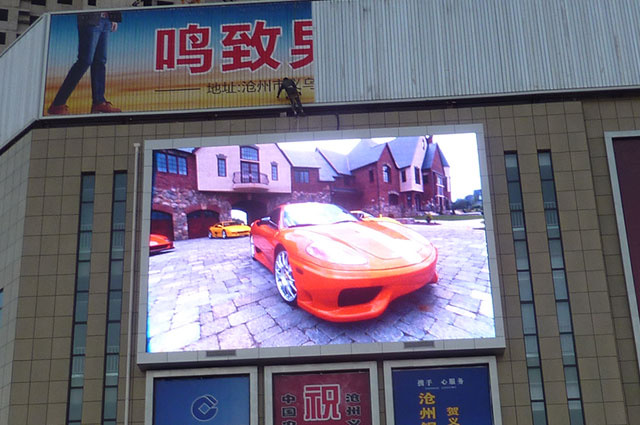

Using Range

1. Widely used in large venue,stadiums,bank,government,
2. terminal,dock,station,stock market,medical systems,
3. electricity,exhibition etc.                                                                                      The Technical Parameters of  Outdoor p10 led screen

   Item	Parameter
   Product model	P10 full color module
   Module size	160mm*160mm
   Pixel pitch	10mm
   Pixel density	10000dots/m2
   Pixel configuration	1R1G1B
   Module resolution	16dots(W)*16dots(H)
   Maximum power consumption	20W
   Module thickness	2.5cm
   Module weight	0.5kg
   Driving method	Constant current driving
   Scan mode	1/4 scan
   Interface type	HUB75
   Brightness	≥8000cd/m2
   The specifications of cabinet
   Cabinet size	960mm*960mm
   Module quantity	36pcs
   Power supply	5V/40A 5V/60A
   Cabinet resolution	96*96dots
   Optimal viewing distance	10m~50m
   Optimal viewing angle	160°(W) 120°(H)
   Temperature	Storage:-35ºC~+85ºC Working:-20ºC~+50ºC
   System operating humility	10%-95%
   The specifications of power supply
   Operating voltage	AC220V±10%
   Average power consumption	350W/H
   Maximum power consumption	≤700W/
   Current	≤20mA(single LED)
   The specifications of control system
   Computer	Pentium4 or above
   Operating system	WIN98/2000/NT/XP
   Control model	Synchronization control
   The specifications of the main technical parameters
   Driving device	Constant current driving
   Refresh rate	≥600Hz
   Grey scale	RGB each 256 grade, can display 16.7M colors)
   MTBF	≥9000hours
   Power switch	Automatic switch
   Display mode	800*600/1024*768/1280*900
