P10 High Brightness Outdoor EMC Energy Saving LED Display/IP65
specification:
Part Number | HERO-OD |
Resolution | 16(H)×16(V) |
Pixel Pitch | 10mm |
LED Configuration | 1R1G1B DIP346 |
Pixel Density | 10000pixels/ m2 |
Module Size | 160*160mm |
Driving IC | MBI 5024 |
Driving Method | Static Scan, Constant Current |
Cabinet Weight | 50~60kg/sq.m. |
Mechanical Ratings |
Hanging Weight Support | 2T |
Surface Flatness | ±0.25mm |
Optical Ratings |
Brightness | 7000~8500cd/ m2 |
View Angle | 110°/70° |
Gray Scale | 16bits |
Display COLOR | 281trillion |
Brightness Adjustment | 0~100% |
Power Supply |
Operation Power | 50~60Hz |
Max. Power Consumption | 300W/ m2 |
Average Power Consumption | 150W/ m2 |
Control System |
Control Mode | Synchronous display with control PC by DVI |
Frame Update Frequency | 60~85Hz |
Screen Refresh Frequency | 300~1000Hz |
Gamma Correction | -5.0~+5.0 |
Support Input | Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
Control Distance | Ethernet cable<120m or Fiber Optic<10Km |
Support VGA Mode | 1024×768, 1280×1024, 1600×1200, 1920×1280 |
Brightness Correction | Pixel, Module, Cabinet |
Environmental |
Operating Temperature | -20°~+60° |
Operating Humidity | 10~95% RH |
Operating Life | 100,000hours |
MTBF | 10000hours |
Protection Level | ~ |
Out of Control Rate | <0.02% |
Description:
1.EMC &TUV standard and certification.
2.Totally enclosed cabinet design,not only IP65 waterproof,but also reduce signal interference.
3.Energy saving,we use 3.8v low voltage meanwell power supply,at the same brightness this LED display can save 15~25% energy,the power consumption would be 300w/sq.m max,and 150w/sq.m average.
4.D-SUB connector between the LED modules instead of the general flat cables,it has more stable signal transmission,each LED module has ground wires connect to the aluminum cabinet,and each signal cable ahs the magnet ring,can effectively avoid the interference of other signals.
5.Most cost-effeciency. and rich experience on producing.
6.Each power supply and receive cards wrapped up by the aluminum box,more safe and better anti-interference.
Applications:

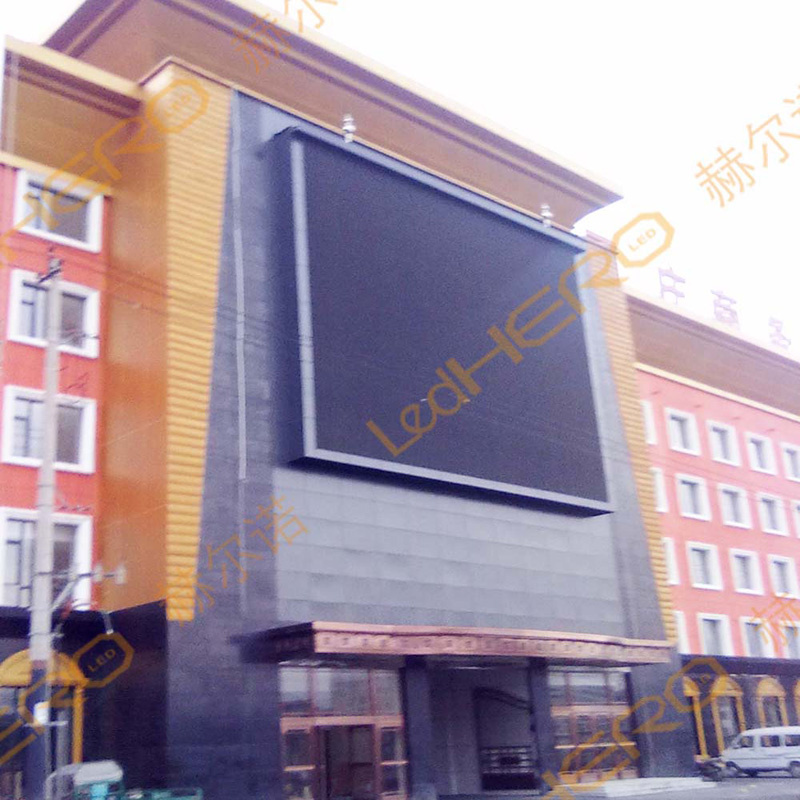

Widely used in shopping malls,commercial streets,airport and other advertising.
Packing and transportation
Professional packaging:wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Faultlessly solve your worries in the transportation.
About Hero
7-year's experience in LED screen, our factory has the ability of processing, researching and developing led display to ensure the prolificacy.A strict quality control process to make sure the led display screens is with high quality.
After-sale service
1) Warranty:
Free to solve the quality problems to ensure that equipment normal operation in the warranty period . At any time, we bear all the responsibility, when the problem is from the product itself.
2) Free maintenance:
Free warranty in the warranty period.
Only charge the cost of raw materials, provide spare parts and maintenance services for the lowest price after the warranty period.
3)quick response:
Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
4) Free support:
Through telephone or network to provide service support in real time, or with the help of a network for remote debugging support (software), to solve the problem.
