LED Module Size:
160mm*160mm
LED Module Resolution:
16 Dots*16 Dots
LED Module Weight:
0.55kg
Brightniess:
7500-8500mcd/Square Meter
Cabinets Size:
960mm*960mm
Best View Distance:
10-100m
LED Modules Max Power:
25W
Modules Thickness:
25cm
Warranty:
2 Years
Display Type:
LED Video Display
Tube Chip Color:
Full Color
IP Rating:
IP67
Application:
Advertising
Pixel Configuration:
1R, 1G, 1B
Pixel Pitch:
10mm
Display Function:
Video Display
Scanning Mode:
1/4 Scan
Certification:
FCC
Pixel Density:
10000 dot / m²
Average Power Consumption:
600W / m²
Product Description
Mountain A-Li Group Electronic Company Professional development manufacturing LED display system products and lighting products, was founded in 2000, own workshop area 20000 m2, branch office and agents cover all over China, with about 300 employees.
Products list 1. P3\P4\P5\P6\P7.62\P10 Inndoor Full Color Led Display; 2.P6/P7/P8 /P10/P12//P16/P20/Outdoor Full Color Led Screen
Application and Market 1. Application Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc 2. Market: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
Our service 1. Your inquiry related to our products or price will be replied in 24hrs 2. OEM&ODM, any your customized lightings we can help you to design and put into product 3. Distributoership are offered for your unique design and some our current models 4. Protection of your sales area, ideas of design and all your private information 5. Top quality+Reasonable price+Responsible After Service=Successful & Win
Trade Terms 1. Package: Anti-shaking wooden package, Air flight case or Carton package 2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery 3. Shipping freight are quoted under your requests 4. Shipping port: Shenzhen, Mainland China 5. Warranty time: 7years 6. Delivery time: 3-12working days
Why choosed us :
1.Price Advantage: No.1 cost effective 2.Quality advantage: serious QC control system , best material 3.Service advantage: after service dept& Tech Dept. Perfect after sales system

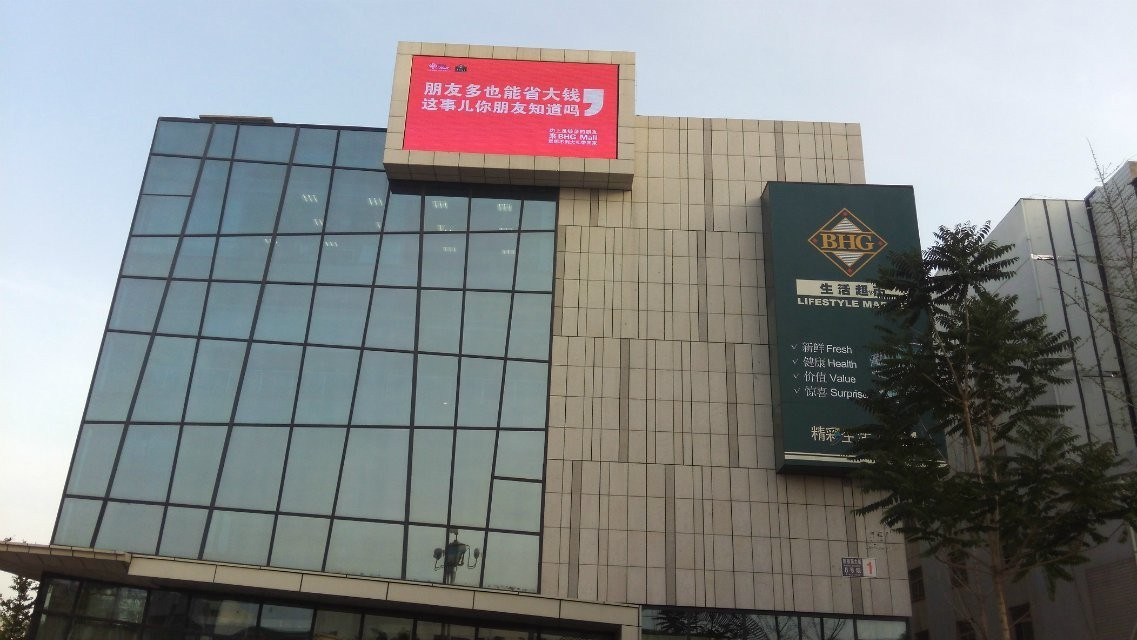

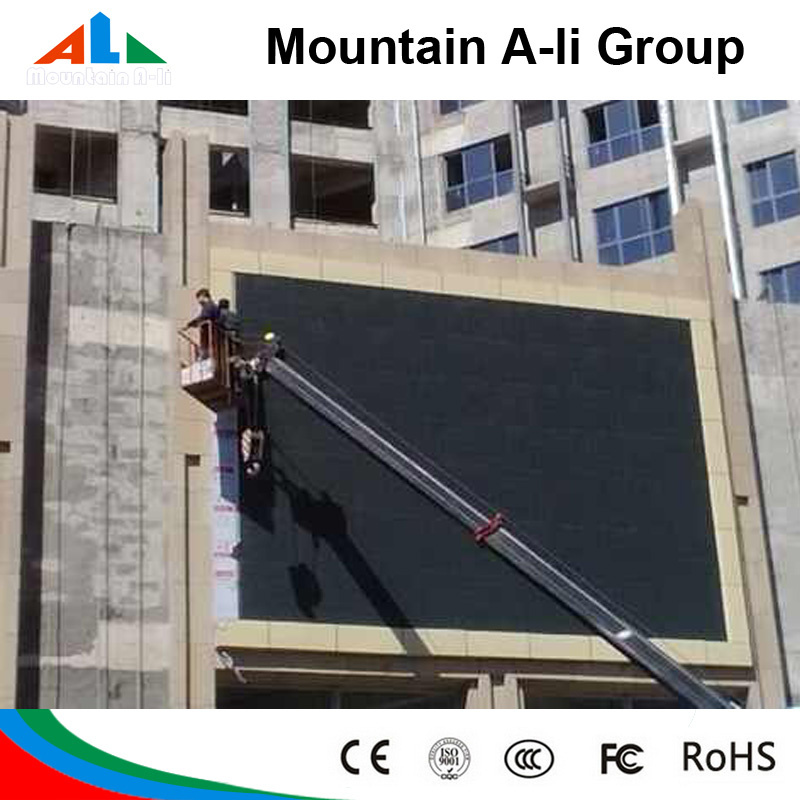

Project Picture

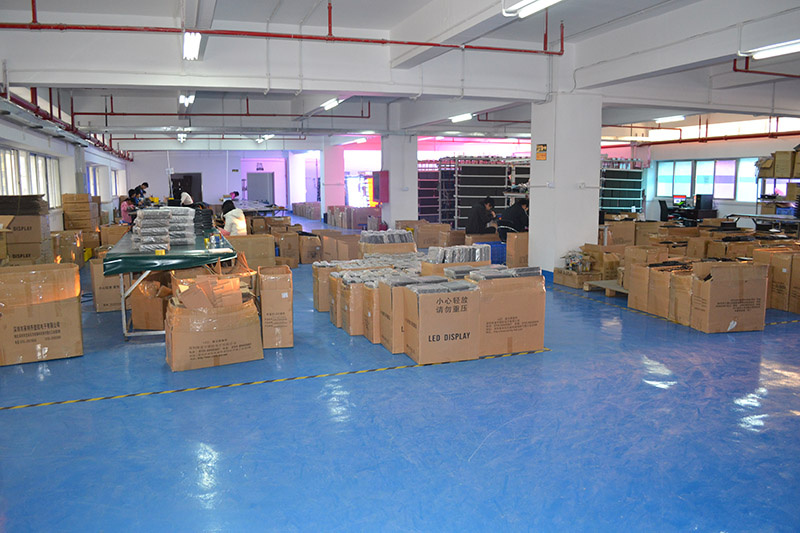

Packing Picture Goods Productiong Line
The specifications of modules
Items
Parameter
Product Model
P10 Full Color Led Module
Module size
160mm*160mm
Pixel pitch
10mm
Pixel density
10000dots/m2
Pixel configuration
1R1G1B
Module resolution
16dots(W)*16dots
Module maximum power consumption
20W
Module Thickness
25CM
Module Weight
0.55kg
Driving method
Constant Current Driving
Scanning method
1/4 scan
Interface
HUB75
Brightness
≥7500-8000cd/m2
The specifications of cabinets
Cabinet size
960mm*960mm
Module quantity
36pcs
Power supply
5V/40A 5V/60A
Cabinet resolution
96*96dots
Optimal viewing distance
10M~100M
Optimal viewing angle
160°(W) 120°(H)
RHWorking temperature
(Work :-20°C~+60°C)
System operating humility
10%-95%
The specifications of power supplier
Operating Voltage
AC220V±10%
Average power consumption
350W/H
Maximum power consumption
≤700W/m2
Electric current
≤20mA(single LED)
The specifications of control card
Control Panels
Pentium4 or above
Operating system
WIN98/2000/NT/XP
Control model
Synchronization with PC
The specifications of the main technical parameters
Driving device
Constant Current Driving
Refresh rate
≥600HZ
Grey scale
RGB Each 256, can display 16.7M colors)
MTBF
≥9000hours
Power switch
Automatic Switch
Display Mode
800*600/1024*768/1280*900
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc

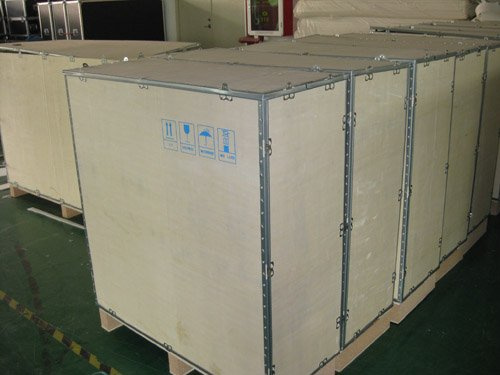

Packing Picture
