Model:

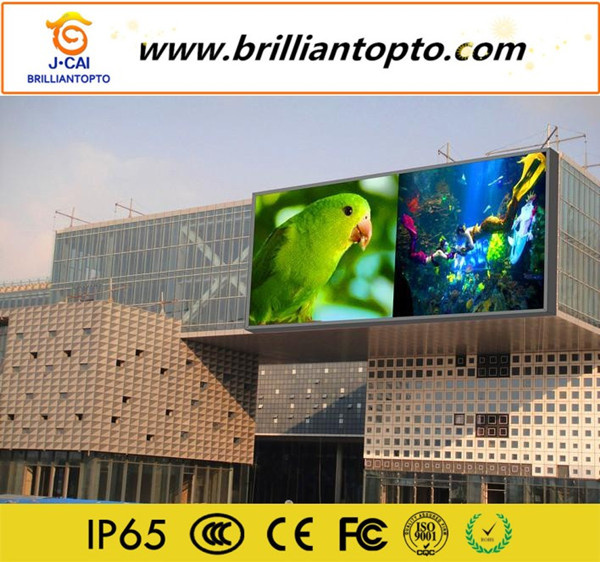

Outdoor LED Electronic Display
Usage:
Animation & Video Advertising
Main Composition:
Module, Cabinet, SMPS, Controller
Whole Brightness:
5500 Nits
Viewing Distance:
Equal or Above 10m
Main Installation Way:
Column & Mounting Against Wall
Horizontal Viewing Angle:
120 Degree
Vertical Viewing Angle:
60 Degree
Max. Power Consumption:
625 Walt/Sqm
Control System:
Linsn, Nova, Colorlight
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Pitch:
10mm
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Pixel Density:
10000 dot / m²
Scanning Mode:
1/4 Scan
Display Type:
LED Video Display
Application:
Advertising
Certification:
FCC, ISO9001:2008
Average Power Consumption:
414W/Sqm
Product Description
√ 10 Years == √ Factory == √ Own Exporting License == √ Quality Control == √ Competitive Price == √ Own Technology == √ OEM==Short Delivery Time
Main Features 1) Model: Outdoor High Brightness LED Electronic Display 2) Application occasion: building facade, roadside column, etc. 3) Application user: high requirement on brightness & more vivid and higher quality image 4) Main strength: High cost-performance ratio & good using experience 5) Key features: High Brightness - High Refresh Rate - Low Power Consumption - Efficient Performance 6) Product performance: 100,000 hours efficient life-span & 10,000 hours MTBF. 7) Standard configuration: 200W power supply; LINSN RV901/908 receiver; water-proofed cabinet (Customization available)

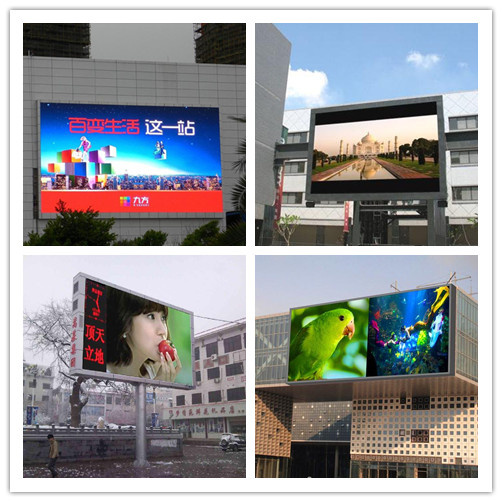

Application Cases

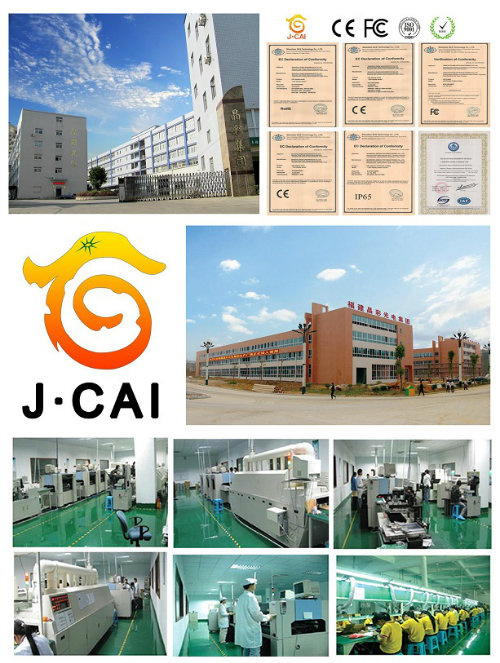

Brief Company Introduction 1) Company name: Brilliantopto Limited Company 2) Foundation year: 2005, 10 years history 3) Strength rank: top 3 among same-grade manufacturers in China 4) Registered capital: USD 3.5 million 5) Workshop area: 20,000 square meters (Headquarter & branch factory) 6) Company goal: striving for providing No.1 cost-performance LED display
Products Available 1) All-series product type: indoor / outdoor / semi-outdoor - single / dual / full color 2) Pixel pitch for indoor: P1.9 /P2.5 /P3 /P4 /P5 /P6 /P7.62 /P8 /P10 Pixel pitch for outdoor: P6 /P8 /P10 /P12 /P12.5 /P13.33 /P16 /P20 /P25 3) LED lamp chip: Opto, Epistar, Silan, Huacan, San'an 4) Cabinet type: steel cabinet, aluminum cabinet & die-casting cabinet 5) Package: Flight case, wooden box package & carton box and etc.
Our Service 1) Enquiry response time: within 12hrs. 2) OEM&ODM: design and produce your customized requirements. 3) Provide distributors customized design and models we already have. 4) Protect your sales area, design idea and all your private information. 5) Top quality + reasonable price + patient after-sales service. 6) Brilliantopto can also offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and LED large screen full color display.
Trade Terms 1) Package: anti-shaking wooden package, air flight case or carton package. 2) Payment: T/T, 30% deposit before production, 70% balance to be paid before delivery. 3) Free to support and train your operator. 4) Shipping port: Xiamen Port, China. 5) Warranty time: 1 year 6) Delivery time: 3-14 working days.
Six Main Elements for Installation of Outdoor LED Display 1) Install lightning protection devices on display and building Main display part and exterior cover must be grounded well, with grounding resistance of less than 3 ohms, thus discharging large current caused by lightning in time.
2) Water proof measures for LED display LED display and combination between display and building must be strictly water-proofed. LED display must adopt good drainage measures in the event of smooth water emissions. Pay attention to water and moisture proof. LED display is installed outside, facing poor working conditions, such as sun and rain, wind and dust. Getting wet and damp of Electronic equipment can cause serious short circuit, causing malfunction or a fire and resulting in losses.
3) Selection on chip Selection of industrial grade integrated chip with operating temperature between -40 ºC ~ 80 ºCcan prevent over low temperature in winter.
4) Installation of ventilation equipment This can keep internal temperature between -10 ºC ~ 40 ºC for LED display. Install axial flow ventilator on the back top of LED display. A certain amount of heat will be caused with normal running of LED display. If ambient temperature is too high and heat dissipation is not smooth, integrated circuit may not work properly, or even destroyed, thus display system failure to work.
5) Selection of ultra-high-brightness light-emitting diode To ensure long-distance visibility under strong ambient light conditions, ultra-high brightness light-emitting diodes must be selected. Contrast increase, wide audience sighting, long viewing distance and wide viewing angle are required.
6) Selection of display media with wide viewing angle The outer packaging of such display media, with wide viewing angle, pure color, consistent coordination and life span over 100,000 hours, is the most popular square tube with side cover. It is silicone sealed and metal-free assembly with exquisite appearance, durable usage, anti direct sunlight, anti-dust, water proof, anti high temperature and anti short circuit.
Product Detailed Specifications
No.
Items
Specs
1
Grey Level
16384 levels
2
Display Color
16777216 kinds
3
Best Viewing Distance
10~150 m
4
Frame Rate
≥60 Hz/s
5
Refresh Rate
>230 Hz (All grey level field)
6
Brightness Adjustment
256 level manual/automatic
7
Continuous Working Hours
>72 hours
8
Uniformity
Strong pixel light, even module brightness
9
Malfunction Dot Rate
<0.01‰
10
IP Protection Grade
IP65
11
Average Power Consumption
≤442 W/m2
12
Max. Power Consumption
≤625 W/m2
13
Working Voltage
AC220V/380V±10%,50Hz
14
Storage Temp.
-30ºC ~ 90ºC
15
Working Temp.
-20ºC ~ +50ºC
Jingcai (Fujian) Photoelectric Co., Ltd. Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.
Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.
Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
