LED Encapsulation:
SMD3535
Module Size:
320X160mm
Module Resolution:
32X16dots
Protection Grade:
IP65
Tube Chip Color:
Full Color
Display Function:
Video Display
IP Rating:
IP65
Pixel Pitch:
10mm
Pixel Configuration:
1R,1G,1B
Pixel Density:
10000 dots/m²
Scanning Mode:
1/4 Scan
Display Type:
LED Video Display
Certification:
CCC
System Operating Platform:
Win XP, Win 2000, 98, Nt,Win7/8
Brightness:
6000CD/Sq.M
Product Description
P10 SMD3535 outdoor full color led display screen for rental or permanent install,with high brightness,good display performance and competitive price
1. SMD led encapsulation confirm wide view angle and slim thickness
2. Anti-corrosion,antifogging,and good waterproof IP65,long life span
3. High pixel density, Long view distance, High definition, Good uniformity
4. Lower power consumption and energy saving,good enironment protection

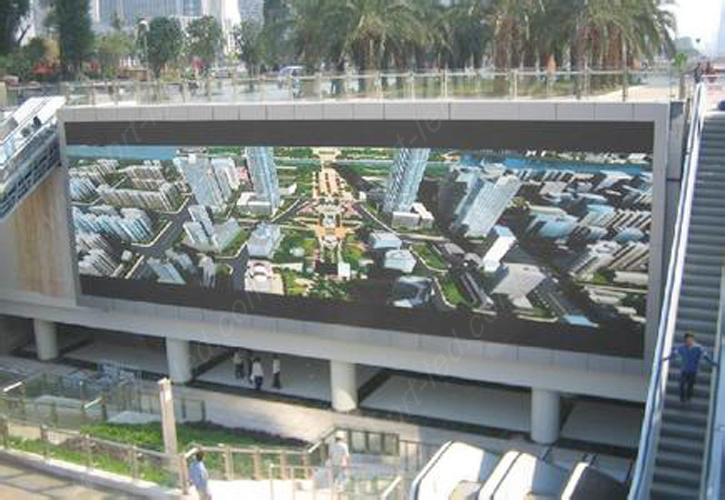

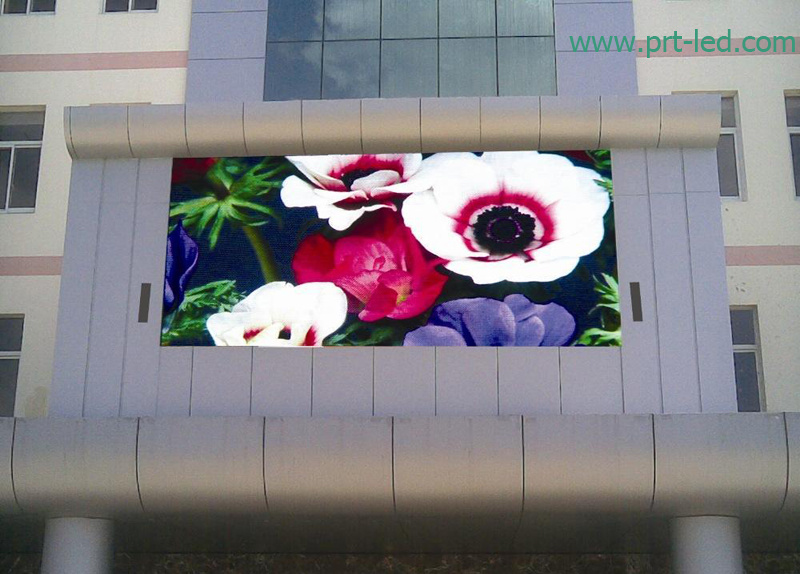

5. Can be fixed on the wall, on the street, or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, antimation etc, connect with PC computer or network, also can remoto control with asynchronous system.
6.Widely used for commercial led display,advertising led display, stage led display,mobile led display. traffic led display,rental led display, sports led display etc.
Outdoor P10 Full Color LED Display Main Parameters
Visual Characteristics
Unit
Value
Pixel Pitch
mm
10.0
Pixel Density
Dots/sq.m
10000
Pixel Configuration
SMD3535
Cabinet Resolution
dots
80×80/128×96
Refresh Rate
Hz
≥1800
View Angle(H/V)
°
140/140
Brightness
nits
≥6000
Gray Scale
Bit
16
IP Rating
65
Power Consumption(Max/Avg)
W/sq.m
1000/300
Input Voltage(AC)
V
110~240
Modular Characteristics

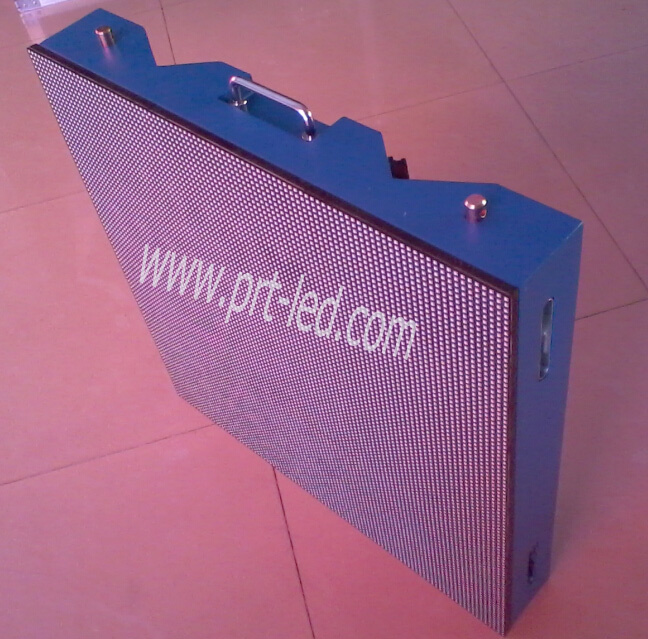

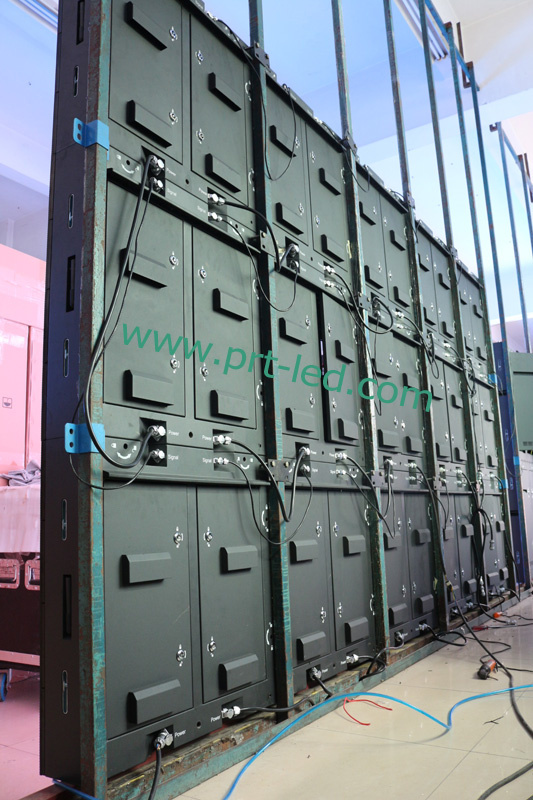

Cabinet Size(W×H×D)
mm
800×800/1024χ960
Cabinet Material
Aluminum/Iron
Cabinet Weight
Kg
35/40
Module Size(W×H)
mm
320×160
Environment
Operation Temperature
ºC
-20~+40
Operating Humidity
10%~90%
Driving Mode
1/4 Scan
Control Distance
Cat 5E <100m,Single mode fiber<10Km
