Model No:
Outdoor P8mm Full Color LED Display
Module Size:
256mm*128mm
Cabiet Size:
768mm*768mm
Brightness:
≥7500CD/M2
Best Viewing Distance:
8-50m
Best Viewing Angle:
160°(W) 120°(H)
Refresh Rate:
≥600Hz
Mean Time Between Failures:
10000 Hours
Scanning Method:
1/4 Scan
Module Thickness:
2.8cm
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
300W / m²
Scanning Mode:
1/4 Scan
Display Type:
LED Video Display
Application:
Advertising
Certification:
FCC,EMC,IP65
Pixel Pitch:
8mm
Pixel Density:
15625dots/M2
Product Description

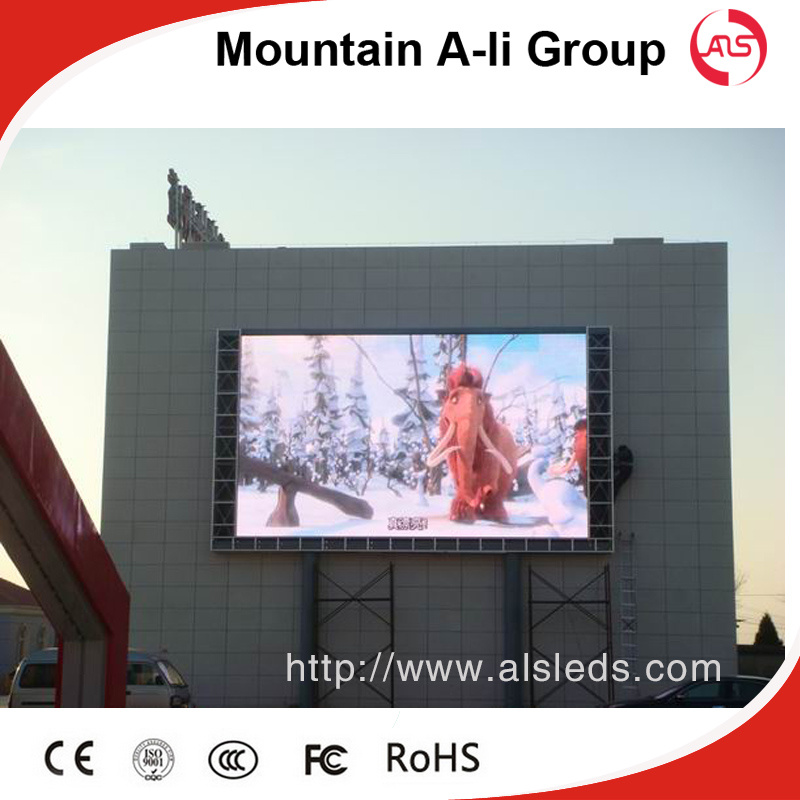

Outdoor P8mm Full Color LED Display
Features: 1. High brightness. Use DIP LEDs, keeps the display content visible even if facing the strong sunshine directly. 2. With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray. 3. Waterproof design, completely outdoor use. 4. Easy for assembling and connection with the connector added. 5. High color uniformity and clear image can bring you a vivid audio visual effect. 6. Both front and rear access are available. 7. Good LED Chips, with large viewing angle, lowe power consumption and good color uniformity. 8. Easy for maintenance. 9. Good quality raw material, accurate technique and careful inspection insures the high quality of LED display.
Our service: 1. Inquiry response time: within 24hrs. 2. OEM&ODM: design and produce your customized requirements. 3. Provide distributors customized design and models we already have. 4. Protect your sales area, design idea and all your private information. 5. Top quality + reasonable price+ patient after-sales service. 6. Mountain A-Li Group can also offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and LED large screen full color display
Trade Terms 1. Package: Anti-shaking wooden package, Air flight case or Carton package 2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery 3. Shipping freight are quoted under your requests 4. Shipping port: Shenzhen, Mainland China 5. Warranty time: 2 years 6. Delivery time: 3-12 working days
unit module
Item
Parameter
Product model
P8Full Color LED Module
Module size
256mm*128mm
Pixel pitch
8mm
Pixel density
15625CD/m2
Pixel configuration
1R1G1B
Module resolution
32dots(W)*16dots(H)
Maximum power consumption
25W
Module thickness
2.8CM
Module weight
0.55kg
Driving method
Constant Current Driving
Scan mode
1/4scan
Interface type
HUB75B
Brightness
≥7500CD/m2
the cabinet
Cabinet size
768mm*768mm
Module quantity
18PCS
Power supply
5V/40A 5V/60A
Cabinet resolution
96*96dots
Optimal viewing distance
8m~50m
Optimal viewing angle
160°(W) 120°(H)
RH Working temperature
Storage:-35°C~+85°C
Working:-20°C~+50°C
System operating humility
10%-95%
Power
Operating voltage
AC220V±10%
Average power consumption
350W/H
Maximum power consumption
≤700W/
Current
≤20mA(single LED)
Control system
Computer
Pentium4 or above p4 or above
Operating system
WIN98/2000/NT/XP
Control model
Synchronization with PC
Main technical parameter
Driving device
IC Constant Current Driving
Refresh rate
≥600Hz
Grey scale
RGB Each 256 grade,,can display 16.7 M color
MTBF
≥9000hours
Power switch
Automatic Switch
Display mode
800*600/1024*768/1280*900
