LED Encapsulation:
SMD3535
Module Size:
192X192mm
Module Resolution:
32X32dots
Cabinet Size:
960X960mm
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
350W / m²
Scanning Mode:
1/8 Scan
Display Type:
LED Video Display
Certification:
CCC
Pixel Pitch:
6mm
Pixel Density:
27777dots/Sq.M
Application:
Advertising, Stage Performance, Rental
Product Description
Outdoor HD P6 Full Color LED Advertising Display with high brightness and good waterproof for permanent install
Product Features:
1.SMD led encapsulation confirm wide view angle and high brightness
2. Good waterproof IP65,meet to any bad weather, long life span
3. High pixel density, High definition, Good uniformity
4.With Rental design Cabinet with fast locks and aviation plugs,easy and quick to assemble without tools in short time
5.Low power consumption, good heat dissipation, friendly to environment
6.Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network, also can remoto control with asynchronous system.
7.Widely used for commercial advertising,promotion display, background video wall, mobile display. traffic sign board,sports stadium perimeter led display etc.

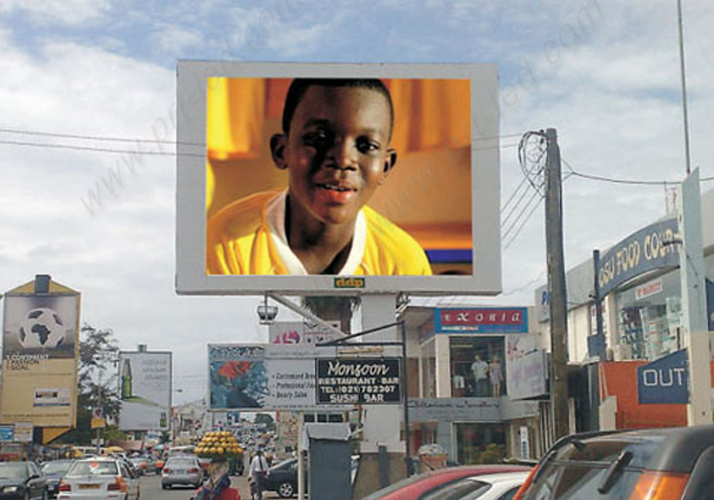

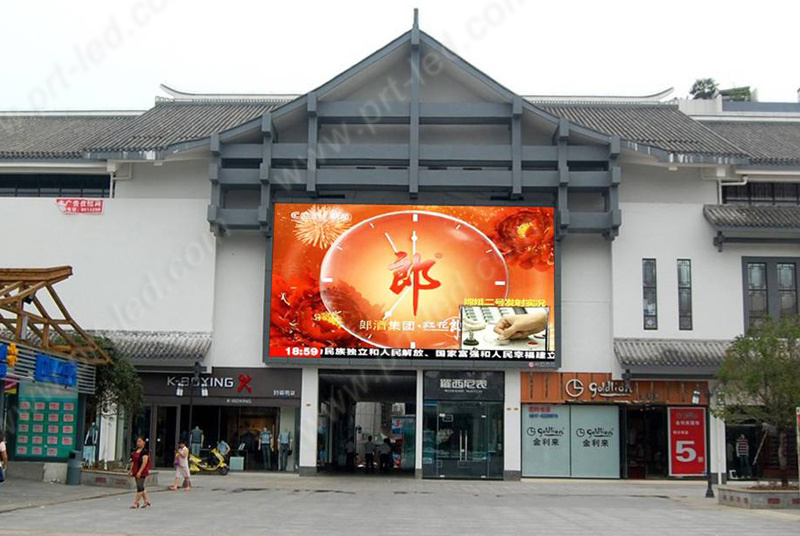

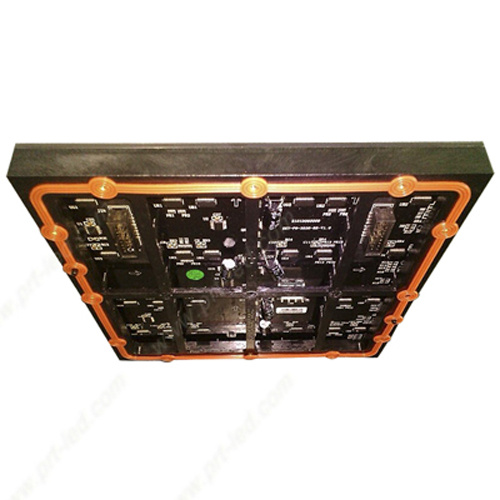

More pictures for reference:
P6 Outdoor Full Color LED Display Main Parameters
Visual Characteristics
Unit
Value
Pixel Pitch
mm
6.0
Pixel Density
Dots/sq.m
27777
Pixel Configuration
SMD3535
Cabinet Resolution
dots
96×96
Refresh Rate
Hz
≥1920
View Angle(H/V)
°
140/140
Brightness
nits
≥6000
Gray Scale
Bit
16
IP Rating
65
Power Consumption(Max/Avg)
W/sq.m
1000/400
Input Voltage(AC)
V
110~240
Modular Characteristics
Cabinet Size(W×H×D)
mm
960×960
Cabinet Material
Steel Iron
Cabinet Weight
Kg
40
Module Size(W×H)
mm
192×192
Environment
Operation Temperature
ºC
-20~+50
Operating Humidity
10%~90%
Driving Mode
1/8 Scan
Control Distance
Cat 5E <100m,Single mode fiber<10Km
