LED Type:
SMD2727black
Module Size:
160X160mm
Product Size:
800X1600mm
Display Size:
800X1200mm
Cabinet Material:
Aluminum
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
220W / m²
Scanning Mode:
1/8 Scan
Display Type:
LED Video Display
Application:
Advertising
Certification:
ETL
Pixel Pitch:
5mm
Pixel Density:
40000dots/Sq.M
Product Description

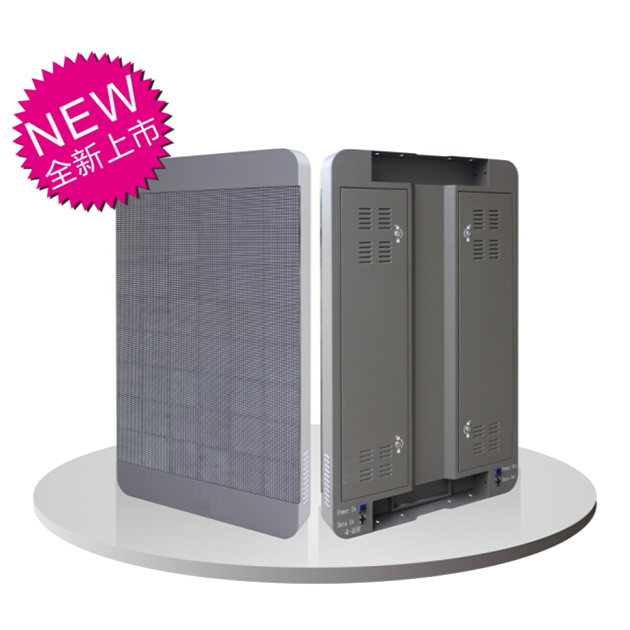

Outdoor P5 gidital display for outdoor lighting pole, with small screen size with high resolution,can be shown with videoes and images controlled by internet,3G/4G, Wifi,size can be customized
Product Advantages:
1. Intelligent control: with LAN, WIFI, 3G intelligent management module inside, can control the screen as your convenient, change the display content as you want at anywhere and anytime.
2. Saving time and labor: once the screen is installed successfully, the advertising content can change at any time as request, don't like the traditional static billboards need to be dissambled frequently, save the working time and labor cost, and control the advertising contents easily.
3.High waterproof IP level: with front IP65 and back IP54, good waterproof, can be used outdoor with any weather
4. Easy maintenance: Side open and back maintenance for option, and dot to dot maintenance, easy and quickly
5.SMD led encapsulation confirm wide view angle, good uniformity and high definition
6. Can be done with single side or double sides,screen size can be customized if your quantity is larger

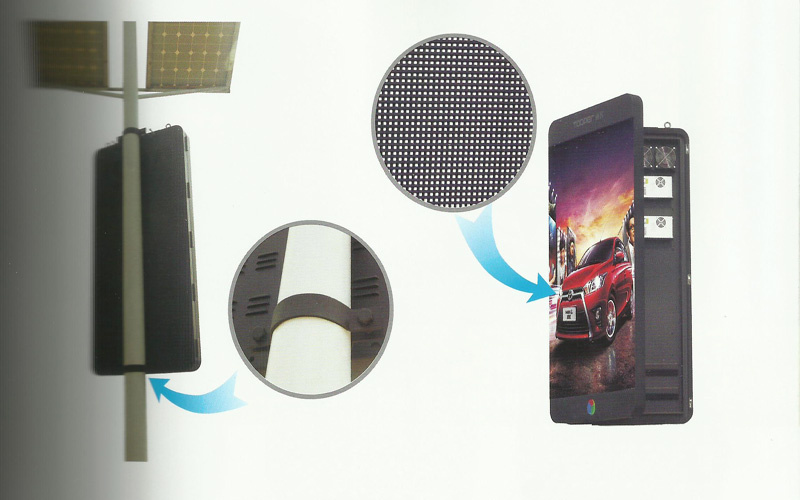

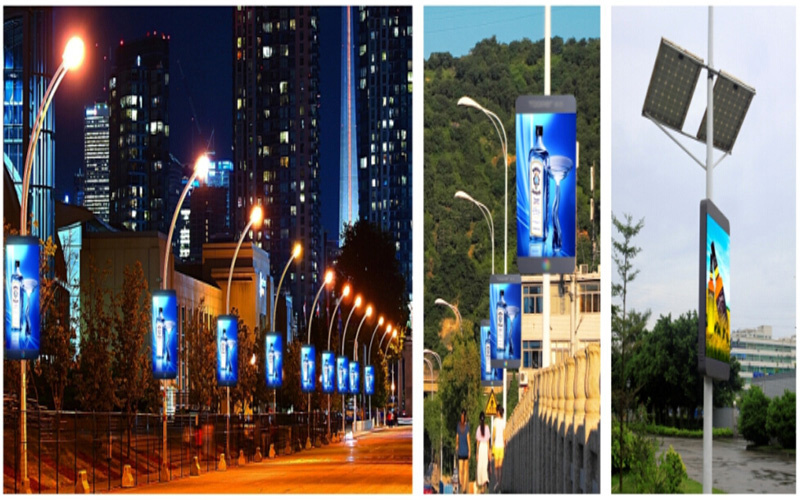

More pictures for understanding well:
Outdoor Pole P5 full color led display for pole
Characteristics
Value
unit
Pixel pitch
5
mm
LED type
SMD2727
Pixel density
40000
Dots/
Module size
160x160
mm
Module resolution
32x32
dots
Cabinet size
800x1600
mm
Display size
800x1200
mm
Cabinet resolution
160x256
dots
Cabinet weight
57
Kgs
Waterproof IP
65
degree
Brightness
≥5000
CD/
View angle
120°
degree
Gray scale
13
Bit
Display scale
16.7
Million
Power consumption(Max.)
800
W/
Power consumption(Avg.)
280
W/
Refresh Frequency
≥960
Hz
Operation Power
AC100~240
V
Operationg Temperature
-20~+50
ºC
Operating Humidity
10~90%
RH
Operating Life
100,000
Hours
