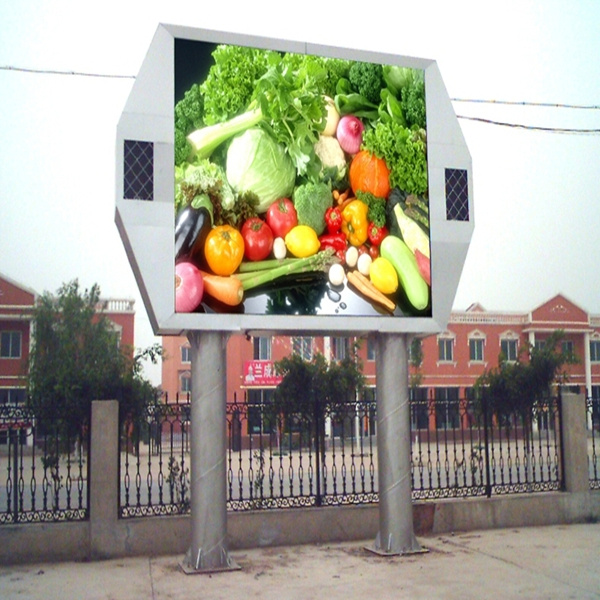

Outdoor P10 LED Sign Display for Advertising
| Price: |
US $ 625-715/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
1). Customized solutions:
We make best design with high cost- efficiency according to the actual needs of our customers and we can offer OEM service as well.
We produce advertising LED display, rental LED display, traffic LED display, highway LED display, stadium LED display, curve shape LED display, text information LED display and so on.
2). Strict selection of quality material:
Main component Brand
LED lamp CREE COTCO(USA) or SILAN (China)
Driving IC MBI (Taiwan)
Power supply module Meanwell (Taiwan)
Ventilation fan SUNON (USA)
PCB Separated driving PCB from LED lamp PCB
LED frame Quality LED frame
LED cabinet Customized design cabinet
Data cable CAT 6
Control system LINSN, ZDEC or NOVASTAR
3). Rich colors:
With 16 bit color processing, we can have 1024 color grades for Red, Green and Blue to show 1.07 Billion colors.
4). High brightness:
With 8000CD/sqm, the dark area of image on LED display can be seen very clear even under strong sunshine.
5). High color uniformity and consistency:
The color is very even, especially when you display pure white on LED display.
6). Certificates:
The LED display is CE, RoHS, UL, ISO900 certificated.
7). Power saving:
The power consumption of our LED display with special electronic design is around 30% less than that of normal LED display.
8). Alternative products:
Outdoor P10, P12, P14, P16, P20, P22, P25, P31.25, P37.5 and P40 are all available.
* Products function introduction:
1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
3) To pictures and character, have clear, exquisite and real display effect
4) Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion
5) Can repair each LED lamps, so the cost of maintain is lower, and easy to repair.
* Products Advantages:
1) Price Advantage: We have the best competitive price at the market
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each LED lamps
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: Better service at same situation, better cooperation at same service!
* Products list and application area:
1) Full color LED display: Equally or compactly make the red, green, blue color in one DOT, equally distribute at the panel, so make the whole display
2) Usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment
Application of LED display:
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shoping malls
Postal officees, schools, monitoring, restaurants, entertainment, enterprises etc...
Trade Terms:
1. Payment: T/T, 35% deposits before production, 65% balance to be paid before dleiverying (Western Union or Moneygram are welcomed)
2. Production lead time for 100~500PCS: 10days, 500~1000PCS: 15days
3. Sample can be delivered in 3days
4. Shipping freight are quoted under your requests
5. Shipping port: Shenzhen, Mainland China
6. Discounts are offered based on order quantities
7. MOQ: 1PC
Our service:
1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. OEM&ODM, any your customized screen we can help you to design and put into product.
4. Distributoer ship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
| Unit module |
| Module size | 160*160mm |
| Pixel pitch | 10mm |
| Pixel density | 10, 000dots/m2 |
| Pixel configuration | DIP 1R1G1B |
| Display color | Full color |
| PCB layer | Double layer |
| Led specification | Φ 3ellipse |
| Pixel resolution | W: 16dots*H: 16dots |
| Cabinet |
| Dimension | 960mm*960mm*150mm |
| Quantities of module | 36pcs |
| Power supply | 6pcs |
| Thermal discharge | Fan*2pcs |
| Total weight | 50kg |
| Best viewing angle | 10-100m |
| Temperature | Storage: -35degree~+85degree |
| Working: -35degree~+85degree |
| Thickness | 15cm can adjustable |
| Remarks: cabinet size can changed, upon project need. |
| Power |
| Working voltage | AC220V/110V± 10% |
| Average power consumption | 300-400W |
| Max. Power consumption | ≤ 1000W/sqm |
| Current | ≤ 20mA(single LED) |
| Control system |
| CPU | Pentium4 or above |
| Type | LINSN |
| Operating system | WIN98/2000/NT/XP |
| Control method | Synchronization& Asynchronization |
| Main technical parameter |
| Driving device | 1/4scanning |
| Drive type | Constant Current driver IC MBI5024 |
| Display type | Video/Graphics/Animation/Message/Text/Flash |
| Input Signal | HDTV CATV NTSC PAL s-video VGA DVI |
| Refresh frequency | ≥ 400Hz |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color |
| Brightness of white balance | More than 8000cd/sqm |
| Brightness adjustment | 256 levels of each color(R/G/B)by software |
| Operating ambient humidity | 10%--95% |
| Video signal | PAL/NTSC |
| Control system | DVI display card+full color controller card |
| MTBF | ≥ 10, 000hours |
| Life span | ≥ 100, 000hours |
| Flatness | Tolerance of interpixel ≤ 0.3mm |
| Tolerance of modules clearance≤ 0.6mm |
| Power switch | Automatic switch |
| Display mode | 1920*1080P FULL HD |
| Software | LED media player |
| Prod Model: |
P10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
160*160mm/320*160mm |
| Working Temperature: |
-20° C~+80° C |
| Long Life Span: |
More Than 100000 Hours |
| Use Place: |
Stadiums\Securities Exchange\Advertisement etc |
| Delivery Time: |
3-8 Working Days |
| Cabinet Size: |
960*960mm |
| Cabinet Material: |
Waterproof Steel /Aluminum |
| Brightness: |
7500-8500nits |
| Viewing Distance: |
10-250m |
| LED Type: |
DIP346 |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
ETL |
