Brightness:
>6000nit
Viewing Angle:
120°
Cabinet Dimension:
960X960X130mm
Cabinet Resolution:
120X120DOT
Cabinet Weight:
45kg
Cabinet Material:
Iron
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Display Type:
LED Video Display
Application:
Advertising
Certification:
FCC
Pixel Pitch:
8mm
Average Power Consumption:
390W / M²
Pixel Density:
15625 DOT / M²
Scanning Mode:
1/5 Scan
Product Description
Outdoor P8 High Bright SMD Full Color LED Display led billboard led sign
Parameter with P8 SMD full color Outdoor LED display
Pixel pitch
8mm
Refresh frequency
≥800Hz
Pixels
SMD 3in1(3535)
Gray level
1024~16384
Pixel density
15625pixels/sq.m
Gray scale/color
>16.7M
Cabinet resolution
120×120dots
Frame frequency
>60Hz
Cabinet dimensions
960mm×960mm×130mm
Viewing angle
120°
Cabinet material
Iron
Power(maximum)
780W
Cabinet weight
45kg
Ingress protection
IP65
Module size
320mm×160mm
Temperature range
-15~60°C
Module resolution
40dot×20dot
Humidity range
10%~90%RH
Brightness
>6000nits
Control system
Synchronous control system Asynchronous control system
Driving method
Constant current 1/5scan
Input signal
AV S-VIDEO VGA DVI HDMI YPBPR SDI DP
Functions and advantages
1. Have obvious competitiveness in quality and price in the international LED market . 2. Which help customers to transportand mount without any difficulties ,reduce the cost of use greatly!
3. The SMD three-in-one technology with high brightness makes the display has a ultra-wide view and smoother pictures when in use. 4. Make use of the excellent protection technology and reached the index of IP65, can work normally in any weather condition! 5. Low power consumption and good performance of dissipating heat make it work normally in the condition of no air conditioning.
You can choose from our existing size of SH-P5/SH-P6/SH-P6.67/SH-P10.
3.Shipping freights are quoted according to your requests
4.Delivery time:5-15 working days
5.2 years warranty ,lifelong maintaining. In the Maintenance period, free of all maintenance charges. After Maintenance period,only charge the material costs fees.

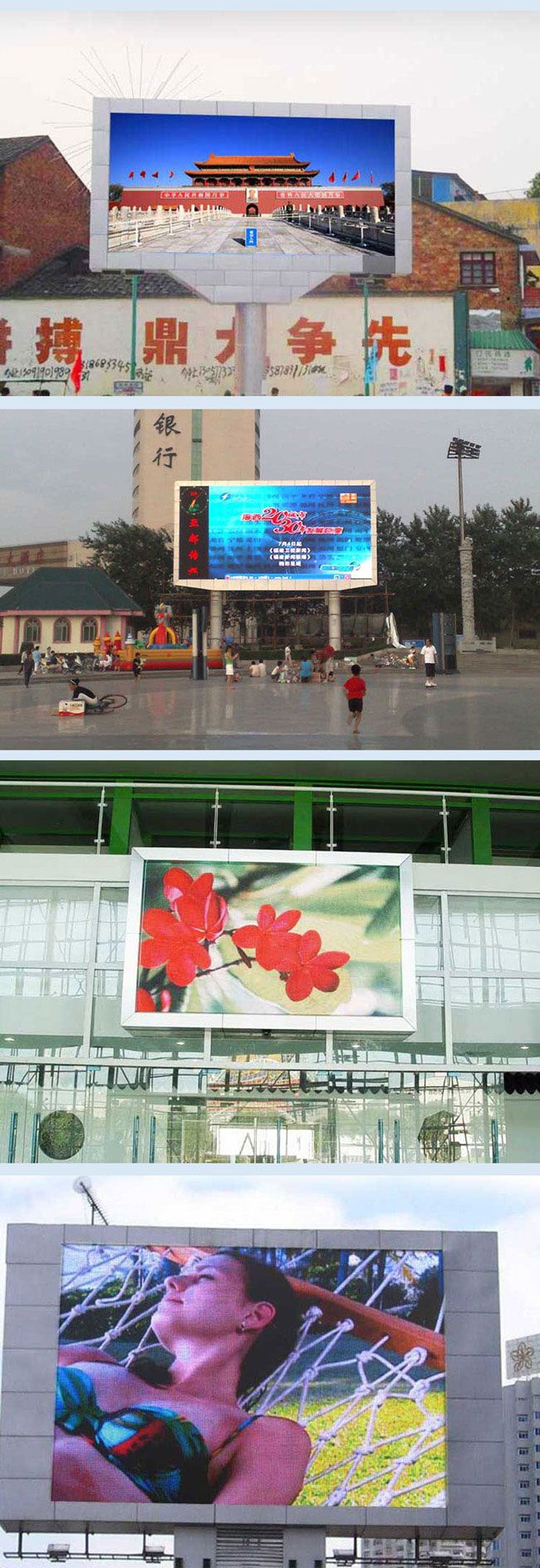

Outdoor LED display case
