Prod Model: |
SSL-WL-18W-03 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Frequency Range: |
50Hz-60Hz |
Housing Color: |
Silver |
Net Weight: |
2.9kg |
Dimension: |
1000 X 76 X 76mm |
Package: |
105*42*43cm (10PCS/Box) G.W.:29kgs |
Emitting Color: |
RGB |
IP Rating: |
IP65 |
Diffuser: |
Tempered Glass |
Beam Angle: |
60?? |
Lifespan: |
30000 hours |
Warranty: |
2 Years |
Certification: |
RoHS |
Electric Current Type: |
AC |
Input Voltage: |
220V |
Power: |
18W |
Product Description

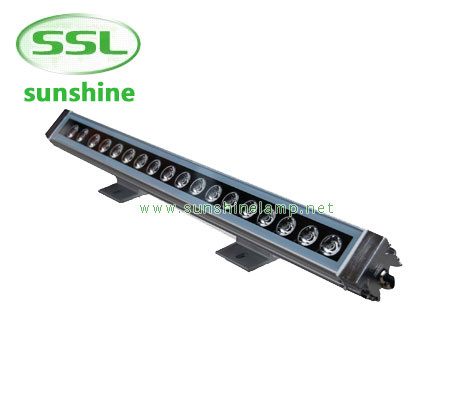

18 Watt Outdoor LED wall washer lights / Lighting, LED Tunnel Lamp CE RoHs Approved
Easy to install, IP65 18W High brightness LED Tunnel Lamp Ce & RoHs approval
Description:
· Die-casting aluminum housing
· AC85~265V input options
· Optical grade diffused lens
· Graduated angle scale
· Bridgelux LED and Meanwell driver
· Low emitted heat
· 120º beam projection
· Up to 70% energy savings
· 18w power consumption
· IP65 Ingress protection
· With a build-in stand alone function and master / slave mode available;
· RGB color mixing with or without DMX control;
· 64 sub-ID codes addressing panel available in one DMX address.
· Current protection to PCB panel and over-heat protection;
· CE, RoHS, TUV, UL compliant
· 3 Year Warranty
Specifications:
Electrical / Optical Characteristics (Ta=25ºC±3ºC)
Tech Date | |
Model | SSL-WL-18W-03 |
LED Qty | 18pcs |
LED Type | Bridgelux |
LED Power | 18W |
LED Color | Warm white, Pure white, Cool white |
Input Voltage | AC85~265V |
Frequency Range | 50Hz - 60Hz |
Power Factor | >98 |
Power Efficiency | >85% |
Luminous Efficiency | 70~110LM/W |
Color Temperature | WW | 2700-3500K |
PW | 4000-5500K |
CW | 6000-7000K |
CRI | WW | Ra>70 |
PW | Ra>75 |
CW | Ra>75 |
Lamp Efficiency | >85% |
Lumens Output | WW | 1400lm |
PW | 1500lm |
CW | 1600lm |
Beam Angle | 120° |
Working Temperature | -40ºC ~ +55ºC |
Storage Temperature | -25ºC ~ +65ºC(25ºCbest) |
Life span | >30000hrs |
Certification | CE, RoHS, FCC |
IP Grade | IP65 |
Housing Color | Black |
Net Weight | 2.3kgs |
Dimension | 1000 x 76x 76mm |
package | 105*42*43cm (10pcs/box) G.W.:24kgs |
Applications:
Widely used in .indoor and outdoor lighting and decoration for building outline,bar,dininghall, KTV, outdoor lighting advertising, Holiday decoration lighting, swimming pool.
Sunshine Light is an established high-tech firm specialized in developing OEM and ODM LED lighting products manufacturer and exporter. We are quality manufacturer always produce high technology & high quality products years of our experience bringing us the advantages of LED lights got improved remarkably, such as more efficiency, environmentlally safe, longer life span, less power consumption. We can provide customer R&D in new product design, production, quality control with high standard products and services. We're especially well-placed in the field of Power LED thermal management and related lighting solutions.
