Luminous Efficiency:
>90%
Power Factor:
>0.95
Chip Brand:
Epistar From Taiwan
Luminium Flux:
11000-14000lm
Warranty:
3years
Light Source:
LED Light
Power Supply:
AC
Lamp Body Material:
Aluminum
IP Rating:
IP65
Certification:
CE RoHS
With Light Source:
With Light Source
LED Chips Brand:
Bridgelux
Color Temperature:
Warm White Pure White Cool White
Application:
Garden, Highway, Square, Street
Product Description

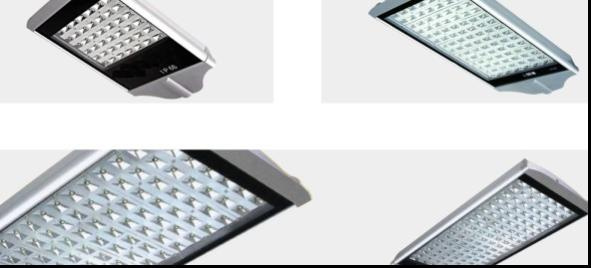

LED Street Light, LED Street Lighting, LED Street Lamp, 98W(JCH-LD-98W)
Specifications: Model Number: JCH-LD-98W Power Consumption: 98W Working Voltage: AC85-265V, Luminous Flux: 11000-14000lm Certificates: CE, RoHS LED Luminous Efficiency: >90% Color Temperature: Pure White: 5, 000 ~ 6, 900 K, Warm White: 2, 800~3500K Color Index(CRI): Ra>75 Chip Style: Epistar Working Life: > 50, 000 Hrs Dimensions: L610*W308*H120 mm
Features: The lamp casing is made of aluminum-alloy through die-casting that is covered with fluorocarbon powder that is sprayed in electrostatic sprayed. The LED Street Light lamp lens is made of material that use high quality transparent polycarbonate, is highly lucent, dust-proof, and waterproof. Our whole set LED Street Light uses Aluminum for fasteners, the product is safe, reliable, and has low energy-consumption and a long life span.

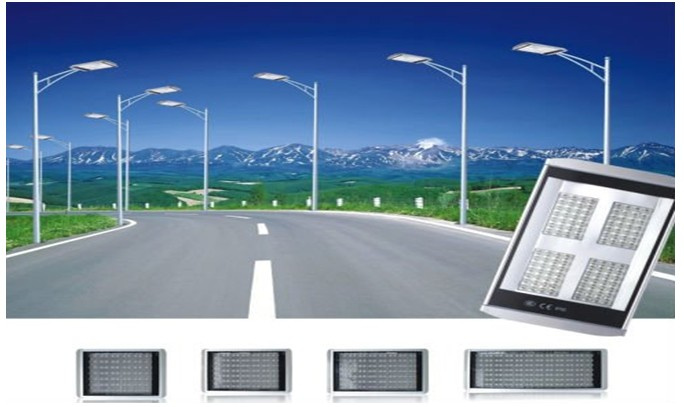

Application: Widespread use in courtyard, Building Tower, Commercial Building, Hotel, Industrial area, Park, Subway station, bus and train station Relative led street light
Model
JCH-LD-98W
Light distribution curve
Asymmetry (Batwing)
Size
L610*W308*H120 mm
light spot
Rectangle
Mounting hole
Φ61 mm
Average illuminance
H = 6 m
≥32Lux
LEDs
98*1-watt
H = 8 m
≥18Lux
System power
105W
H = 10 m
≥11Lux
Input voltage
AC 85-265 V
H = 12 m
≥8Lux
Frequency
50-60 Hz
Illuminance area
H = 6 m
21 x 6 m
Power efficiency
>92%
H = 8 m
28 x 8 m
PF
>0.95
H = 10 m
35 x 10 m
Total harmonic distortion
<9%
H = 12 m
42 x 12 m
LED working voltage
DC 40-48 V
Working temperature
- 30 ° C ~ 40 ° C
LED working current
DC 2.1-2.45 A
Working humidity
10 % ~ 90 % RH
LED junction temperature
<=75centigrade
Lifetime
30,000 hrs
LED initial flux
9,800 lm
Certification
UL, CE, ROHS
CCT
2,700-8,000K
Net weight
6.1 kg
CRI
WW:Ra>68; PW/CW: Ra>75
Gross weight
7.2 kg
IP Grade
IP65
Packing Size
L63*W32*H15 cm
SHENZHENSHI JU CHENG HE PHOTOELECTRIC Co., Ltd. An high technology enterprise which is specialized in developing, manufacturing, marketing, servicing and design of LED lighting. Our main products include LED spot light, LED bulb light, LED fluorescent light, LED street light, LED panel light. All of the products have the certificates of CE, RoHS and it mainly use in industries, homes, building projects and shopping malls. We have set up a complete and scientific modern quality management system. Our Headquater is located in Shajing town in Shenzhen.
We adhere to the policy of "high quality, high efficiency, continuously creative, continuous enterprise", do our best to provide our customers with energy-saving LED lighting solution. We have fist-class R&D team and qualified selling group in order to offer high-quality service to our customers. Our good faith, powerful strength and high-quality has been recognized by LED industry. Pollution-free and energy-saving are our faith and keep hard working at green energy resources for human.
