North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificates:
CE/FCC/CCC/UL/RoHS/ ISO9001: 2008
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Pitch:
16mm
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
350W / m²
Pixel Density:
10000 dot / m²
Scanning Mode:
1/2 Scan
Certification:
CE
Product Description

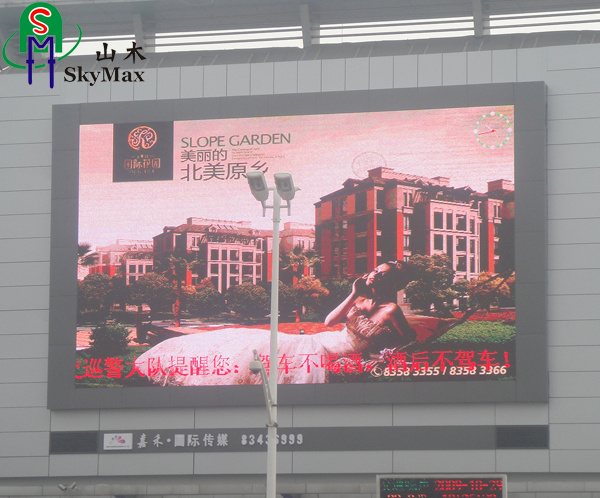

Professional Factory Outdoor LED Display for Advertising
We produce one color LED display/ two color LED display/ full color LED display/ LED display used indoor/ LED display used outdoor/ LED display used for text and graphic/ LED display used for video.
Other - The chips are 14mil LED display special chips, and they are antistatic for over 5000V. - The copper brackets and silica gel have high quality, and they are electric, heat-dissipated, and anti-ultraviolet ray. - Professional spectral and color separation standard have ensured the coherency of the display's color. - The materials of PCB accord with the standards of UL certification, and the copper on them are over one ounce. - All connectors are phosphor copper, and they are plating for 2μ , so they are acid-resistant and alkaline-resistant. - The display is accordant with RoHS standards.
number
Item name
Parameter and index
unit module
1
LED encapsulation mode
φ 4oval DIP
2
Horizontal axis
120°
3
Vertical axis
60°
4
Pixel composition
1R1G1B
5
Pixel pitch
16mm
6
Scan method
1/2
7
Drive method
Constant current
8
Module resolution
16× 8pixels
9
Module dimensions
256mm× 128mm
10
Module type
incorporated lamp and drive
11
Module working voltage
+5V
12
Module average power
5W
13
Module maximum power
20W
14
Module shell material
PC
15
Module mask material
PC
unit cabinet
1
Module layout
4× 6 pieces
2
Cabinet resolution
64× 48 pixels
3
Cabinet maximum power
600W
4
Cabinet average power
150W
5
Cabinet dimension
1024mm× 768mm
6
Cabinet material
steel/aluminum alloy
7
Cabinet color
black/gray
8
Protection grade (front/back)
IP65/IP54
Entire screen
1
Application environment
outdoor
2
Brightness
> 8000 cd/m²
3
White balance coordinates
X=0.29, Y=0.31
4
contrast
64000: 1
5
Color temperature
8000K
6
Pixel density(pixels/m² )
3906
7
Average consumption(W/m² )
191
8
Maximum consumption
763
9
Power source
AC220V/50HZ or AC110V/60HZ
10
Operating temperature
-20º C ~ +50 º C
11
Operating humidity
10%--90%
12
Storage humidity
-30º C~ +50º C
13
Refresh frame rate
60Hz
14
Refresh rate
480Hz
15
Viewing distance
15-300m
16
grayscale/color
16.7M
17
Brightness adjustment
100 manual levels /100 auto levels
18
Control method
synchronous with the computer display
19
Data transfer range
Network c able: 100m
20
Computer operating system
WINDOWS (98, 2000, XP, Vista, 7)
21
Video signal
VGA, DVI, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION and so on.
22
Longevity
≥ 100000 hours
23
Certification
UL/CE/CCC
SkyMax Display Technologies Co., Ltd is a world class advanced enterprise specialized in designing, researching and manufacturing LED lamps, LED Display and LED lighting. We are service enterprise in LED display field and focusing on offering LED projects solution. The company founded in 2006 and located in Zhongshan city which is famous as 'The China lighting city'.
SkyMax has 30, 000 square meters of air conditioned workshop area including dustless rooms, anti-static workshop, LED module aging room, LED display aging room. The factory is also equipped with all new and most advanced world first-class machines for LED automatic production line: American ASM auto-die bonder, ASM auto-wire bonder, Taiwan auto-encapsulate machine, Taiwan Chang-Yu handler, automatic LED braider, America Global automatic LED inserting machine, Japan JUKI automatic SMD machine, N2 lead-free relow soldering system, N2 lead-free dual wave soldering system. The company also has the machines testing system, including: Automatic PCB painting machine, automatic lamps adjusting machine, automatic rubber filling machine, automatic molding machine as well as high and low temperature testing machines, constant temperature and humidity machine, salt-spraying machine, shaking machine, waterproof testing machine. We have a group of professional, stable, pragmatic and innovative high-quality research and development team, which forms LED devices production to terminal manufacturing complete LED chain. SkyMax chooses high point, high standards, strict demand, in strict accordance with ISO9001: 2008 quality Guarantee system operation, and meticulous management into all aspects of production to ensure the quality of our products at the industry-leading position.
The company adopts advanced technology and management, producing a wide range of light-emitting diode, designing and manufacturing various electronic LED display, LED lighting to suit indoor and outdoor applications such as various stadiums, airports, wharf, stations, commercial system, exhibition centers, advertising etc. The products have been sold to America, Europe, South America, East Europe, Middle East, HongKong, Macao, the quality and customer service has won the recognition and acclaim. We are willing to work together with you to create a global production base for high-quality LED.
The company complies with the time development, promotes the scientific innovation and the time positively connects rails, the company quality system has updated into ISO9001: 2008, all products have got the certification of CE, FCC, RoHS ect.
To be the popular brand in LED business line is the final target of SkyMax. SkyMax means 'Mountain mind, Contains infinite; Green trees, Indomitable', SkyMax staff take 'honest, contains, thanks giving, responsibility' as the core values. Take 'creating professional, reliable products' as the duty. Offer the best products, best after-sale service. All SkyMax staff work together and let SkyMax products be popular in the world.
