LED Encapsulation:
DIP 346
Module Size:
256X256mm
Module Resolution:
16X16dots
Cabinet Material:
Waterproof Iron
Display Type:
LED Video Display
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Certification:
RoHS
Pixel Pitch:
16mm
Display Function:
Video Display
Scanning Mode:
Static Scan
Average Power Consumption:
300W / m²
Application:
Advertising,Stage Performance,Rental
Pixel Density:
3906DOT/Sq.M
Product Description
P16 outdoor full color led display screen is a classicalproduct choosed for outdoor use, with competitive price,it is a good cost performance product
DIP led encapsulation confirm the high brightness even under sunlight,anti-corrosion,antifogging,and good waterproof IP65,long life span
High pixel density, Long view distance, High definition, Good uniformity
Brightness can be adjusted automatically according to different surrondings, can be set to open and close the screen on fixed automatically

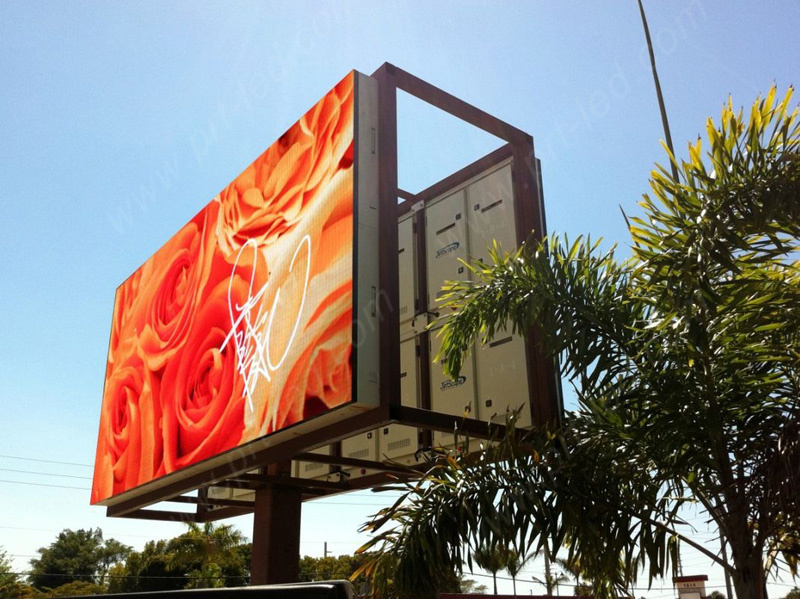

Can be fixed on the wall, on the street, on top of building,or be hung for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, by video, graphics, antimation etc, connect with PC computer or network, also can remoto control with asynchronous system.
Widely used for commercial led display, stage led display, traffic led display,rental led display, sports led display etc.
Outdoor Full Color LED Display Main Parameters
Visual Characteristics
Unit
Value
Pixel Pitch
mm
16.0
Pixel Density
Dots/sq.m
3906
Pixel Configuration
DIP346
Cabinet Resolution
dots
Refresh Rate
Hz
≥3000
View Angle(H/V)
°
100/45
Brightness
nits
≥7500
Gray Scale
Bit
687Million
IP Rating
65
Power Consumption(Max/Avg)
W/sq.m
900/300
Input Voltage(AC)
V
110~240
Modular Characteristics
Cabinet Size(W×H×D)
mm
Cabinet Material
Iron
Cabinet Weight
Kg
Module Size(W×H)
mm
256×256
Environment
Operation Temperature
ºC
-20~+40
Operating Humidity
10%~90%
Driving Mode
Static Scan
Control Distance
Cat 5E <100m,Single mode fiber<10Km
