North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:
256mm*256mm
Module Resolution:
16dots(W)*16dots(H)
Max Power Consumption:
35W
Module Thickness:
33cm
Module Weight:
1kg
Interface Way:
Hu40
Driving Device:
Constant Current Driving
Control Mode:
Synchronization
Power Switch:
Automatic
Display Mode:
800*600/1024*768/1280*900
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Pitch:
16mm
Pixel Configuration:
1R, 1G, 1B
Display Function:
Video Display
Average Power Consumption:
350W / m²
Scanning Mode:
Static Scan
Display Type:
LED Video Display
Application:
Advertising
Certification:
FCC,EMC,IP65
Pixel Density:
3906
Product Description
Certifications

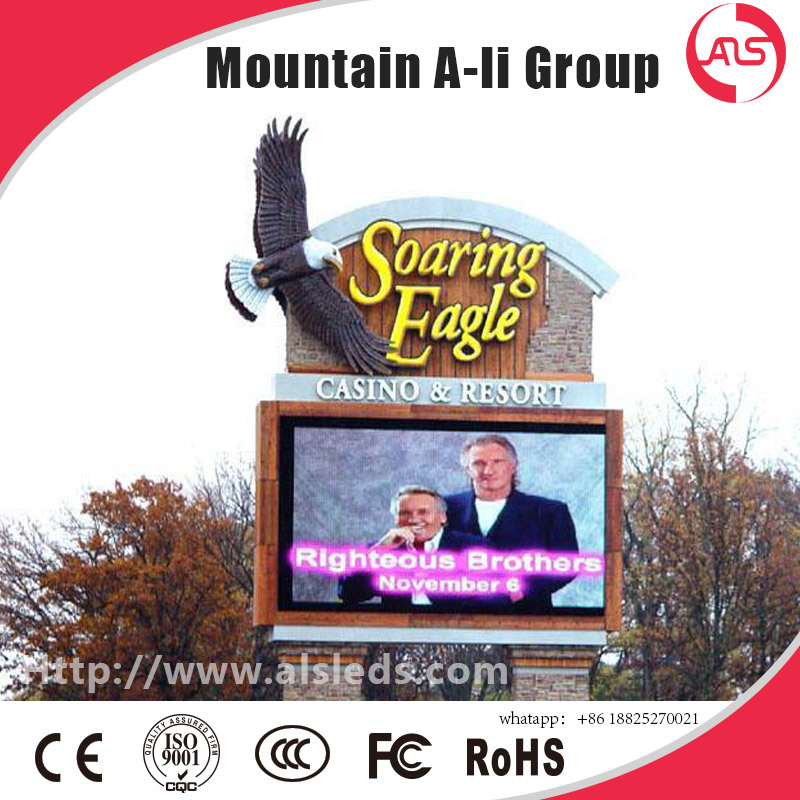

Product description: The configuration of P16 outdoor full color led display is 1R1G1B.Under the same condition it can use two more years than SMD. Widely used in a variety of needs large hall,sports arena,banking,telecommunications,goverment agencies,terminal,pier,railway stations,the stock market and other trading market,medical systems.electric power,galleries and other publicity,advertising,infomation dissemination,the guide places.
Product Advantage: (1)Low energy consumption , long lifespan. (2)No lolor difference, well concentrating . (3)Well waterproof, well radiation,well dust proof. (4)High brightness,high refresh. (5)Simply installation, easy to maintain, easy to use.
p10 full color led display technical parameter
Number
Item name
Parameter and index
unit module
1
Module Size
256mm*256mm
2
Module Resolution
16dots(W)*16dots(H)
3
Pixel Pitch
16mm
4
Pixel Configuration
1R1G1B
5
Pixel pitch
16mm
6
Brightness
≥7500cd/m²
7
Scan Method
Static Scaning
unit cabinet
1
Cabinet Size
1024mm*1024mm
2
Cabinet Resolution
64*64dots
Power
1
Operation Voltage
AC220V±10%
2
Average Power
350W/H
3
Max Power Consumption
≤800W/m²
4
Current
≤20mA(s
