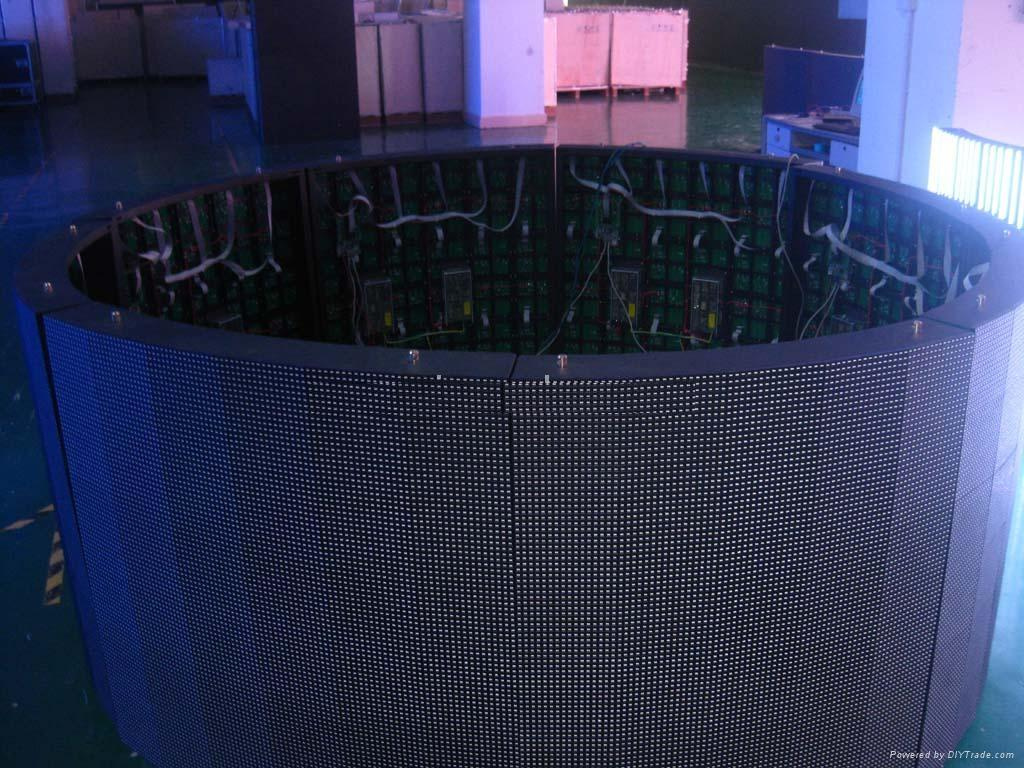

Outdoor Full Color LED Curve Display P12
Price: |
Negotiable/Square Meter |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Square Meter |
Pay Type: |
L/C,T/T |
Prod Model: |
SY-OF12 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Tube Chip Color: |
Full Color |
IP Rating: |
IP65 |
Pixel Configuration: |
2R, 1G, 1B |
Pixel Pitch: |
12mm |
Display Function: |
Video Display |
Scanning Mode: |
Static Scan |
Certification: |
FCC |
Pixel Density: |
6944 |
Average Power Consumption: |
800W |
Product Description
Arc LED display scree LED curve display LED curve screen
Pixel pitch: 12mm
Pixel density: 6, 944 dots/m2
LED lamp type: SMD 3-in-1
LED lamp size: 5 × 5mm
LED configuration: 1R1B1G
Module size: 192 × 192mm
Module resolution: 16 × 16
Scan mode: 1/2 duty
Drive mode: Constant current
Cabinet weight: <45kg/m2
Brightness: ≥ 6, 500CD/m²
Contrast ratio: ≥ 2, 000: 1
Viewing angles: 130° (H)/130° (V)
Minimum viewing distance: 12m
Gray scale (single color): ≥ 12 bits/4, 096 levels
Colors: 68.7 billion
Average power consumption: 500W/m²
Working voltages: AC 90 to 260V, 50 to 60Hz
Frame changing rate: 60 to 85Hz
Refresh rate: 600 to 4000Hz
Brightness adjustment: 0 to 100%
Gamma correction: -0.5 to 5.0
Color temperatures: 3, 000 to 9, 300K
Brightness correction mode: By pixel, module and cabinet correction
Data input source: AV, S-Videom, VGI, DVI, HDMI, SDI and DP
Control method: Synchronization with computer
Data transmission distance: 100m by UTP CAT5, 500m by multi optic fiber and 10km by single optic fiber
Operating system: Microsoft's Windows (2000, XP, Vista and 7)
Storage temperatures: -40 to 85° C
Working temperatures: -20 to 50° C
Working humidity: 10 to 90%RH
Lifespan: 100, 000 hours
MTBF: 5000 hours
IP rating: IP65/IP43
Blind spot rate: ≤ 0.01%
|
P12 Outdoor Full Color LED Video Wall Parameter
No. |
Type |
Full Color |
1 |
Pixel Configuration |
1R+1G+1B |
2 |
Module Resolution |
16pixels(H) × 16pixels(W) |
3 |
Module Dimension |
192 mm (H) × 192 mm (W) × 160 mm (L) |
4 |
Power Consumption(average) |
400w/ m2 |
5 |
Power Consumption(max) |
800 w/ m2 |
6 |
Density |
6944pixels/m2 |
7 |
Brightness |
>7500 nits |
8 |
Color |
16.7 M |
9 |
Brightness Control |
Manual/Auto |
10 |
Gray Scale Rectification |
r rectification |
11 |
Picture Regulation |
Contrast/Chroma regulation/Module brightness regulation |
12 |
Drive Mode |
1/4 duty |
13 |
Refresh Rate |
1080HZ |
14 |
Control Mode |
Synchronization control |
15 |
Video Interface |
S-Video, VGA, DVI etc. |
16 |
Display Mode |
1024 × 768 |
17 |
Life Time |
100,000 hours |
18 |
Mean Time To Failure |
>10,000 hours |
19 |
Blind LED |
None |
20 |
Temperature |
-35 °C ~+55 °C |
21 |
Relative Humidity |
10%-95%RH |
22 |
Display Flatness |
The display : ± 1mmGap between modules : 1mm |
23 |
Display Information |
Text, Video and Picture etc. |
24 |
Voltage |
220V ± 10% , 380V ± 10% |
25 |
Communication Distance |
<20km |
|
SunYEX is a high-tech enterprise specializing in professional R & D, production and selling of LED screens. Our main products include LED display, and other LED lighting fixture. During SunYEX's these years' high speed developing, SunYEX has been working on building a friendly and win-win relationship with partners. We have a wide range of international strategic partners, sharing the benefits brought by international cooperation and division of labor. The international strategy enhances our technology and management level, promotes international quality standard certification and improves its competitiveness in the industry. Additionally, our international strategic alliance speeds up our process of establishing global service system and sales network and our international market further supports our expansion of domestic system and the strategic framework of the whole market. Nowadays, SunYEX brand is more and more recognized and praised by the industry and a wide range of users, which is derived from our efficient work, quality awareness, service awareness and customer awareness formed over years.
With our company's technology level, we have established strong and steady partnership with the world's toppest organisations such as PHILIPS, Toshiba and Siemens in developing product and operating control systems which we are proud of our quality.
SunYEX owns the most advanced LED assembly machinery and a Category 100, 000 dust-free workshop and powerful anti-static system, managed by a highly professional team which is well-known in the LED display industry, adding R&D administration, manufacture and extensive testing area, we believe we are now in a position to offer the world the best reliable product and COMPETITIVE COST for customers in the worldwide markets.
Our main products of SunYEX includes: LED Full Color Display, LED Single/Bi-Color Display, LED Traffic Light, LED Pharmacy Cross Display, LED Digital Tube, LED Solar Light, LED linear strips, LED modules, LED wall washers, LED fluorescent light, LED lighting fixtures, LED neon flex, LED components, LED accessories and so on, all of which are widely used in urban lighting decoration, advertising light boxes backlight, indoor home decoration, stage lighting, project, lights and cars, etc.
SunYEX has a well-trained team including full experienced technicians and salesman; "product quality and customer satisfaction" is our main aim. More and more people continue choosing SunYEX for our excellent quality and unique well service, currently, 95% of our products have been sold in Europe and many other foreign markets.
Our target: To become a worldwide leading LED products provider within 5 years!
