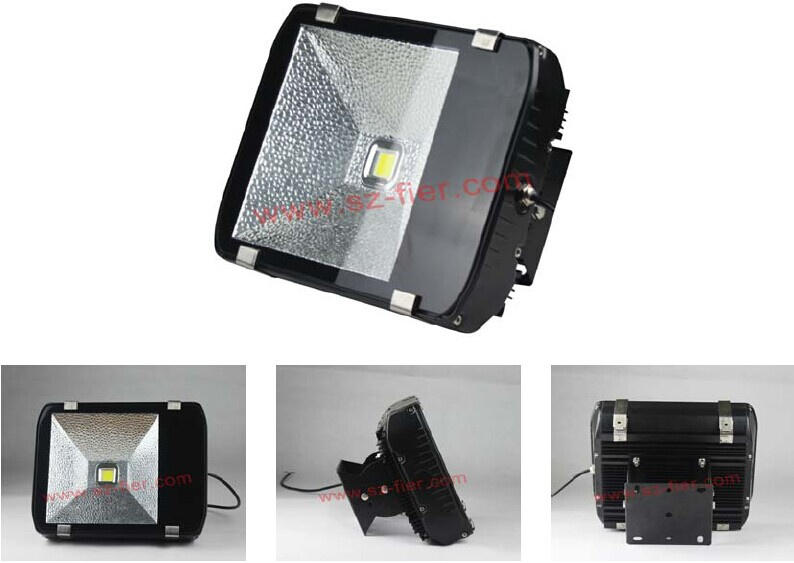

Outdoor Floodlight 80W Led Flood Light
Applications
Factory, gym, dock, billboard, building, tunnel, landscape, city lighting projects
Features
The light source adopts the integration of imported single high power LED, with the special design of
integrating many chips into one lighting source.
The crust in aluminum alloy die casting ensures the efficiency of heat emission, guaranteeing the light a
long life span.
The high pure imported aluminum from Germany as the reflector has high reflecting efficiency, and it can
make sure the luminous flux, controlling the light inside of a useful area. It improves the efficiency of light
uniformity and utilization, showing the LED advantage of energy saving.
The integration of 5mm high strength roughened glass and the housing makes the light work perfectly in
the high humidity environments.
New high efficiency constant current driver. Wide range of input voltage: AC100-240V.
No delay start. No waiting. It can reach its normal light as soon as it is turned on. No noise.
No electrical wave, conforming to CE.
Environment friendly and no air pollution. We exert the design of using cold light source. It's no heat
radiation. There is no ill to our eyes and skin. The floodlights do not have lead, hydrargyrum and any
other contamination. It is really environment friendly with ROHS certificate
Model | Watts | IP | Driver | CCT | Lighting Efficiency | Beam Angel | Warranty |
FEH201 | 50W | IP65 | 90~264Vac FIER | Epistar 35mil | 85-90lm/w | 110/50 | 2 years |
50W | IP65 | 90~295Vac MW | Epistar 35mil | 85-90lm/w | 110/50 | 5 years |
FEH202 | 80W | IP65 | 90~264Vac FIER | Epistar 35mil | 85-90lm/w | 110/50 | 2 years |
80W | IP65 | 90~295Vac MW | Epistar 35mil | 85-90lm/w | 110/50 | 5 years |
FEH203 | 100W | IP65 | 90~264Vac FIER | Epistar 35mil | 85-90lm/w | 110/50 | 2 years |
100W | IP65 | 90~295Vac MW | Epistar 35mil | 85-90lm/w | 110/50 | 5 years |
FEH204 | 100W | IP65 | 90~264Vac FIER | Epistar 35mil | 85-90lm/w | 110/50 | 2 years |
100W | IP65 | 90~295Vac MW | Epistar 35mil | 85-90lm/w | 110/50 | 5 years |
FEH205 | 120W | IP65 | 90~264Vac FIER | Epistar 35mil | 85-90lm/w | 110/50 | 2 years |
120W | IP65 | 90~295Vac MW | Epistar 35mil | 85-90lm/w | 110/50 | 5 years |
FEH206 | 160W | IP65 | 90~295Vac MW | Epistar 35mil | 85-90lm/w | 110/50 | 5 years |
FEH207 | 200W | IP65 | 90~295Vac MW | Epistar 35mil | 85-90lm/w | 110/50 | 5 years |
FEH208 | 150W | IP65 | 90~295Vac MW | Epistar 35mil | 85-90lm/w | 110/50 | 5 years |
FEH209 | 180W | IP65 | 90~295Vac MW | Epistar 35mil | 85-90lm/w | 110/50 | 5 years |
FEH210 | 200W | IP65 | 90~295Vac MW | Epistar 35mil | 85-90lm/w | 110/50 | 5 years |
FEH211 | 240W | IP65 | 90~295Vac MW | Epistar 35mil | 85-90lm/w | 110/50 | 5 years |
FEH212 | 120W | IP65 | 90~295Vac MW | Epistar 35mil | 85-90lm/w | 110/50 | 5 years |
FEH213 | 160W | IP65 | 90~295Vac MW | Epistar 35mil | 85-90lm/w | 110/50 | 5 years |
FEH214 | 200W | IP65 | 90~295Vac MW | Epistar 35mil | 85-90lm/w | 110/50 | 5 years |
Safety Notice for Using
Please always use the light out of its package.
Before starting use of the light, please check if the light was damaged during transportation. If any
damage shown, please DO not install or use it.
Any maintenance should be performed by trained professionals only.
Keep packaging materials away from the reach of children and pets. Risks of suffocation!
Caution. The packaging contains small parts that may be swallowed by children.
Never leave children unattended in the vicinity of the lights and do not allow them to play with electrical
devices.
Try to avoid looking directly in the LED beam-especially for extended periods of time. Do not shine the
LED light in another person's eyes.
Never cover the light by other objects.
The products need to re-repair, inspection or special treatment of retirement after service time.
Maintenance
Prior to cleaning the light, make sure it has been disconnected from the power supply.
Use a dry or slightly moistened cloth for cleaning.
Never use any chemicals or abrasives for cleaning.
Proposal :
Used electronic devices must be collected for recycling and can not be deposited together with daily
garbage.
Installation
This product should be installed by trained electricians.
Check integrality of the products when unpack the packing.
When laying the cables, make sure that the cables and plugs are not subjected to any tensile or twisting
forces. Fit the cable tension relieving mechanisms to the connection points of the surface-mounted lights.
Do not kink cables. Output cables should be laid separately and at a distance from other cables.
Proceed by connecting the wiring cables to the luminaries. Usually, the brown(or black) wire is the live
wire, connect it with the terminal marked "L". The blue wire is Naughty wire, connect it with the terminal
marked "N".
Used only the LED driver included, and do not connect the surface-mounted lights to other loads.
Do not remove the name plate of the power supply and driver of the light.
Notes
Non-professionals are not allowed to disassemble and maintain the products. We have the right not to
provide after-sale service if unauthorized disassembly and maintenance happens to the products.
