Pixels:
20mm
Pixel Pitch(Mm):
20
Pixel Density(Dots/Sqm):
2500
LED Encapsulation:
DIP
LED Type:
LED Type
Module Dimension(Mm):
Module Dimension(Mm)
Module Resolution(Dots):
16x8
Best Viewing Distance(M):
20m~250m
Max Brightness(CD/Sqm):
6500
Display Type:
LED Video Display
Tube Chip Color:
Full Color
IP Rating:
IP65
Pixel Configuration:
1R, 1G, 1B
Certification:
UL
Pixel Pitch:
20mm
Display Function:
Video Display
Application:
Advertising
Scanning Mode:
Static Scan
Average Power Consumption:
350W / m²
Pixel Density:
2500DOT/M&Sup2

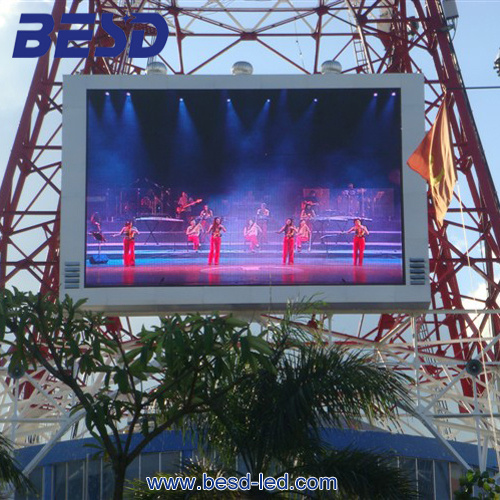

Product Description
1. CE, RoHS, IP approval 2. Relatively low cost 3. Stable capability 4. High brightn
information
pixel pitch
20mm
pixel density
Real : P20; virtual pixel: p10mm
pixel compsition
DIP456
LED composing
2R1G1B
LEDs Brand
Red: Optotech(China Taiwan)
Green: Silan(China mainland)
Blue: Silan(China mainland)
LEDs Wavelength
Red: 625nm-630nm
Green: 520nm-525
Blue: 470nm-475nm
Viewing
White Balance
x=0.33 Y=0.33 5600° K(adjustable up to 9000° K)
Brightness
> 6000cd/sq. m
Brightness Uniformity
Luminance Discrepancy< 5%
Colors
16777216
Grey Level
256 levels
Slot between Neighboring Modules
< 1mm
Recommended Viewing Angle(H/V)
110° /65°
Recommended Viewing distance
20m
Malfunction pixel Rate
< 0.02%
Dimension
Module Dimension
320mm*160mm
Module Resolution
16mm*8mm
Cabinet Resolution
1024mm*768mm
Module Quantity of each cabinet
3modules*6 modules
Power
Input Voltage
110± 10V, 220± 10V AC, 50/60Hz
Max Power Consumption
900 W/sq. m.
Avg. Power consumption
600 W/sq. m
Ambient Conditions
Operating Temperature
-20~+60 ° C
Operating Humidity
10%~90%RH
Ingression Protection Grade
IP65
Processing
Scanning Mode
Static scan, Constant current
Refresh Frequency
180Hz_600Hz, Adjustable
Signal Input
DVI, Composite Video for Live Video
Supported Networking
Through LAN/ WAN, RS232/RS485
Controller
PC based
Software
Linsn LED studio
Other
Life Span
More than 100, 000h
Weight
About62kg/sq. m
Xinhongxiang Optoelectronics (Shenzhen) Co., Ltd. As one of the most leading LED Products manufacturer in Shenzhen China, covering 10 000 square meters, register capital high up to 30 million CNY, is one high-tech enterprise focus on researching, producing, sale and service of LED products, . Nowadays Xinhongxiang owns fully automatic production lines, independent purifying workshop, researching center, most advanced production and inspection equipments, which guarantee the quality of the LED products. All the products have exported more than 100 countries, such as USA, Mexico, Canada, Brazil, Chile, Argentina, Panama, Colombia, Germany, France, Sweden, Italy, Spain, Russia, Poland, Turkey, Ukraine, South Africa, Egypt, Saudi Arabia, Singapore, Thailand, India etc
Developing History:
From 1996 to 2010, Xinhongxiang Optoelectronics (shenzhen) Co., Ltd, mainly involved in LED encapsulation and LED Display.
Since 2010, owe to enlarge the company scale and build up self-owned brand, Xinhongxiang focus on LED lighting, Shenzhen BESDLED Co., Ltd focus on LED display, business involved in indoor and outdoor LED Encapsulation, LED Display and LED Lighting Products.
LED Display:
Full Color Indoor and outdoor LED Display, single or dual basic color LED signs, LED Curtain, LED Dance Floor, Rental LED Display,
LED Lighting:
LED Bulb, LED Tube, LED Spotlight, LED DownLight, LED Panel Light, LED Street etc,
Comparing with many of LED Manufactures, xinhongxiang owns the following advantages to be your best choice for long term cooperation partner.
1, Fully automatic production lines
Xinhongxiang owns the entire LED manufacturing line, from original Semiconductor to LED chip, then assemble to LED display and LED lighting products.
2, Advanced production equipment
SMD/DIP die bolder, SMD/DIP wire Bolder, Auto Machine of Pouring Glue for SMD/DIP LED, Spectrum and Color Separation Machine, LED oven, Wave solder, Reflow soldering, Spectrum electronic and color tester, temperature and humidity programmable tester, luminance meter etc. Are equipped for our LED Product production.
3, Many Certification approved to clear up the trade barriers
CE, FCC, UL, RoHS, CCC, ISO9001: 2000 etc are obtained.
4, Strong R&D Team
Xinghongxiang absorb many talents, with more than 500 staffs, and including more than 100 engineers and technician, which paves the way for R&D for new products and excellent sales service
5): After-Service,
Principles: Response in time, solve problem ASAP and ensure the use.
Period: During warranty period, free of all maintenance charges;
