North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:
CE/FCC/CCC/UL/RoHS
Usage:
Outdoor
Tube Chip Color:
Full Color
Display Function:
Video
Certification:
CE
Product Description
2011 China LED manufacturer plant

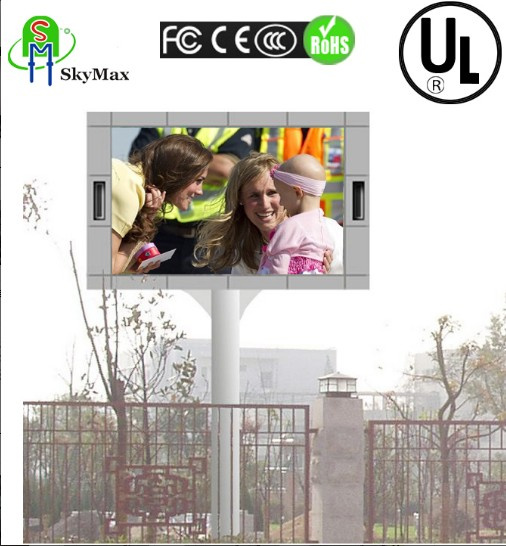

P20 Full color Outdoor LED screen:
1>Perfect appearance
2>Rental trailer LED Screen
3>High waterproof/Definition, big angle
4>Perfect design
Product description:
P20 outdoor full color LED screen is specially designed for the outdoor HD shows; LED lamp adopts standard φ 4 oval DIP technology with high brightness and good heat dissipation. Every pixel is composed by red, green and blue color, the colors of the display can be reached 1.07 billion kinds, and can display colorful dynamic and static images in real time, it has perfect display effect. The display supports the usual VGA and DVI traditional video signal, it also specially supports HDMI video signal, and so on, in addition, it can receive and show video programs, such as TV programs, VCD or DVD, live programs, and so on.
P20 outdoor full color LED screen adopts full automatic production, The product has high reliability, saturated and uniform color, high brightness, low consumption, long service life, is widely used in outdoor sites, such as square, outdoor concerts, theme park, shopping mall, golf courses, and so on.
number
Item name
Parameter and index
unit module
1
LED encapsulation mode
φ 4oval DIP
2
Horizontal axis
120°
3
Vertical axis
60°
4
Pixel composition
1R1G1B
5
Pixel pitch
20mm
6
Scan method
static
7
Drive method
Constant current
8
Module resolution
16× 8 pixels
9
Module dimensions
320mm× 160mm
10
Module type
incorporated lamp and drive
11
Module working voltage
+5V
12
Module average power
6W
13
Module maximum power
25W
14
Module shell material
PC
15
Module mask material
PC
unit cabinet
1
Module layout
4× 6 pieces
2
Cabinet resolution
64× 48 pixels
3
Cabinet maximum power
750W
4
Cabinet average power
188W
5
Cabinet dimension
1280mm× 960mm
6
Cabinet material
steel/aluminum alloy
7
Cabinet color
black/gray
8
Protection grade (front/back)
IP65/IP54
Entire screen
2
Brightness
7000 cd/m 2
3
White balance coordinates
X=0.29, Y=0.31
4
contrast
64000: 1
5
Color temperature
8000K
6
Pixel density
2500 ( pixels/m 2 )
7
Average consumption
153 (W/m 2 )
8
Maximum consumption
610 (W/m 2 )
9
Power source
AC220V/ 50HZ or AC110V/ 60HZ
10
Operating temperature
-20° C~ +50° C
11
Operating humidity
10%~90%
12
Storage humidity
-30° C ~ +50° C
13
Refresh frame rate
60Hz
14
Refresh rate
480Hz
15
Viewing distance
15-300m
16
grayscale/color
16.7M
17
Brightness adjustment
100 manual levels /100 auto levels
18
Control method
synchronous with the computer display
19
Data transfer range
Network cable: 100m
20
Computer operating system
WINDOWS (98, 2000, XP, Vista, 7)
21
Video signal
VGA, DVI, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION and so on.
22
MTBF
≥ 10000 hours
23
Longevity
≥ 100000 hours
SkyMax Display Technologies Co., Ltd is a world class advanced enterprise specialized in designing, researching and manufacturing LED lamps, LED Display and LED lighting. We are service enterprise in LED display field and focusing on offering LED projects solution. The company founded in 2006 and located in Zhongshan city which is famous as 'The China lighting city'.
SkyMax has 30, 000 square meters of air conditioned workshop area including dustless rooms, anti-static workshop, LED module aging room, LED display aging room. The factory is also equipped with all new and most advanced world first-class machines for LED automatic production line: American ASM auto-die bonder, ASM auto-wire bonder, Taiwan auto-encapsulate machine, Taiwan Chang-Yu handler, automatic LED braider, America Global automatic LED inserting machine, Japan JUKI automatic SMD machine, N2 lead-free relow soldering system, N2 lead-free dual wave soldering system. The company also has the machines testing system, including: Automatic PCB painting machine, automatic lamps adjusting machine, automatic rubber filling machine, automatic molding machine as well as high and low temperature testing machines, constant temperature and humidity machine, salt-spraying machine, shaking machine, waterproof testing machine. We have a group of professional, stable, pragmatic and innovative high-quality research and development team, which forms LED devices production to terminal manufacturing complete LED chain. SkyMax chooses high point, high standards, strict demand, in strict accordance with ISO9001: 2008 quality Guarantee system operation, and meticulous management into all aspects of production to ensure the quality of our products at the industry-leading position.
The company adopts advanced technology and management, producing a wide range of light-emitting diode, designing and manufacturing various electronic LED display, LED lighting to suit indoor and outdoor applications such as various stadiums, airports, wharf, stations, commercial system, exhibition centers, advertising etc. The products have been sold to America, Europe, South America, East Europe, Middle East, HongKong, Macao, the quality and customer service has won the recognition and acclaim. We are willing to work together with you to create a global production base for high-quality LED.
The company complies with the time development, promotes the scientific innovation and the time positively connects rails, the company quality system has updated into ISO9001: 2008, all products have got the certification of CE, FCC, RoHS ect.
To be the popular brand in LED business line is the final target of SkyMax. SkyMax means 'Mountain mind, Contains infinite; Green trees, Indomitable', SkyMax staff take 'honest, contains, thanks giving, responsibility' as the core values. Take 'creating professional, reliable products' as the duty. Offer the best products, best after-sale service. All SkyMax staff work together and let SkyMax products be popular in the world.
