| Prod Model: |
CZHB100W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| PF: |
90 |
| High Lumen: |
95lm/W |
| Color Rendering Index(CRI): |
>80 |
| Watt: |
50W 80W 100W 120W 180W |
| Cct: |
2700-7000k |
| IP: |
IP65 |
| Lifetime: |
50000hrs |
| Service: |
OEM/ODM |
| Feature: |
Save Energy |
| Warranty: |
2 Years |
| Color Temperature: |
Cool White |
| Lamp Body Material: |
Aluminum |
| Certification: |
RoHS |
| IP Rating: |
IP42 |

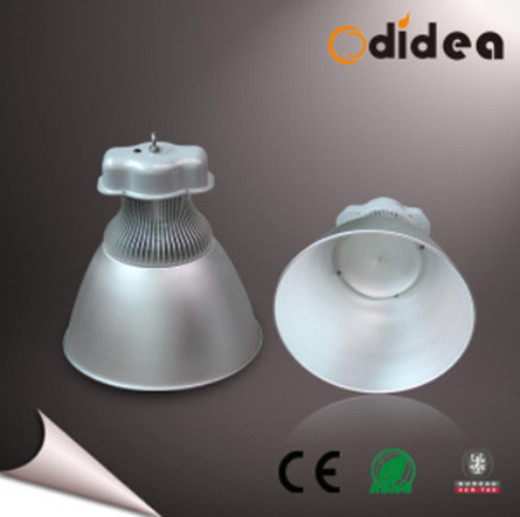

Product Description
Product Description
Features:
1. Reflectors of triple beam angles for option, 45/60/90deg,
2. Applicable for industrial areas, ware house, public areas, etc.
Specification:
P/N: | CZHB50W | CZHB80W | CZHB100W | CZHB120W | CZHB150W | CZHB200W |
| Input Voltage: | 90-264V 50-60Hz | 90-264V 50-60Hz | 90-264V 50-60Hz | 90-264V 50-60Hz | 90-264V
50-60Hz | 90-264V 50-60Hz |
| System Consumption: |
55W |
86W |
108W |
130W |
158W |
216W |
| LED Consumption: |
50W |
80W |
100W |
120W |
150W |
200W |
| CCT: | 2700-3000K, 4000-4500K, 5700-6300K |
| Ra: | 70 | 70 | 70 | 70 | 70 | 70 |
| Luminous Flux: | 4250-4750lm | 6800-7600lm | 8500-9500lm | 10200-11400lm | 12750-14250lm | 17000-19000lm |
| PFC: | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| Operating Temperature: | -25ºC-50ºC | -25ºC-50ºC | -25ºC-50ºC | -25ºC-50ºC | -25ºC-50ºC | -25ºC-50ºC |
| Life: | 50,000h | 50,000h | 50,000h | 50,000h | 50,000h | 50,000h |
| Weight: | 5.5kg | 6kg | 6.6kg | 6.9kg | 7.8kg | 9.5kg |
| IP Rating: | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Warranty: | 2years | 2years | 2years | 2years | 2years | 2years |
Other Terms:
1)Payment:30%TT+70%before shipment
2)Sample order,OEM acceptable
3)Delivery time:3-5working days for sample order/7-15working days for bulk order(<1000pcs)
Why choose Brightled?
1)High quality brand chipled (Sansung or Epistar)
2)Stable driver with PF>0.9
3)High purity aluminum to be better heat dissipation
4)Best price and Good after-sale service
5)Long warranty period
Application:
Workshop, Storages, Factories, Shops, Restaurants, Garages, Supermarket, Gym, Billboard, Building, Tunnel, Landscape, or other city lighting projects.
Q&A about our lights and company:
1.Q: Which Chips and driver do you usually use ?
A: Sansung or Epistar LED,Driver with PF>0.9 or Meanwell brand
2.Q: Offer samples or not?
A: Yes.
3.Q: How about the delivery time?
A: Usually, 3-5 working days for the sample,4-10 days for 500-2000 pieces.
4.Q: Can you do FOB and accept L/C?
A: Both Yes
5.Q: How many years about the warranty?
A: 2years
6.Q: It's my first time to import products, can you arrange all shipping for me?
A: It's our pleasure,we have the partner who can arrange all documents and shippment to you.
After-sale service:
What should I do if the lights have a quality problem?
Step 1:Takes the photos and explain the phenomemon
We will work out the possible problem.
Step 2:We will offer the solution plan,if failed,send back the lights.
Step 3:We will test and repair them
Step 4:If failed to repair,new lights will be replaced.
If you are interested and want to know more information, please send email to us, we are waiting for your news.
