Prod Model: |
LS-S505 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
Diameter 50 * H55mm |
CRI: |
Ra80 or Customized |
LED Type: |
LG or Nichia Chip |
Lifespan: |
35,000hours |
Dimmable: |
Not |
Beam Angle: |
24/36 Degree |
Light Source: |
SMD |
Lumens: |
450~580lm |
Replace Directly: |
50W Tranditional Halogen Lamp |
Power Factor: |
0.92 |
Emitting Color: |
White |
Base Material: |
Aluminum |
Usage: |
Indoor Using |
Certification: |
ERP / SAA / CB /TUV-GS/TUV-EMC |
Input Voltage: |
100-240V |
LED Chips: |
CREE |
Diffuser: |
Aluminum |
Power: |
6W |
Life: |
45000 Hrs |
IP Rating: |
IP20 |
Power Source: |
AC/DC |
Electric Current Type: |
AC/DC |
Product Description
Specification details
Power: 6.5W for replacement 50W halogen spotlights.
Input voltage: 100-240V
CCT: 2700K, 3000K, 4000K, 5500K or customized according to your requirements.
Lumens: CRI >80, 480 lm (2700K), CRI >80, 500 lm (3000K)
CRI >80, 550 lm (4000K), CRI >80, 580 lm (5500K)
CRI: 80Ra or customized according to your requirements.
Beam angel: 24 / 36 degree
Size: Φ 50*H55mm
Dimmable: Avialable
Base: GU10
Warranty: 3years free replacement
Lifespan: 35000hrs
Feature:
1: Halogen size and high lumen, in current market, few factories can meet both the two points. 2: Rubycon electrolytic capacitor from Japan
3: For dimmalbe version, it is Philips NXP IC in dimmable driver, nice dimmable effect, it is the best at the moment.
4: CE/RoHS/TUV-GS/TUV-EMC/ERP/SAA/CB certified

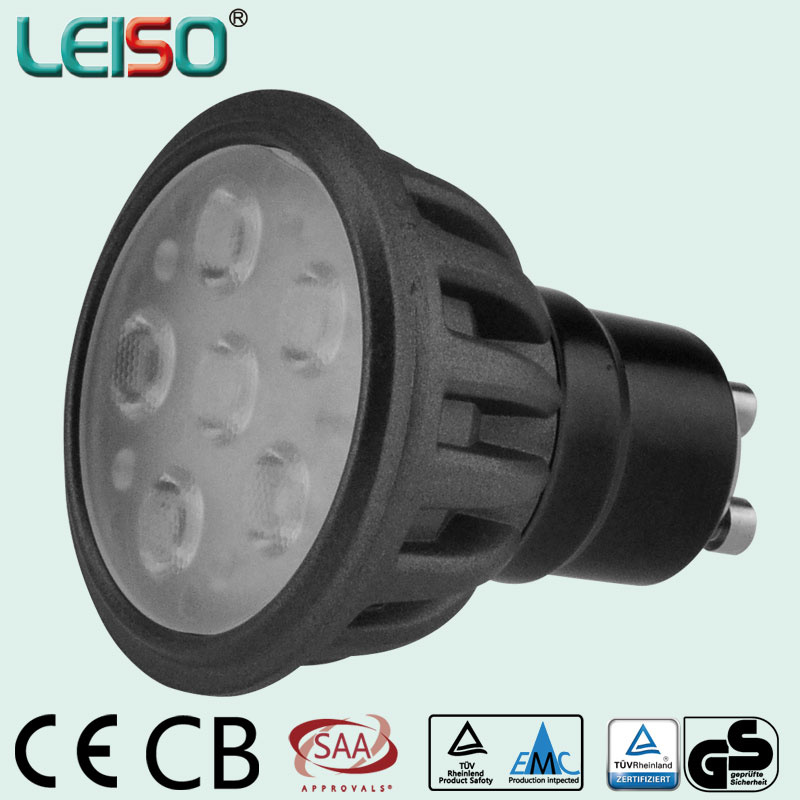

Technical parameters sheet of S505 series LED spotlight GU10 & MR16 SMD 6W
Item No. | Specification | Power | Lumens(CCT) | Product Dimension | Voltage | Dimmable | Packing Data |
CTN Qty | CTN Dimension | Volume weight | Gross weight |
LS-S505-MR16-EWW/EW | * 5.5W MR16 Spotlight * Epistar SMD 3030 * Bean angle : 36° | 5.5W | CRI >80, 400 lm (2700K) CRI >80, 420 lm (3000K) CRI >80, 450 lm (4000K) CRI >80, 480 lm (5500K) | Φ50*H49mm | 12V DC/AC | NOT | 100 | 54x27x16cm | 4.7kg | 7.7kg |
LS-S505-GU10-EWW/EW | * 6W GU10 Spotlight * Epistar SMD 3030 * Bean angle : 36° | 6W | CRI >80, 400 lm (2700K) CRI >80, 420 lm (3000K) CRI >80, 450 lm (4000K) CRI >80, 480 lm (5500K) | Φ50*H55mm | 100V~240V AC | NOT | 100 | 54x27x16cm | 4.7kg | 8.6kg |
LS-S505-GU10-EWWD/EWD | 220-240V AC | YES | 100 |
LS-S505-MR16-A-NWW/NW | * 6W MR16 Spotlight * Nichia LED * Bean angle : 36° | 6W | CRI >80, 480 lm (2700K) CRI >80, 500 lm (3000K) CRI >80, 550 lm (4000K) CRI >80, 580 lm (5500K) | Φ50*H49mm | 12V DC/AC | NOT | 100 | 54x27x16cm | 4.7kg | 7.7kg |
LS-S505-GU10-A-NWW/NW | * 6.5W GU10 Spotlight * Nichia LED * Bean angle : 36° | 6.5W | CRI >80, 480 lm (2700K) CRI >80, 500 lm (3000K) CRI >80, 550 lm (4000K) CRI >80, 580 lm (5500K) | Φ50*H55mm | 100V~240V AC | NOT | 100 | 54x27x16cm | 4.7kg | 8.6kg |
LS-S505-GU10-A-NWWD/NWD | 220-240V AC | YES | 100 |
Leiso lighting tech. Co., Ltd. (dongguan) is professional manufacturer for LED lighting integrate research & development, production, sales and service. The company offers complete product categories including LED lamp series, LED spotlight, LED bulb, LED t8 tube light, LED downlight, LED flexible tube light, LED module etc, which can be widely used in indoor lighting, outdoor landscape lighting, solar LED light, electronics, auto, communication, and so on.
Companies adhering to the philosophy of "customer priority, quality first " and the strategic policy of "quality, excellent service " to lead of energy saving LED lighting market. With years of experience in production and research and development. Excellent product quality recognition by our customers.
The factory total area of about 6, 000 square meters, high standards of clean production workshop, with automatic solid crystal, automatic wire bonders, automatic irrigation plastic, automatic color separation and packaging equipment. 300kk annual output more than the product of the making process of purification, anti-static work of international standard facilities closed. More than 200 employees, including 38 of engineering, QA and R & D staff.
"science and technology to create the future, quality creates brand. " LEISO based on domestic growth abroad. "quality first, customer first, innovation, service first"is the established policy of the company, to the colorful LED products, customers willing to form a close alliance, to add luster to the modern human.
