Prod Model: |
EW-EPL025W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power Factor: |
>0.9 |
Color Of Housing: |
Yellow |
Life: |
50, 000h |
Power Source: |
AC |
Electric Current Type: |
DC |
Emitting Color: |
White |
Base Material: |
Stainless Steel |
Input Voltage: |
AC 85V-265V |
Color Temperature: |
Pure White |
Lamp Body Material: |
Aluminum |
IP Rating: |
IP67 |
Certification: |
CE/RoHS/Cnex |
Power: |
30 |
Usage: |
Gas Station, Oil Field, Mines |
Beam Angle: |
90 Degree/130degree |
Product Description

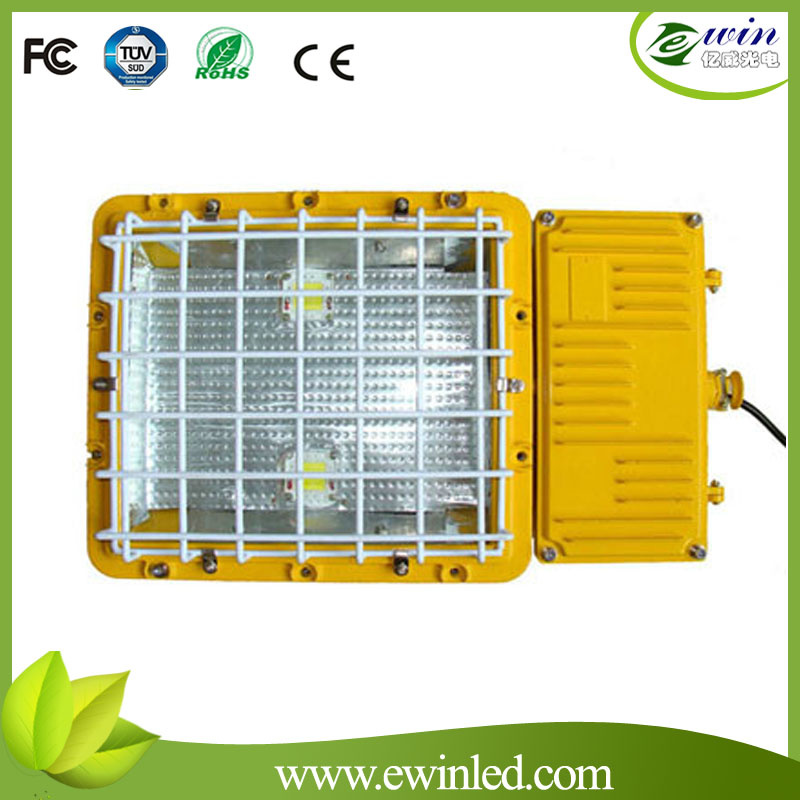

Explosion Proof LED High Bay Light with Osram LED
Features:
1. Energy saving. Reduce the number of luminaires needed, providing excellent luminaries efficiency more light where you need it.
2. Anti glare, reduces glare in applications where the user may have direct visual contact with the light source.
3. Shock and vibration resistant tempered glass, reduces the risk of premature failure.
4. Osram LED source. High efficiency lumen output and high CRI.
5. Driver module assembly High efficiency LED drivers are designed to provide reliable operation in even the harshest environments.
6. High strength aluminum alloy housing, can endure 20J impact. IP66, can be used wet locations robust construction suitable corrosive applications.
7. Ambient temperature from -40º C to 55º C.
Application:
1. Petroleum Industry, Petrochemical Industry, Metallurgical Industry, Power Generation Industry, Power Transmission Industry, Railway Industry, Public Security and Fire Fighting, Stadium Lighting, Machine Manufacturing, etc.
2. Transformer station, pumping station, etc.
3. Group II Zone I.
Parameter | Value |
Power Consumption | 15W/20W/25W |
Input Voltage | 220V AC(applied for 95-265V) |
Frequency | 50Hz(applied for 47-63 Hz) |
Beam Angle | 45° /60° /90° /120° /140° |
Explosion-proof Grade | Ex dIIB T5 |
Corrosion-proof Grade | WF2 |
IP Grade | IP66 |
Power Factor | > 0.95 |
Total Harmonic Current | < 15% |
Lamp Efficiency(%) | ≥ 90% |
Color Temperature(K) | Warm white 2700-4000K; Pure white 5000-6500K |
Junction Temperature(TJ)) | < 65° C |
Color Rendering Index(CRI) | Ra> 70 |
Light Effect | > 80lm/W |
Ambient Environment | Temperature: -30° C_ 55° C; Humidity: 10-90%RH(25° C) |
Storage Temperature | -40° C-60° C |
Lifespan | > 50000Hs |
Material | Aluminium Alloy |
Dimension(mm) | 200× 200× 202 |
Net Weight | 3Kg |
Certificate | CE, China National Explosion-proof Certificate |
