North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Light Source:
5* 8W High Mcd 4 in 1 RGBW LEDs
Voltage:
AC 90-240V 50/60Hz
DMX Channel:
9CH
Beam Angle:
15/25/30/45 Degrees
Electronic Dimming:
0-100%
Housing:
ABS Housing
Operational Modes:
DMX, Master/Slave, Stand Alone & Sound Active
Dimensions:
270*230*100mm
Net Weight:
2.5kg
Waterproof:
Not Waterproof
Electric Current Type:
AC
IP Rating:
IP20
Certification:
RoHS
Diffuser:
Tempered Glass
LED Chips:
Epistar
Shell Material:
Black Housing
Life:
100000hrs
Emitting Color:
RGBW
Type:
PAR 725
Input Voltage:
AV 90-240V 50/60Hz
Power:
8W
Product Description
Technical Specifications:
1) Light Source: 5* 8w High Mcd4 in 1 RGBW LEDs 2) Voltage: AC 90-240V 50/60HZ 3) Power Consumption: 30w max 4) DMX-512-connection: 3-pin XLR 5) DMX Channel: 9ch 6) Beam Angle: 15/25/30/45 degrees 7) Electronic Dimming: 0-100% 8) Housing: ABS Housing 9) Emitting Color: RGBW 10) Color Temperature(CCT): Cool White 11) Working Temperature: 0 - 45 degree 12) Working Lifetime(Hour): 100, 000(h) 13) Operational Modes: DMX, Master/Slave, Stand Alone & Sound Active 14) Dimensions: 270*230*100mm 15) Net Weight: 2.5kg

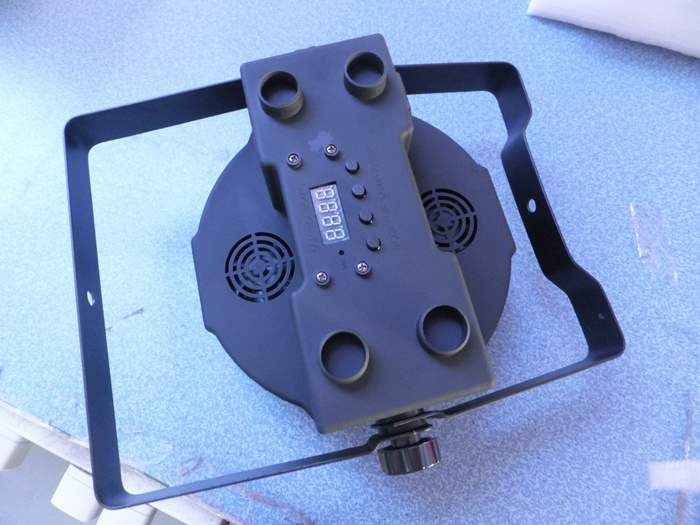

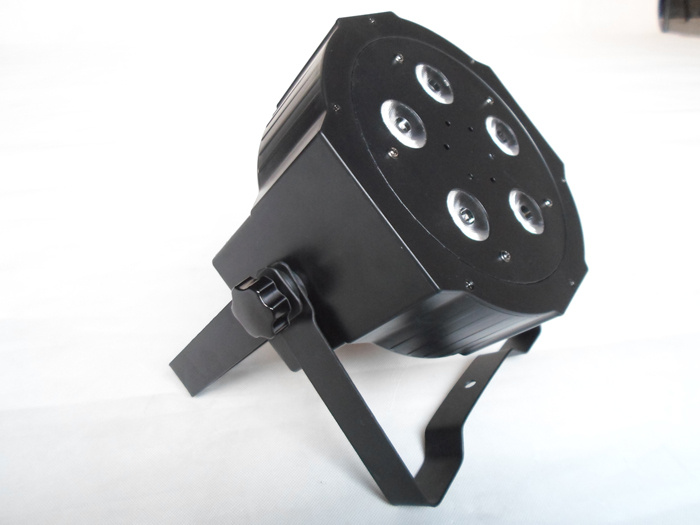

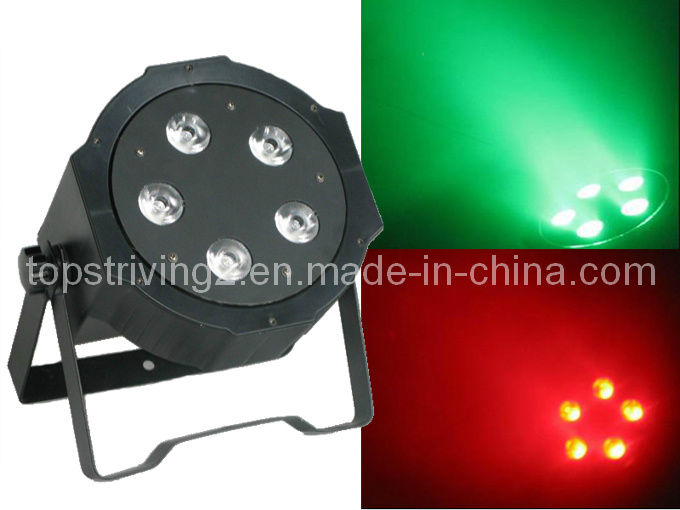

Picture:
Channel 1:
red from small to big brightness(dimmig)
Channel 2:)
green from small to big brightness(dimmig
Channel 3:
blue from small to big brightness(dimmig)
Channel 4:
white from small to big brightness(dimmig)
Channel 5:
master dimmer from small to full brightness
Channel 6:
strobe from slow to fast
Channel 7:
dimmer,color macro
Channel 8:
dimmer, increasing brightness, then decreasing brightness,colors following one by one
Channel 9:
running speed adjustments
