Pixel Configuration:
RGB3in1 SMD2121/3528
Panel Size:
500X500X72mm
Refresh Rate:
>1920Hz
Gray Scale:
>14 Bits
Protection Level:
IP43
Power Supply:
AC 110-220V,50/60Hz
Working Environment:
Temperature-10-+50 Degree,Humidity 10-90%Rh
Life Time:
>50,000 Hours(>70% Luminous Output)
Certificate:
CE,RoHS
Export Markets:
Global
Tube Chip Color:
Full Color
Display Function:
Video Display
Scanning Mode:
1/16 Scan
Application:
Shopping Guide
Pixel Configuration:
1R,1G,1B
IP Rating:
IP43
Certification:
RoHS
System Operating Platform:
WIN XP
Pixel Pitch:
2.9/3.9/4.8/5.2\6.25mm
Pixel Density:
25600-118896 Dots/M²
Product Description
Product Description
Fn Overview:

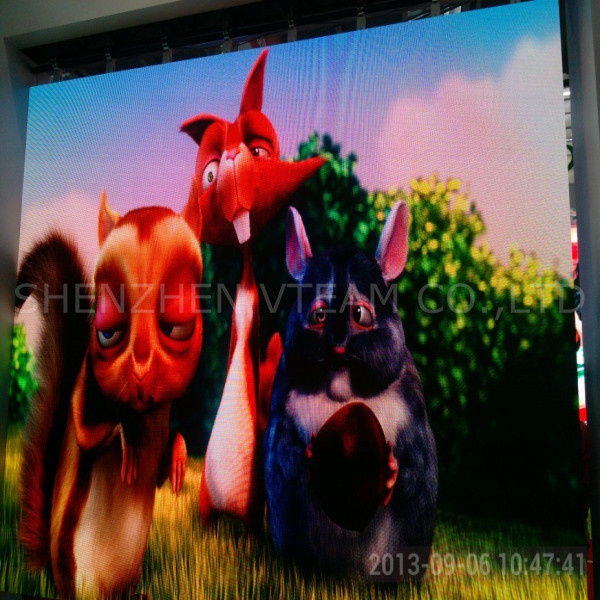

Fn is a high quality product with high definition and soft image. It takes the technology of all die casting aluminum, which is secure and nice in appearance. It's light and each module connected by the special connecting constitution to achieve the fast assembly. Fn is suitably applied in vocal concert, bars, nightclubs, DISCO and supermarket for displaying and advertising use.
Main Features:
1. Die-casting aluminum, secure and nice in constitution.
2. No fans, mute when operation.
3. Dustproof, IP43.
4. High refresh rate and high gray depth.
5. Completely black LED with high contrast.
6. Standard cabinet size is 500mm x 500mm.
7. Large viewing angle, the panel viewing angle is up to 140, the vertical angle could reach 140, the image won't be out of shape and color cast between the rang.
8 Exactly connected and easy to install and dismount.
ITEM
Fn2.9
Fn3.9
Fn4.8
Fn5.2
Fn6.25
Pixel Pitch
2.9mm
3.9mm
4.8mm
5.2mm
6.25mm
LED Type
SMD1514
SMD2121
SMD2724
SMD3528
SMD3528
Pixel Matrix/pcs
172*172
128*128
112*112
96*96
80*80
Pixel density/sqm
118336
65536
50176
36884
25600
Viewing Distance
≥2m
≥3m
≥4m
≥5m
≥6m
Driving Mode
1/16 scan
1/16 scan
1/16 scan
1/16 scan
1/10 scan
Brightness
800 nit
900 nit
900 nit
900 nit
5500 nit
Protection Level
IP43
IP65
Application
Indoor
outdoor
Max power consumption
250W/panel(white balance)
Ave power consumption
125W/panel( normal display)
Weight
7kg/panel
Panel Size
500mm x 500mm x 72mm
LED Configuration
RGB 3in 1,Black
LED Lamp/Chip
Silar or Epistar
Viewing angle
140°(H) X 120°(V)
Gray Scale
≥14BIT
Refresh rate
≥1920Hz
Color temperature
8000K ± 500(Optional)
Colors Space
687 billion
Input Signal
DVI,VGA,HD-SDI,S-video,Composite,YUV,etc
Input Voltage
AC 110V/220V ±10%, 50/60Hz
Power Supply
Meanwell or G-energy with UL certificate
Application
Indoor,rental&fixed
Display Media
Video,graphic,animation,signage,cartoon,text,etc
Control System
Nova,Ydea(showbox),Linsn,PC based dynamic capture & mapping.
System Operating Platform
WINDOW98/2000/XP/7/8
SHENZHEN VTEAM Co., Ltd. is a professional ODM LED Screen manufacturer in Shenzhen, China, specialized in creative indoor and outdoor LED screen with experienced R&D team who has been working in LED display field for more than 8 years.
VTEAM screen is popular with the features of light weight, ultra-thin cabinet, transparent structures and widely-used in the application of TV Station, studios, auto shows, music concerts, clubs, discos, building facade, outdoor decorative lighting projects, exhibitions, celebrations etc.
As one of leaders of LED Screen suppliers in China, All products carry CE RoHS certification, with perfect designed products, customized solution, superior product and service guarantee, VTEAM has been highly praised by domestic and overseas customers, we have been shipping qualified products and services to more than 100 countries and regions all over the world, such as in the USA, Russia, Germany, Sweden, France, Netherland, Spain, Canada, Brazil, Mexico etc. The most notable of those successful projects is that we have done the creative "Giant Football" for the opening&closing ceremony of 2014 Brazil FIFA WORLD CUP!
