Lamp Luminous Flux(Lm):
1400
Lamp Luminous Efficiency(Lm/W):
95
LED Light Source:
4014 SMD LED
CRI(Ra>):
80
Pf>:
0.9
Working Lifetime:
50000 Hours
Working Temperature:
-25-60
Size:
300*300*9.8mm
Beam Angle(°):
150
Brand Name:
Torshare
Light Source:
LED
Appearance:
Square
Type:
Embedded
Certification:
TUV GS
Housing Material:
Acrylic
Voltage:
100-240V
Dimmable:
With Dimmable
Emitting Color:
Pure White/Neutral White/Warm White
Beam Angle:
150
Product Description
Packaging & Delivery
Packaging Detail: Standard export package tested by shaking table.
Delivery Detail: 3-5days fro sample order, 5-12days for buk order.
Specifications

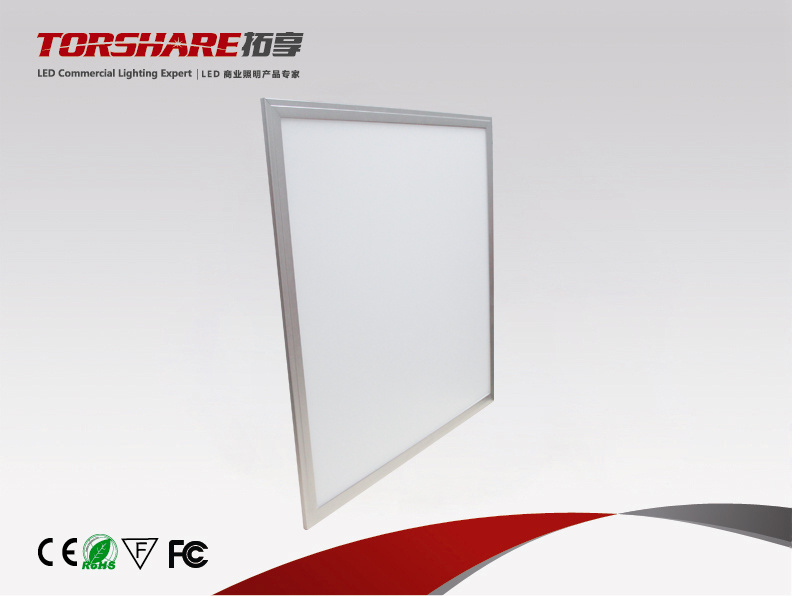

1, led panel light
2, 3 years warranty
3, energy saving 70%
4, UL CE ROHS TUV
Part No.
Size(A*B*C) (mm)
Input Voltage
Power (W)
Luminous Flux (lm)
Illuminance (Lux)
LED quantity
CRI ( Ra )
Beam Angle
PL045
300mm*24mm hole size:290mm
AC100-240 (CE & RoHS)/
AC100-277V
(UL approved)
24W
1620lm±10%
1m:440
112PCS
>80
150
1400lm±10%
2m:116
1200lm±10%
3m:52
TPL300*300
295*295*9.8mm
10W
680lm±10%
1m: 210
48PCS
>80
150°
650lm±10%
2m: 50
620lm±10%
3m: 23
20W
1400lm±10%
1m: 391
96PCS
>80
150°
1350lm±10%
2m: 98
1300lm±10%
3m: 43
TPL600*300
595*295*9.8mm
20W
1400lm±10%
1m: 477
96PCS
>80
150°
1350lm±10%
2m: 119
1300lm±10%
3m: 53
TPL600*600
595*595*9.8mm
36W
2520lm±10%
1m: 1000
192PCS
>80
150°
2450lm±10%
2m: 250
2350lm±10%
3m: 105
50W
3500lm±10%
1m:1185
240PCS
>80
150°
3400lm±10%
2m:280
3200lm±10%
3m:120
TPL1200*300
1195*295*9.8mm
36W
2520lm±10%
1m: 778
192PCS
>80
150°
2450lm±10%
2m:194
3200lm±10%
3m: 86
Founded in 2006, Torshare Ltd. Is one of the biggest manufacturers of LED-related products in China, which is specialized in researching, developing, engineering and marketing of LED products. Occupied by 12, 000 square meters, 200-250 staff, due to good quality and perfect after sales service, Torshare Ltd is enjoying high reputation. It is located in the center of Chinese LED, Shenzhen Shiyan Town, where is about 30 minutes drive from Hong Kong, and 15 minutes drive from Shenzhen Airport, we welcome any group or person to visit our factory.
Our products cover a wide range, such as LED Tube Light, LED downlight, LED spotlight, LED panel light, High power series, LED Sign, Strips, Modules, OEM etc. We are specially proud of our OEM business since we have many professional engineers who have worked in the field of LED for over 10 years. Highly trained workers make sure our products are in 100% good quality. Professional sales follow up with our customers at any time. According to our advantages, we have witnessed our rapid development. Right now, our annual export sales topped $13.5 million in 2010, a 60% increase from the previous year.
We have one set of strict Quality Inspection System. Our 15 QC staff monitor the entire production process to ensure our product quality meets your requirements. We use advanced temperature testers, luminance testers and photoelectric instruments to conduct strict testing such as voltage withstand, shock proof and salt spray tests. All our operations are ISO 9001: 2008-certified. Our qualification rate is above 99.5%. All our products comply with CE standard and the RoHS Directive.
Under the common effort of all staff; We fully believe we will do better and better in the following days.
