| Prod Model: |
UB-1915 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Channel: |
18 Chs |
| Pack: |
Cutton Paper/Flight Case |
| LED Light Source: |
19PCS 15W RGBW 4-in-1 |
| Beam Angle: |
6 Degree |
| IP Rate: |
IP 20 |
| Color: |
RGBW |
| Working Lifetime: |
50000 Hours |
| Working Temperature: |
-25oc - 40 Oc |
| Size: |
300*250*370mm |
| Weight: |
8kg |
| Light Source: |
LED |
| Material: |
Aluminum |
| Emitting Color: |
RGB |
| Control Channel: |
18CH |
| Strobe: |
Adjustable Speed Strobe |
| Control Mode: |
Dmx Signal Control |
| IP Rating: |
IP20 |
| Certification: |
UL |
| Voltage: |
220V |
Product Description

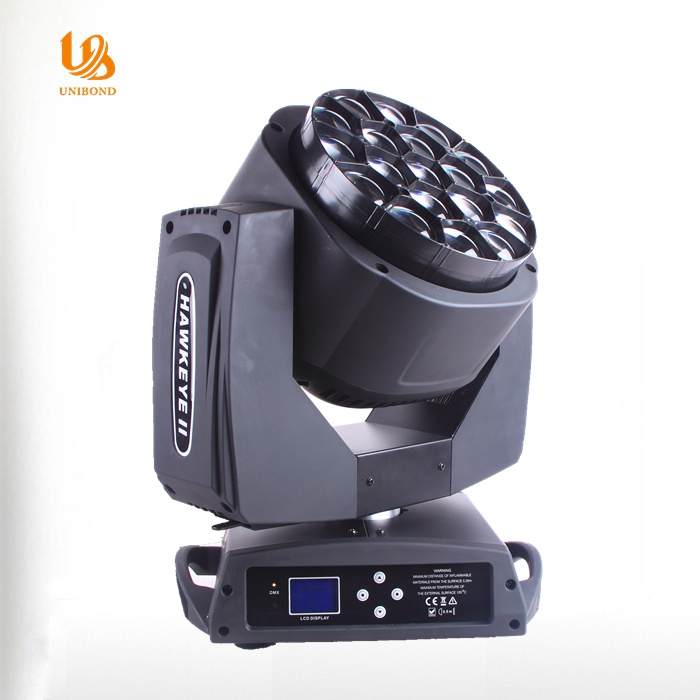

19x15W Bee eye LED Moving Head Light
Specification:
| Itms | UB-1915 |
|
|
| POWER SUPPLIES | 100-240V 50/60Hz |
|
|
| LAMP SOURCE | 19×15W Osram Ostar RGBW LEDs,50,000 h. |
| Color temperature:2500 - 8000 k |
| OPTICS | 4°-60° Electronic Zoom angle |
|
|
| EFFECTS SECTION | Three operating modes: wash, beam, FX (Kaleido effects) |
| Front Lens Bi-directional Rotation |
| Digital Wash-Beam Framing effect |
| Beam edge softening control (in Wash mode) |
| 0-100% linear electronic dimmer |
| Adjustable speed stop/strobe effect, with instantaneous blackout |
| Dedicated channel for color temperature setting |
| RGBW auto-tuning |
|
|
| CONTROL AND PROGRAMMING | DMX512: 3/5-pin XLR IN-OUT sockets |
| Power connect: Powercon in&out |
|
|
| MOVING BODY | Movement by means of two stepper motors, controlled by microprocessor |
| Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit. |
| Display: | LCD display |
|
|
| Travel: | PAN = 540° |
| TILT = 210° |
| Dimession: | 494*358*253 |
| Weight: | 15 Kg |
for more detail ,Welcome to contact us !
